Overview

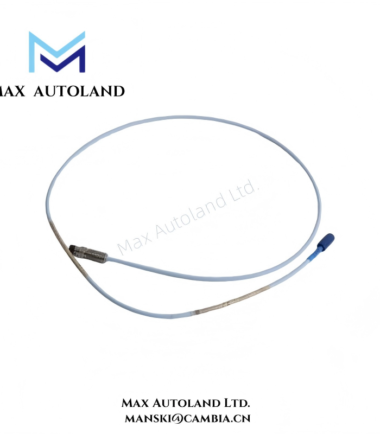

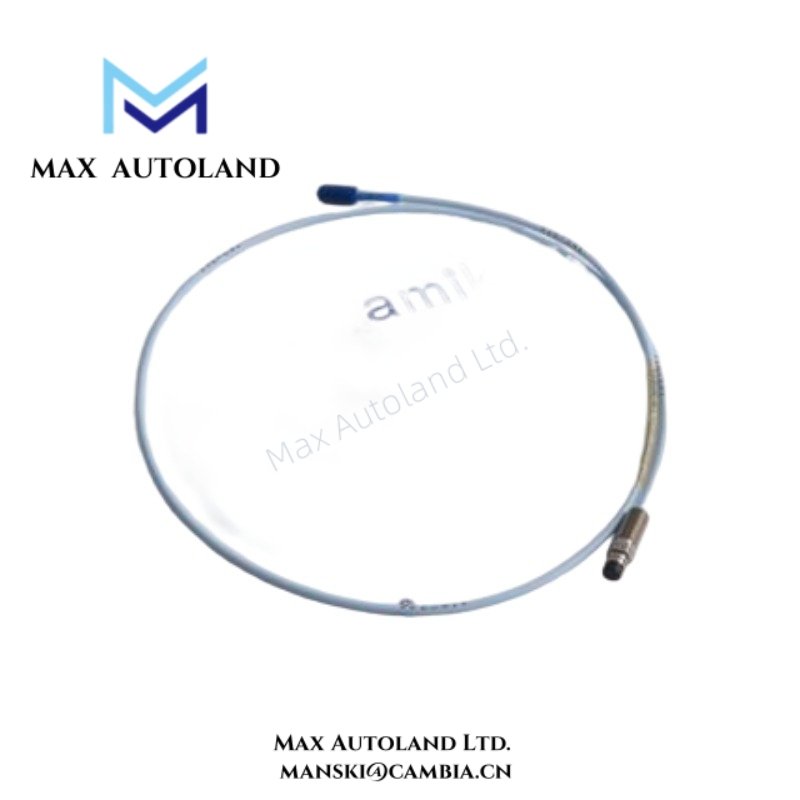

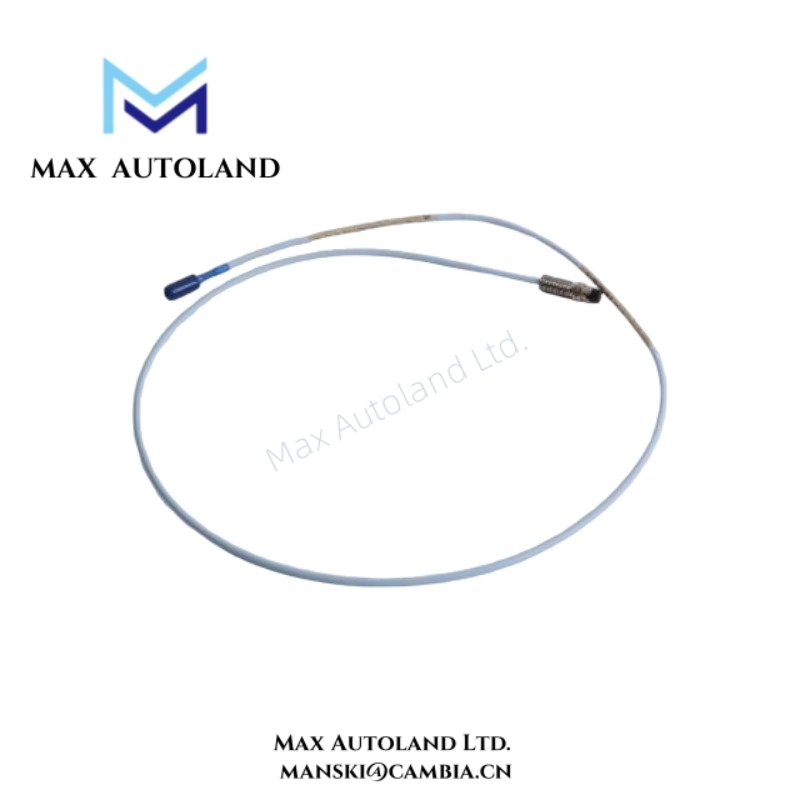

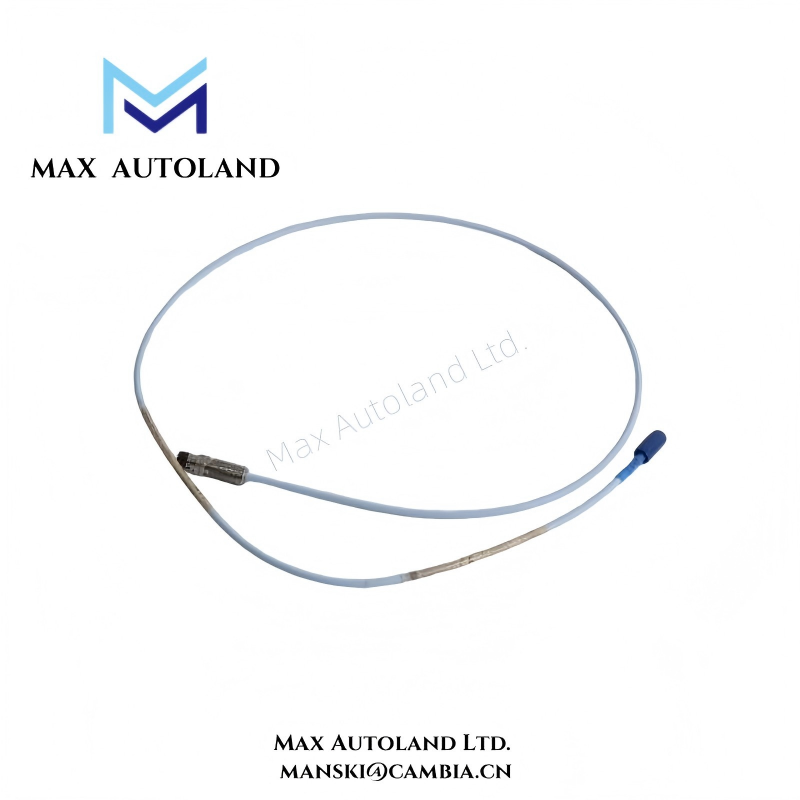

The Bently Nevada 330106-05-30-10-02-00 Reverse Mount Probe is engineered for high-accuracy vibration and shaft position monitoring in rotating machinery applications. As part of the 3300 XL 8 mm Proximity Transducer System, this probe delivers dependable measurement performance for equipment operating in demanding industrial environments.
Its reverse mount design supports installations where conventional mounting methods cannot accommodate equipment geometry or limited access conditions. Moreover, the probe integrates seamlessly with 3300 XL monitoring architectures, helping engineers maintain reliable machinery diagnostics and protection performance.
This configuration commonly supports turbines, compressors, motors, pumps, and other critical assets requiring continuous condition monitoring.
Functional Highlights
- Designed for Bently Nevada 3300 XL 8 mm Proximity Transducer systems
- Reverse mount configuration supports constrained installation environments
- Provides precise shaft vibration and axial position measurements
- Maintains calibrated electrical performance within matched transducer systems
- Supports continuous machinery protection and predictive maintenance programs
- Suitable for demanding industrial monitoring applications
Specifications
| Parameter | Specification |
|---|---|
| Brand | Bently Nevada |
| Model | 330106-05-30-10-02-00 |
| Product Type | Reverse Mount Probe |
| Series | 3300 XL 8 mm Proximity Transducer System |
| Probe Diameter | 8 mm |
| Mounting Style | Reverse Mount |
| Unthreaded Length Code | 05 |
| Total Case Length Code | 30 |
| Cable Length Code | 10 |
| Cable Length | 1.0 m (3.3 ft) |
| Connector Protector Option | 00 |
| Connector Type | Standard ClickLoc™ connector compatible with 3300 XL systems |
| System Compatibility | Bently Nevada 3300 XL 8 mm Proximity Transducer System |
| Measurement Range | Shaft vibration, displacement, and axial position monitoring |
| Electrical Matching | Factory-matched impedance and capacitance characteristics |
| Probe Material Design | Industrial-duty probe assembly for harsh environments |
| Signal Performance | Stable low-noise signal transmission |
| Installation Environment | Rotating machinery monitoring and protection systems |
| Temperature Suitability | Suitable for continuous industrial operating environments |
| Application Equipment | Turbines, compressors, motors, pumps, fans, generators |
| Industry Applications | Oil & Gas, Power Generation, Petrochemical, Mining, Manufacturing |
| Monitoring Functions | Online condition monitoring and machinery protection |
| Maintenance Support | Predictive maintenance and equipment diagnostics |
| Performance Objective | Accurate machine condition analysis and reliable system integration |
FAQ
Q1: What is the function of the Bently Nevada 330106-05-30-10-02-00 reverse mount probe?
A: This probe measures shaft vibration, displacement, and axial position within industrial rotating machinery monitoring systems.
Q2: Why choose a reverse mount probe configuration?
A: Reverse mounting supports equipment designs where standard probe installation remains difficult because of access or geometry limitations.
Q3: Which systems support the 330106-05-30-10-02-00 probe?
A: This probe is designed specifically for Bently Nevada 3300 XL 8 mm Proximity Transducer systems.
Q4: Which industries commonly use this reverse mount probe?
A: Power generation, oil and gas, petrochemical processing, mining, and manufacturing facilities commonly deploy this probe.
Q5: Does this probe support predictive maintenance strategies?
A: Yes. The probe supports online condition monitoring, machinery diagnostics, and predictive maintenance programs.
