Overview
Suffix Breakdown & Model Matrix
The referenced material identifies 330103-00-04-10-01-00 as a fixed configured ordering model. No official suffix segmentation or option matrix is explicitly defined in the supplied source material.
Specifications
| ParameterSpecification | |

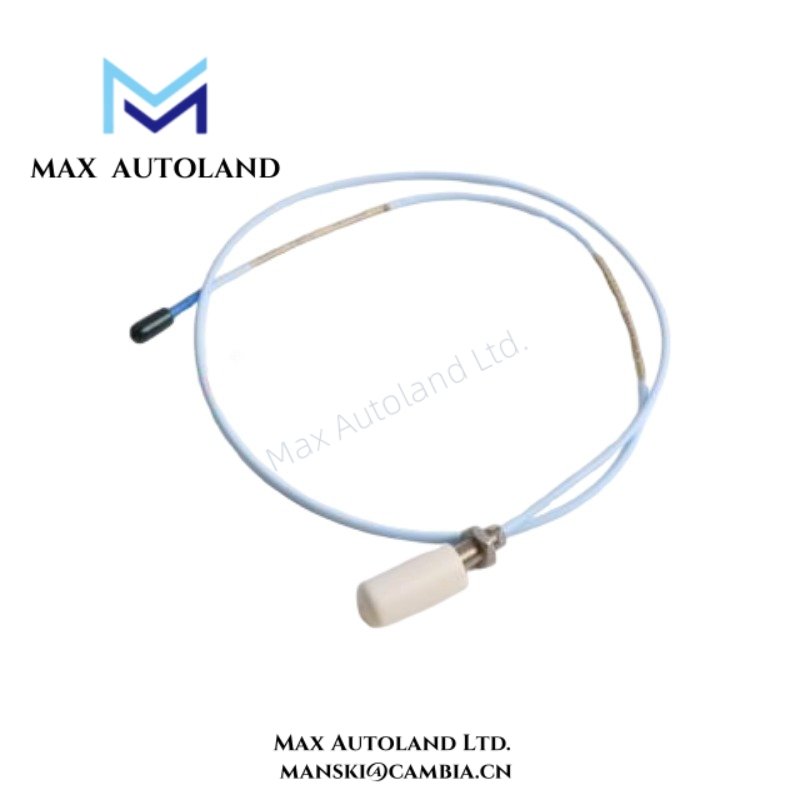

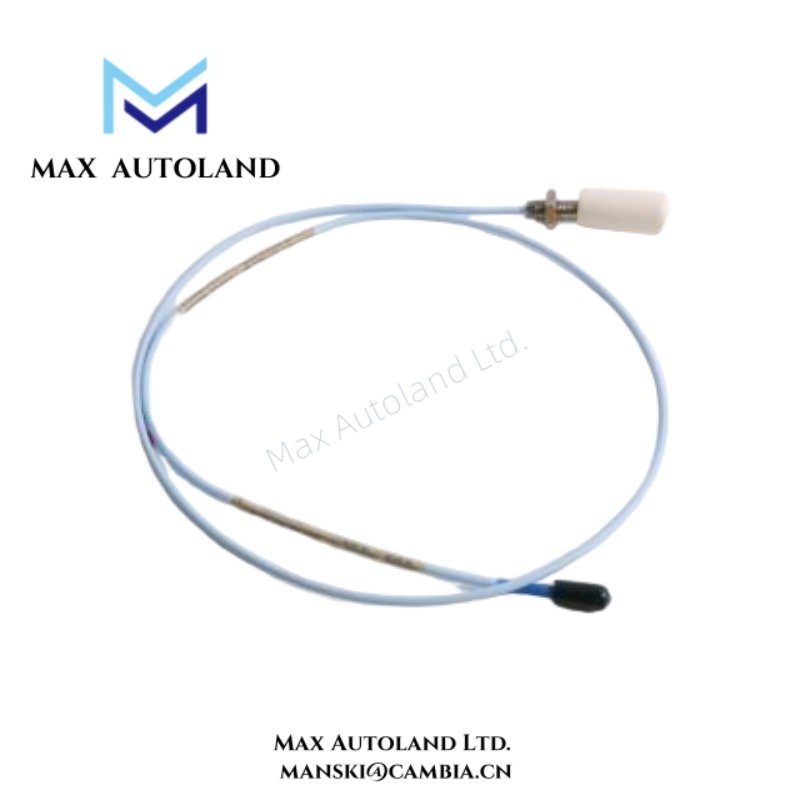

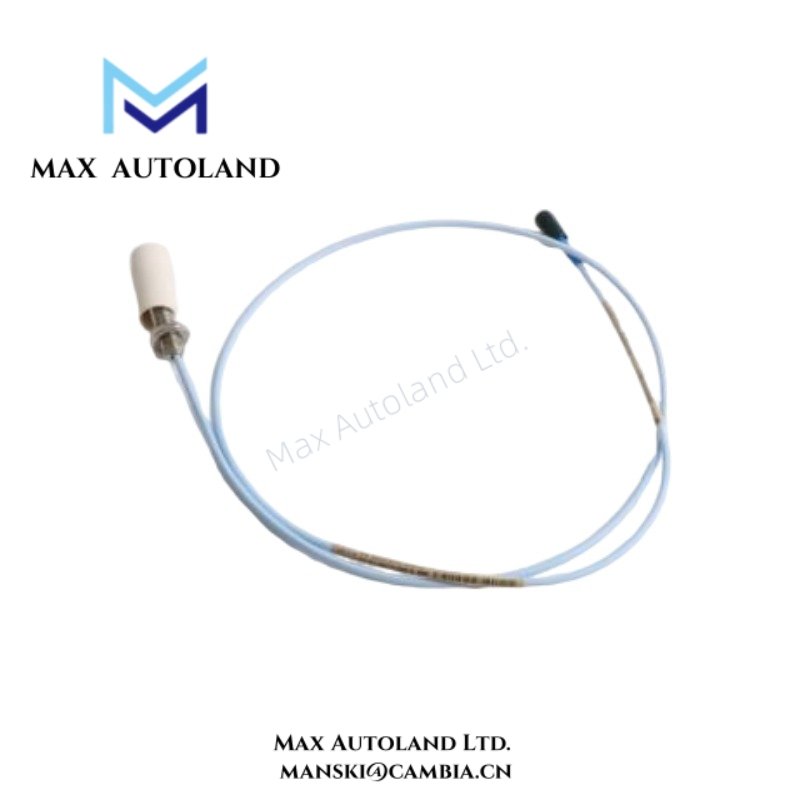

| Model | 330103-00-04-10-01-00 |
| Brand | Bently Nevada |
| Origin | USA |
| Product Type | Proximity Transducers |
| Series | 3300 XL 8 mm |
| Probe Diameter | 8 mm |
| Measurement Principle | Eddy-current non-contact sensing |
| Functional Role | Shaft vibration, position, and displacement monitoring |
| System Compatibility | Bently Nevada 3300 XL transducer systems |
| Target Material | Electrically conductive metallic surfaces |
| Signal Chain Requirement | Matched probe, extension cable, and compatible Proximitor electronics |
| Output Characteristic | Electrical response proportional to target displacement |
| Mounting Style | Threaded mechanical installation |
| Weight | Not explicitly specified |
| Dimensions | Refer to manufacturer dimensional documentation |
| Operating Temp | Refer to official environmental specification |
| Power Consumption | Defined by associated signal conditioning hardware |
Rotor Dynamics and Gap Voltage Validation
The 3300 XL 8 mm proximity transducer functions as a calibrated sensing element within rotor dynamic monitoring loops. To maintain measurement accuracy, users must preserve electrical matching between the probe, extension cable, and driver electronics.
During commissioning, technicians commonly perform gap voltage verification to confirm target spacing and operating status. In most Bently Nevada proximity systems, users check signal behavior against expected negative DC bias regions, including operating conditions near -10 VDC targets. If the bias value shifts outside the expected range, engineers should inspect probe clearance, target material properties, cable selection, and mechanical alignment.
In addition, multi-channel monitoring layouts require disciplined cable management. Proper cable separation, controlled shield grounding, and clean routing practices reduce cross-talk between adjacent vibration measurement channels.
Frequently Asked Questions
Q: Can the probe connect directly to a PLC analog input channel?
A: No. The probe requires compatible signal conditioning electronics to supply excitation and maintain calibrated transducer behavior. A standard PLC analog input does not provide these functions.
Q: Can technicians replace the probe in the field without recalibration?
A: Maintenance personnel can replace the probe according to the installed system configuration. However, after replacement, technicians should verify signal response, gap voltage condition, and matched component compatibility.
Q: Do cable routing practices affect signal stability?
A: Yes. When installers route probe cables near motor feeders, switching devices, or variable-frequency drive conductors, electrical interference can couple into low-level sensing circuits and affect signal quality.
Field Installation Guidelines
Install the probe with rigid mechanical mounting and precise target alignment. Also, maintain the specified clearance between the sensing tip and the conductive target surface according to the configured transducer arrangement.
Next, route probe wiring separately from power distribution conductors, switching circuits, and drive output cables. Apply shield grounding according to the installation standard, and avoid uncontrolled multi-point shield termination. Finally, verify connector integrity, mounting condition, and measured gap voltage response before returning the monitored machine to operation.
