Overview
Hardware Specifications
| Parameter | Specification |
|---|---|

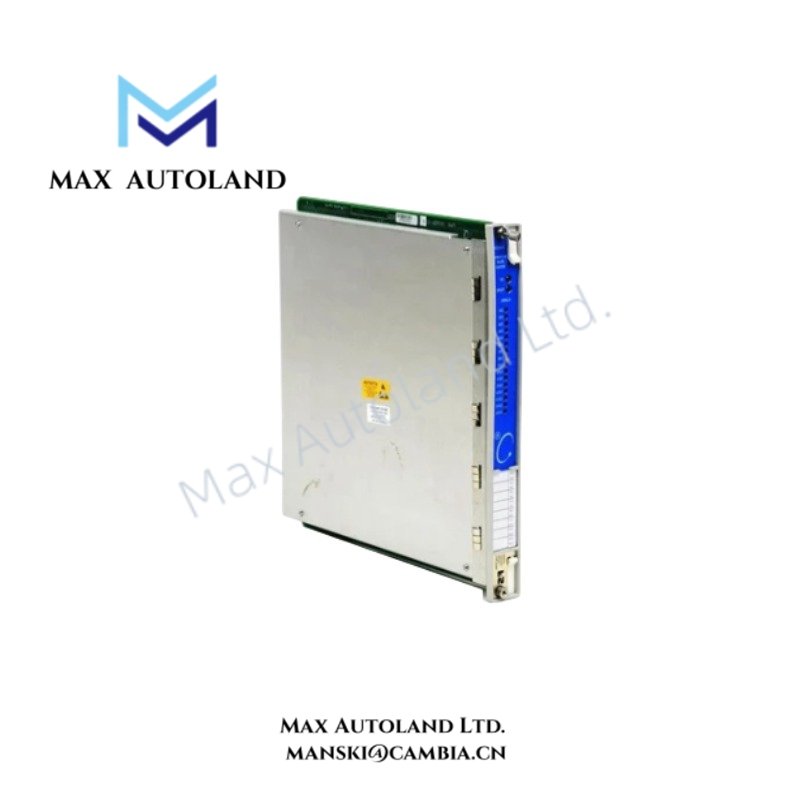

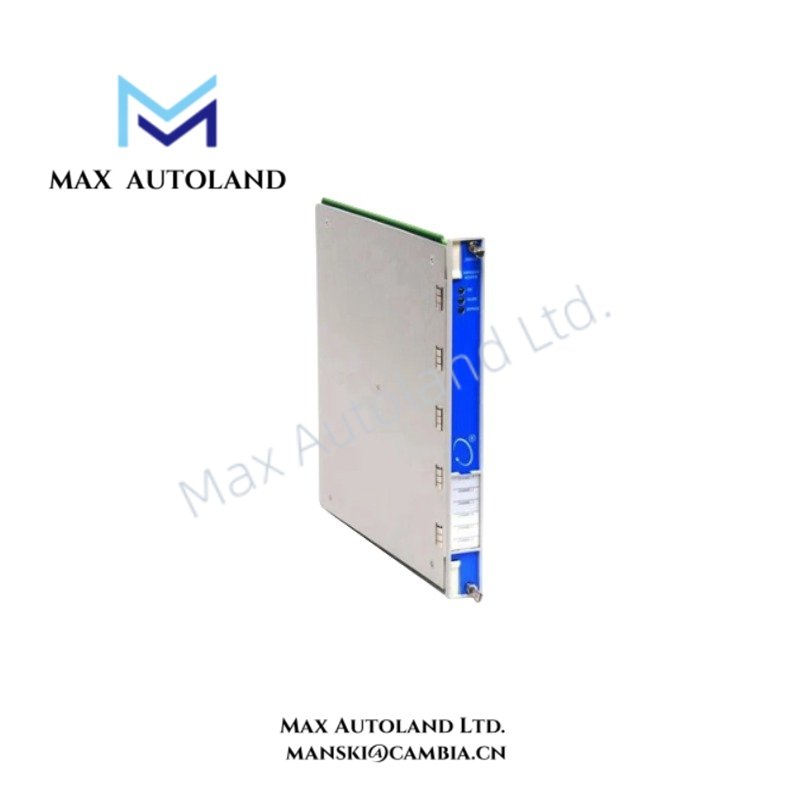

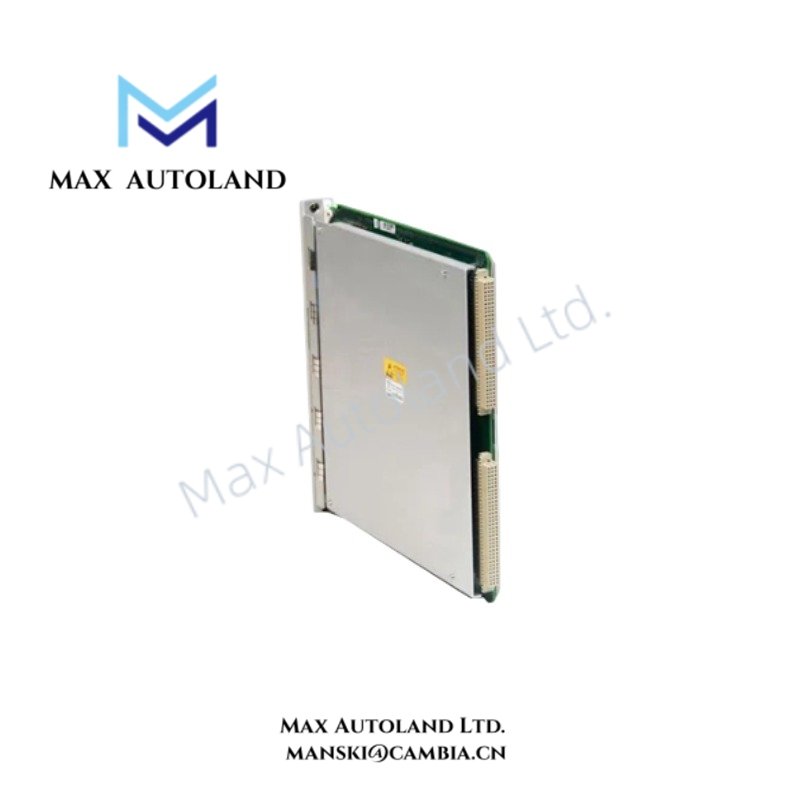

| Model | 136179-01 |
| Brand | Bently Nevada (Baker Hughes) |
| Product Type | 4-Channel Isolated Input Module |
| System Platform | Bently Nevada 3500 Series Machinery Protection System |
| Origin | USA |
| Weight | Approx. 1.36 kg (3 lbs) |
| Dimensions | Rack-mounted module format for 3500 Series racks |
| Operating Temp | Industrial operating environment; specific range depends on installed rack configuration |
| Power Consumption | Supplied through the 3500 rack backplane; exact consumption depends on system loading |
| Input Channels | 4 isolated input channels |
| Isolation Method | Galvanic isolation between input channels and system ground |
| System Isolation Rating | 500 Vdc |
| Channel-to-Channel Isolation | 250 Vdc |
| Installation Method | Direct rack slot installation in compatible 3500 Series chassis |
| Signal Interface | Supports vibration, position, and compatible condition monitoring sensor signals |
Eddy-Current Signal Isolation and Rotor Monitoring
The Bently Nevada 136179-01 module maintains isolated signal paths for machinery protection measurements. Therefore, it reduces ground loop effects and suppresses electrical interference between sensor circuits.
Within 3500 monitoring architectures, isolated input processing supports condition monitoring functions associated with rotor dynamics, shaft position evaluation, and vibration measurement channels. The module design allows engineers to maintain signal integrity when connecting multiple field devices in electrically demanding environments.
Additionally, the isolation structure supports cross-talk suppression between measurement channels, which helps prevent unwanted coupling between adjacent sensor signals. For eddy-current probe applications, engineers can verify probe scaling and gap voltage conditions through the associated 3500 monitoring configuration.
Frequently Asked Questions
Q: Can the 136179-01 module operate in a redundant 3500 rack configuration?
A: The module installs within the 3500 rack architecture. Redundant operation depends on the complete rack configuration, installed modules, and system design requirements.
Q: Does the 136179-01 provide electrical isolation between input channels?
A: Yes. The module provides galvanic isolation between individual input channels and system ground, with channel-to-channel isolation rated at 250 Vdc.
Q: Is the 136179-01 configured as a hot-swappable module?
A: Installation and removal procedures must follow the Bently Nevada 3500 system maintenance guidelines. Hot-swap capability depends on the rack configuration and operational conditions.
Field Installation Guidelines
- Install the 136179-01 module only in compatible Bently Nevada 3500 Series racks.
- Confirm rack power removal procedures before physical module installation or removal.
- Verify sensor wiring polarity and terminal assignments before connecting field signals.
- Maintain proper cable separation between sensor wiring and high-voltage power conductors.
- Apply correct shield grounding practices to minimize electromagnetic interference.
- Confirm input channel configuration through the 3500 system software before placing machinery protection functions into service.
- Inspect backplane connectors and module seating during installation to ensure proper mechanical engagement.
