Overview
Moreover, the 126648-01 module integrates seamlessly with 3500 rack backplanes. This integration minimizes installation complexity and reduces rewiring requirements. In addition, it supports flexible configuration for diverse monitoring applications.
Specification
| Specification | Details |
|---|---|

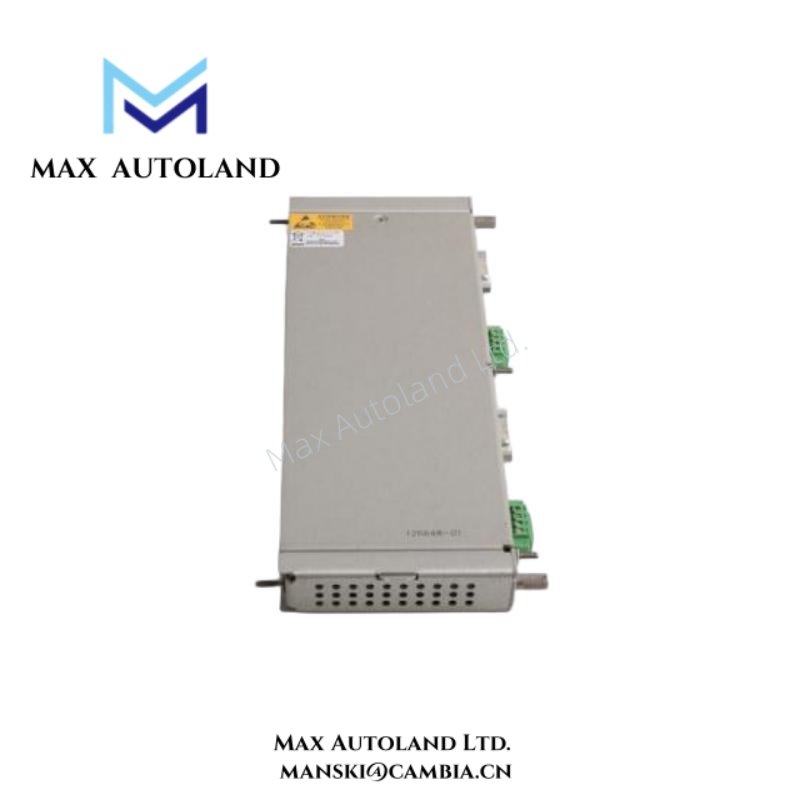

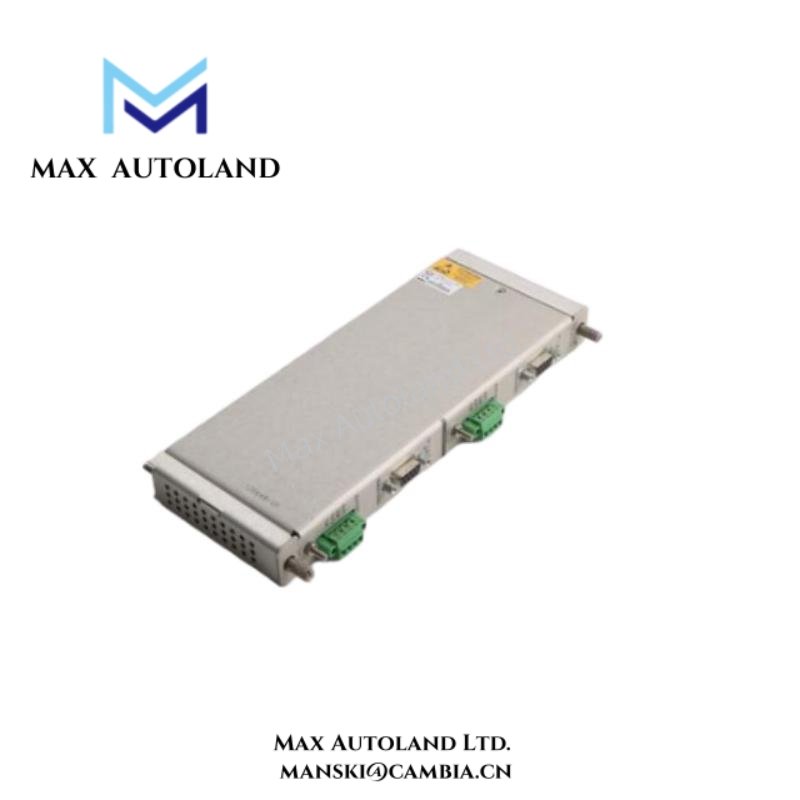

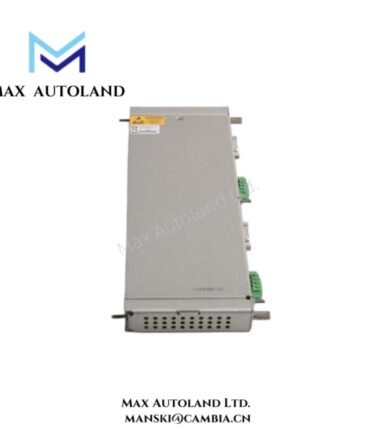

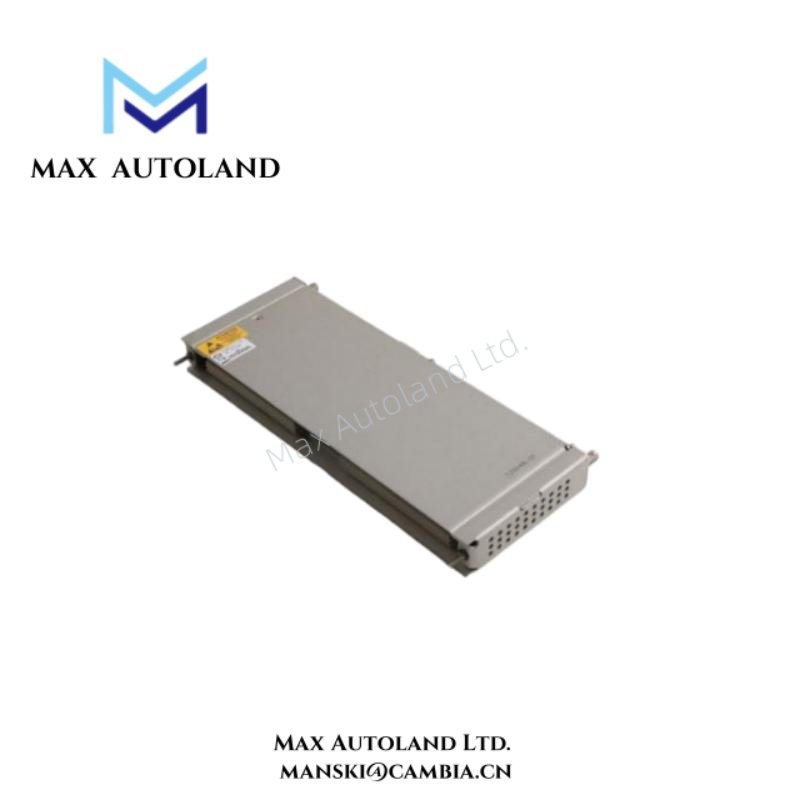

| Model | 126648-01 |
| Manufacturer | Bently Nevada |
| Module Type | Keyphasor I/O Module |
| Series | 3500 Machinery Protection Series |
| Compatible System | Bently Nevada 3500 Rack-Mounted Machinery Protection System |
| Signal Inputs | Proximity transducers, speed sensors |
| Input Channels | 4 Keyphasor channels (standard) |
| Output Signals | TTL logic level pulses for each channel |
| Interface | 3500 rack backplane |
| Rack Slots Required | 1 slot |
| Power Supply | Supplied by 3500 rack; nominal 24 V DC |
| Maximum Current Consumption | 120 mA typical per module |
| Isolation | Full channel-to-channel isolation with integrated surge protection |
| Frequency Response | 0.5 Hz – 10 kHz |
| Timing Accuracy | ±0.01° electrical phase |
| Response Time | <1 ms typical |
| Dimensions | 1.75 in H × 5.25 in W × 8 in D (44.45 mm × 133.35 mm × 203.2 mm) |
| Weight | Approx. 1.2 lb (0.54 kg) |
| Mounting | Standard 3500 rack-mounted module |
| Operating Temperature | 0°C to 70°C (32°F to 158°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity | 5% to 95% non-condensing |
| Vibration Tolerance | 5 g RMS, 10–500 Hz |
| Shock Resistance | 30 g, 11 ms half-sine pulse |
| Energy Storage / Protection | Internal capacitors for transient suppression and signal integrity |
| Compliance / Certifications | CE, RoHS |
| Diagnostics | LED status indicators for channel health and signal presence |
FAQ
A1: Yes, the 126648-01 module is full original from Bently Nevada.
Q2: How quickly can you ship this module?
A2: We have stock, and typical delivery occurs within 3 days to 2 weeks depending on order size.
Q3: Which shipping methods are used?
A3: We commonly use DHL and other reliable logistics providers.
Q4: Can the module handle high industrial temperatures?
A4: Yes, it operates efficiently between 0°C and 70°C (32°F to 158°F).
Q5: Is a return policy available if there is a quality issue?
A5: Yes, we support returns within 30 days for quality-related issues.
Reviews
There are no reviews yet.
