Overview
Moreover, it ensures stable signal transmission between proximity probes and monitoring modules in critical rotating machinery applications.
In addition, it delivers strong electrical integrity under high vibration and electrically noisy industrial environments.
Therefore, it plays a key role in protecting turbines, compressors, and other rotating equipment assets.
Functional Highlights / Key Benefits
This extension cable improves signal reliability across long-distance probe installations in industrial monitoring systems.
Moreover, its shielded construction reduces electromagnetic interference and preserves signal clarity under harsh conditions.
In addition, the connector interface ensures consistent mating performance with 3300 XL system components.
Furthermore, it enhances predictive maintenance accuracy by maintaining stable vibration signal quality continuously.
Specifications
| Parameter | Description |
|---|---|

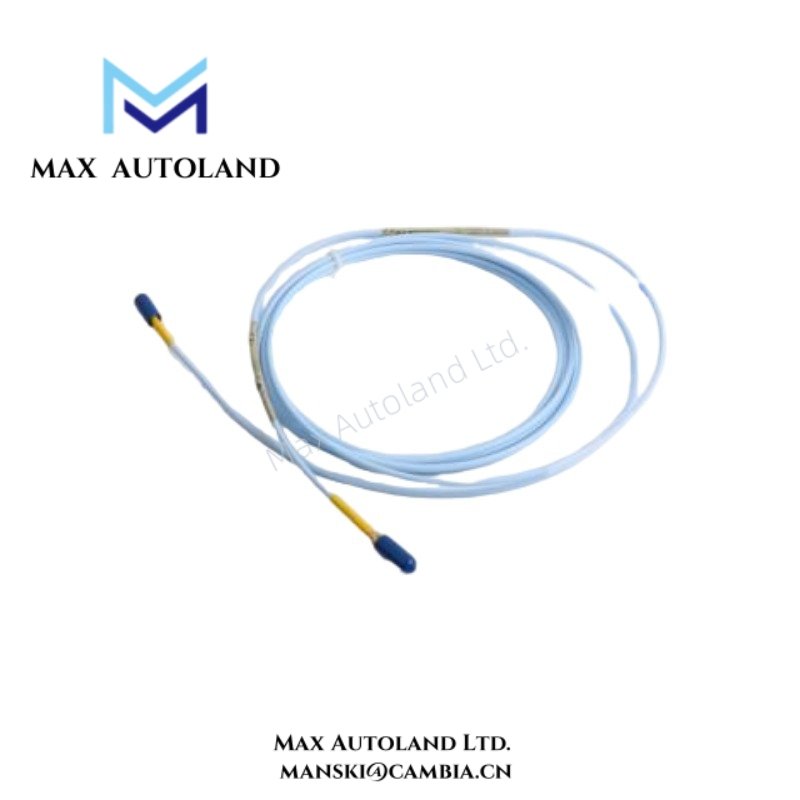

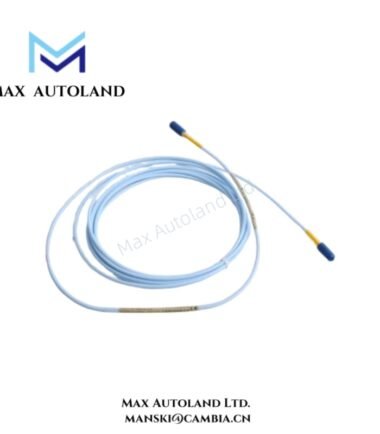

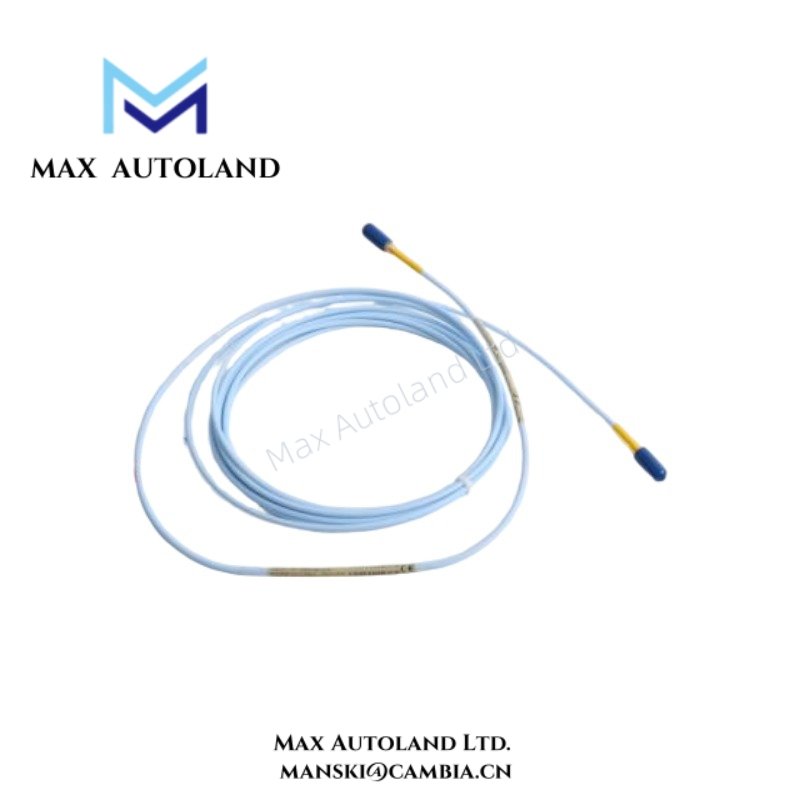

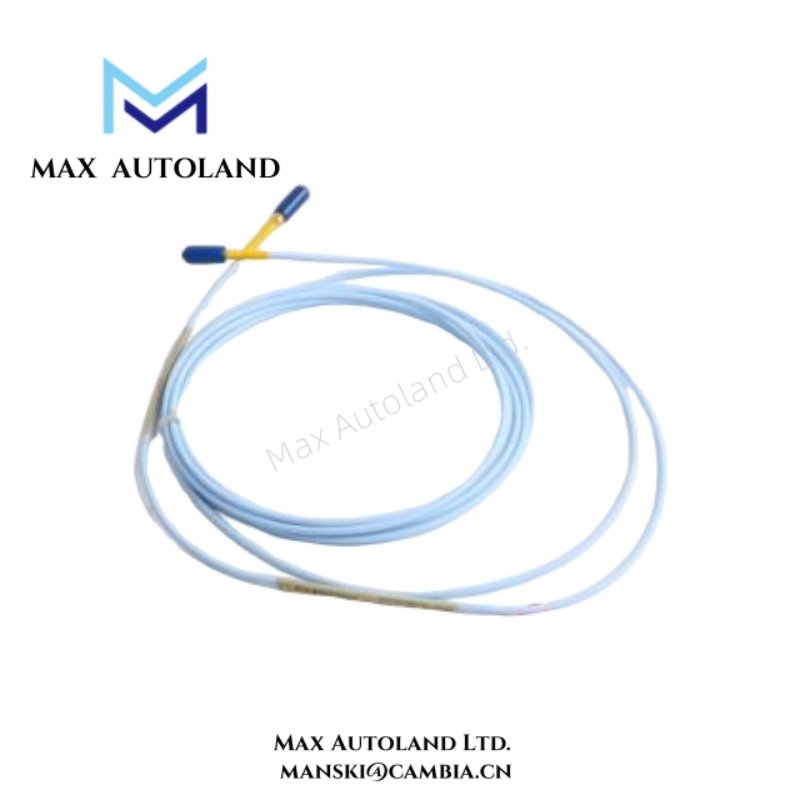

| Part Number | 330854-040-24-00 |
| Product Type | Extension Cable Assembly |
| System Compatibility | 3300 XL 8 mm Proximity Transducer System |
| Manufacturer | Bently Nevada (GE / Baker Hughes) |
| Cable Length | 4.0 meters (nominal configuration) |
| Cable Construction | Multi-layer industrial shielded cable |
| Signal Type | Low-level vibration and displacement signal transmission |
| Shielding Type | High-density braided EMI/RFI shielding |
| Insulation Material | Oil-resistant industrial-grade polymer jacket |
| Temperature Range | Industrial-rated for turbine and plant environments |
| Operating Environment | High vibration, high EMI industrial machinery areas |
| Connector Type (Probe Side) | Precision 3300 XL proximity system connector |
| Connector Type (System Side) | Matching Bently Nevada monitoring system connector |
| Electrical Protection | Enhanced noise immunity through grounded shielding design |
| Application Standard | Designed for critical rotating machinery monitoring systems |
| Installation Orientation | Flexible routing with vibration-resistant design |
| Maintenance Requirement | Low maintenance, periodic inspection recommended |
| Service Life Expectancy | Long-term industrial operational lifecycle design |
| Primary Function | Reliable signal transmission between probe and monitor module |
| Typical Integration | Turbines, compressors, pumps, generators |
| System Role | Extends proximity probe connection distance without signal degradation |
FAQ
Q1: What is the main purpose of the 330854-040-24-00 extension cable?
A1: It extends the connection between proximity probes and monitoring modules reliably in 3300 XL systems.
Q2: Which system is this extension cable compatible with?
A2: It is fully compatible with the Bently Nevada 3300 XL 8 mm proximity transducer system.
Q3: Can this cable be used in high-vibration environments?
A3: Yes, it is designed for turbines, compressors, and other rotating machinery with strong vibration conditions.
Q4: How does this cable improve signal quality?
A4: It uses high-density shielding to reduce EMI and maintain stable low-noise signal transmission.
Q5: What industries commonly use this extension cable?
A5: It is widely used in power generation, oil and gas, petrochemical, and heavy industrial plants.
Q6: Does the cable require frequent maintenance?
A6: No, it requires minimal maintenance, although periodic inspection ensures long-term monitoring reliability.
