Overview

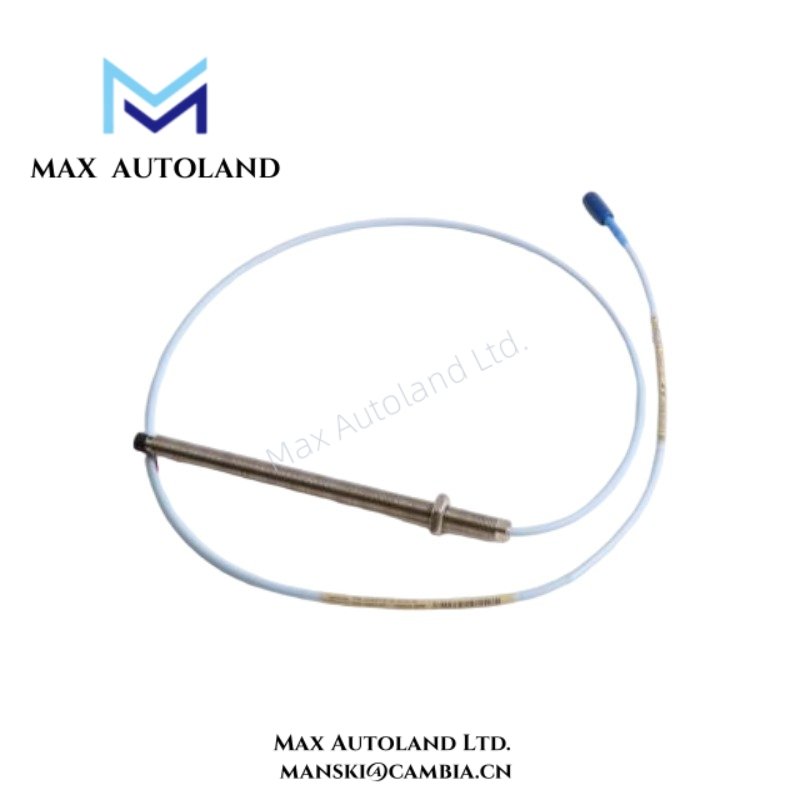

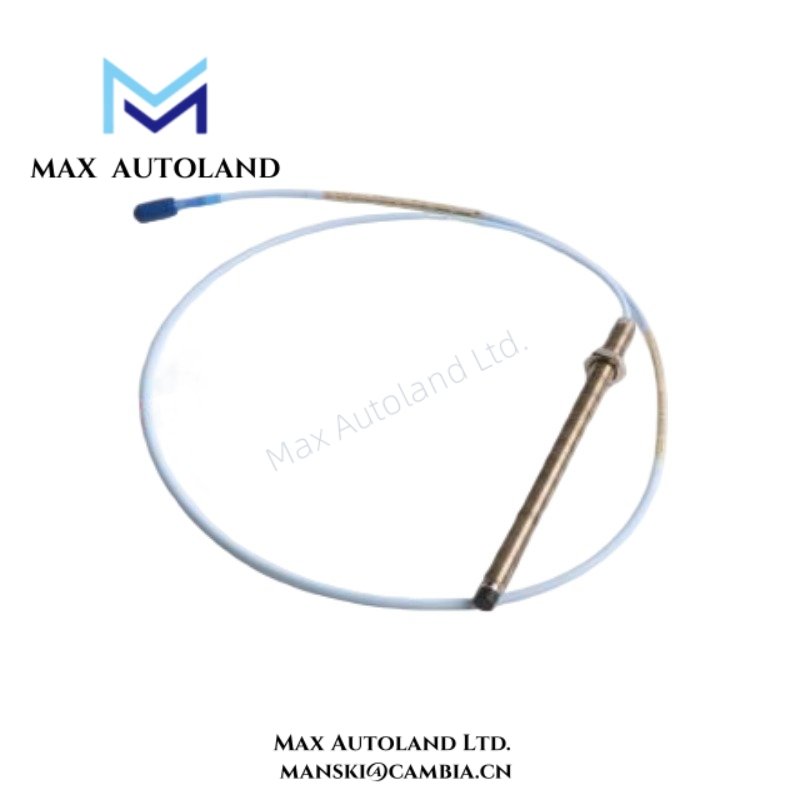

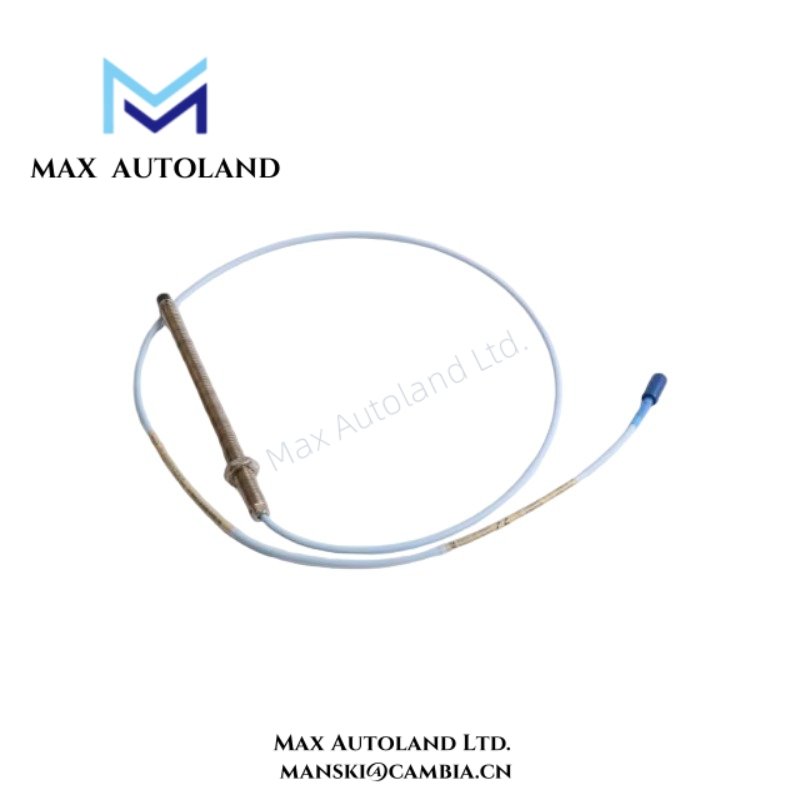

The Bently Nevada 330103-00-16-10-02-05 3300 XL 8 mm Proximity Transducer Probe provides precise shaft vibration and displacement monitoring for critical rotating machinery applications. Industrial engineers frequently deploy this probe in machinery protection systems requiring stable measurement accuracy and long-term operational reliability.
The 3300 XL series integrates advanced eddy current sensing technology with rugged industrial-grade construction designed for harsh operating environments. Moreover, the probe ensures seamless compatibility with Bently Nevada monitoring systems widely used across power generation, petrochemical, and heavy industrial sectors.
This proximity transducer measures shaft movement without physical contact during machine operation, improving measurement consistency and reducing mechanical wear. Therefore, maintenance teams can detect imbalance, misalignment, bearing degradation, and rotor instability before severe equipment failure develops.
Bently Nevada engineered the 3300 XL platform for stable electrical performance under high-vibration and temperature-stressed industrial conditions. In addition, the corrosion-resistant probe construction supports long service life in continuous operation environments.
Condition monitoring specialists commonly install this probe within predictive maintenance systems focused on rotating equipment reliability optimization. For instance, turbine and compressor protection systems frequently depend on the 3300 XL series for accurate vibration diagnostics.
Functional Highlights
- Non-contact eddy current proximity sensing technology
- High-precision shaft vibration and displacement monitoring
- Compatible with Bently Nevada 3300 XL system architecture
- Rugged stainless-steel probe construction for industrial use
- Stable signal performance during continuous operation cycles
- Excellent resistance against oil, dust, vibration, and moisture
- Flexible installation for rotating machinery monitoring systems
- Supports predictive maintenance and machinery protection programs
- Reliable operation in harsh industrial environments
Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Product Model | 330103-00-16-10-02-05 |
| Product Type | 3300 XL 8 mm Proximity Transducer Probe |
| Series | 3300 XL Series |
| Probe Diameter | 8 mm |
| Measurement Technology | Eddy Current Proximity Sensing |
| Probe Thread Type | 3/8-24 UNF |
| Connector Type | Miniature ClickLoc Connector |
| System Length | 1.0 Meter System Configuration |
| Probe Cable Length | 16.0 Feet |
| Probe Material | Corrosion-resistant stainless steel |
| Mounting Method | Non-contact threaded installation |
| Monitoring Functions | Shaft vibration and axial position measurement |
| System Compatibility | Bently Nevada 3300 XL Proximitor Sensors |
| Cable Construction | Industrial-grade coaxial cable |
| Environmental Resistance | Resistant to oil, dust, vibration, and moisture |
| Operating Environment | Industrial rotating machinery monitoring |
| Typical Equipment | Turbines, compressors, pumps, motors, generators |
| Installation Location | Bearing housings and machine casings |
| Signal Stability | Long-term industrial monitoring performance |
| Maintenance Requirement | Low-maintenance industrial sensor design |
| Industry Applications | Power generation, oil and gas, petrochemical |
| System Usage | Predictive maintenance and machinery protection systems |
FAQ
Q1: What does the 330103-00-16-10-02-05 probe measure?
A1: The probe measures shaft vibration, displacement, and axial position using non-contact eddy current sensing technology.
Q2: Which systems support this Bently Nevada probe?
A2: The probe operates with compatible Bently Nevada 3300 XL extension cables and Proximitor sensors.
Q3: Where is this probe commonly installed?
A3: Engineers typically install it in turbines, compressors, motors, generators, and centrifugal pump systems.
Q4: Why is non-contact vibration monitoring important?
A4: Non-contact measurement improves reliability and prevents sensor wear during continuous machine operation.
Q5: Can this probe support predictive maintenance applications?
A5: Yes, it provides continuous condition data for fault detection and maintenance optimization strategies.
