Overview

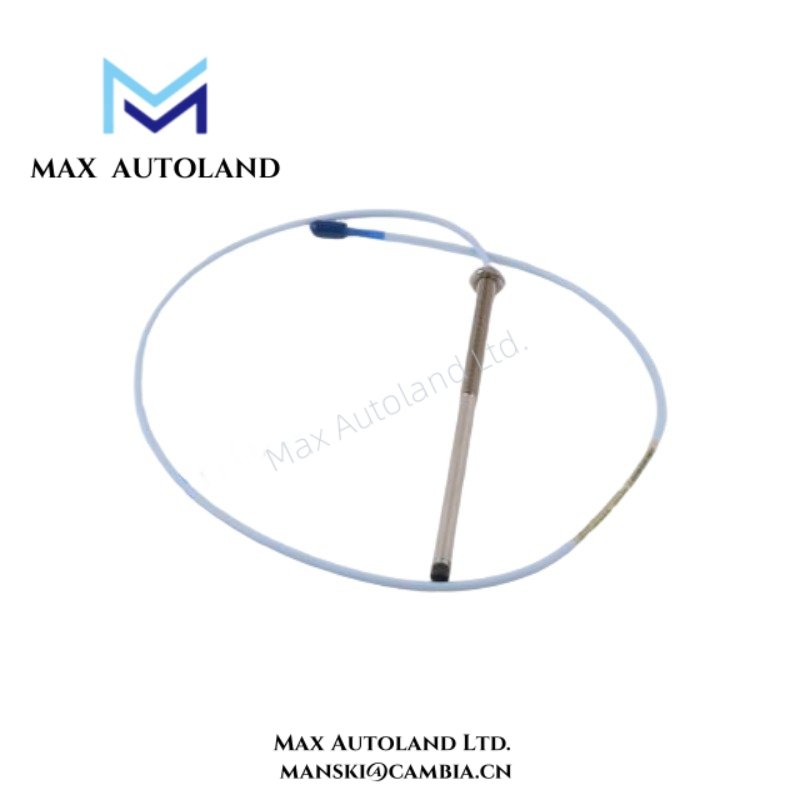

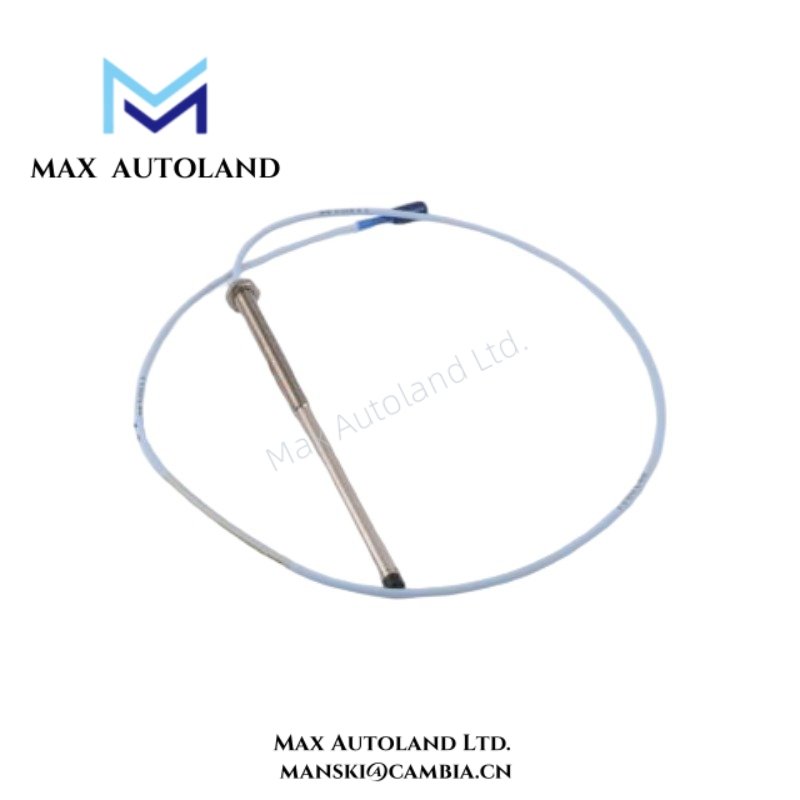

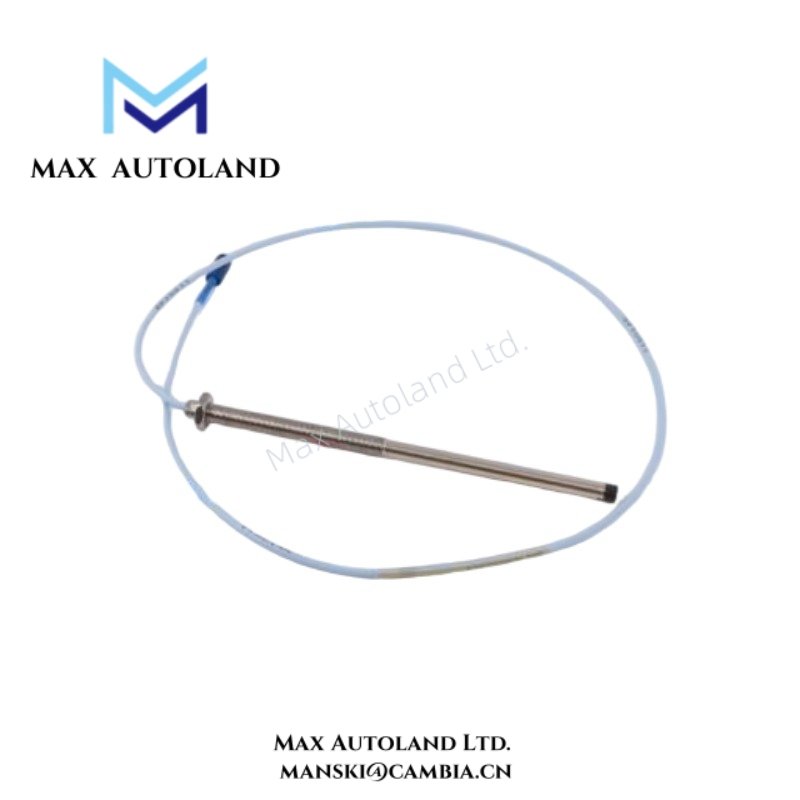

The Bently Nevada 330103-03-09-10-02-00 3300 XL 8 mm Proximity Transducer Probe provides accurate shaft vibration and displacement monitoring for critical rotating machinery systems. Industrial maintenance engineers frequently select this probe for continuous machinery protection applications requiring dependable signal stability and long-term operational reliability.
The 3300 XL series combines advanced eddy current sensing technology with rugged industrial-grade mechanical construction suitable for harsh operating environments. Moreover, the probe integrates seamlessly with Bently Nevada monitoring systems used throughout power generation, petrochemical, and manufacturing industries.
This proximity transducer measures shaft movement without physical contact during machine operation, improving monitoring accuracy and operational consistency. Therefore, maintenance teams can identify imbalance, rotor instability, bearing wear, and shaft misalignment before severe equipment failures occur.
Bently Nevada engineered the 3300 XL platform for stable electrical performance under continuous vibration-intensive industrial conditions. In addition, the corrosion-resistant probe assembly supports long operational service life within demanding production environments.
Condition monitoring specialists commonly deploy this probe within predictive maintenance programs supporting rotating equipment reliability improvement strategies. For instance, turbine and compressor protection systems frequently depend on the 3300 XL series for accurate vibration diagnostics.
Functional Highlights
- Non-contact eddy current proximity sensing technology
- Accurate shaft vibration and displacement measurement
- Compatible with Bently Nevada 3300 XL systems
- Rugged stainless-steel industrial probe construction
- Stable monitoring performance during continuous operation
- Excellent resistance against industrial contamination
- Flexible installation for rotating machinery applications
- Supports predictive maintenance and machinery protection programs
- Reliable operation within harsh industrial environments
Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Product Model | 330103-03-09-10-02-00 |
| Product Type | 3300 XL 8 mm Proximity Transducer Probe |
| Series | 3300 XL Series |
| Probe Diameter | 8 mm |
| Measurement Principle | Eddy Current Proximity Sensing |
| Probe Thread Type | 3/8-24 UNF |
| Connector Type | Miniature ClickLoc Connector |
| Total System Length | 1.0 Meter System Configuration |
| Probe Cable Length | 9.0 Feet |
| Probe Material | Corrosion-resistant stainless steel |
| Mounting Method | Non-contact threaded installation |
| Monitoring Functions | Shaft vibration and axial position measurement |
| System Compatibility | Bently Nevada 3300 XL Proximitor Sensors |
| Cable Construction | Industrial-grade coaxial cable |
| Environmental Resistance | Resistant to oil, vibration, dust, and moisture |
| Operating Environment | Industrial rotating machinery monitoring |
| Typical Equipment | Turbines, compressors, motors, generators, pumps |
| Installation Location | Bearing housings and machinery casings |
| Signal Stability | Long-term industrial monitoring performance |
| Maintenance Requirement | Low-maintenance industrial sensor configuration |
| Industry Applications | Power generation, oil and gas, petrochemical industries |
| System Usage | Predictive maintenance and machine protection systems |
FAQ
Q1: What does the 330103-03-09-10-02-00 probe measure?
A1: The probe measures shaft vibration, displacement, and axial position using non-contact eddy current sensing technology.
Q2: Which systems support this Bently Nevada proximity probe?
A2: The probe operates with compatible Bently Nevada 3300 XL extension cables and Proximitor sensor systems.
Q3: Where do engineers commonly install this probe?
A3: Engineers typically install the probe in turbines, compressors, motors, generators, and centrifugal pump systems.
Q4: Why is non-contact vibration monitoring beneficial?
A4: Non-contact monitoring improves measurement reliability while preventing physical sensor wear during machine operation.
Q5: Can this probe support predictive maintenance applications?
A5: Yes. The probe provides continuous machinery condition data supporting maintenance optimization and fault diagnostics programs.
