Overview

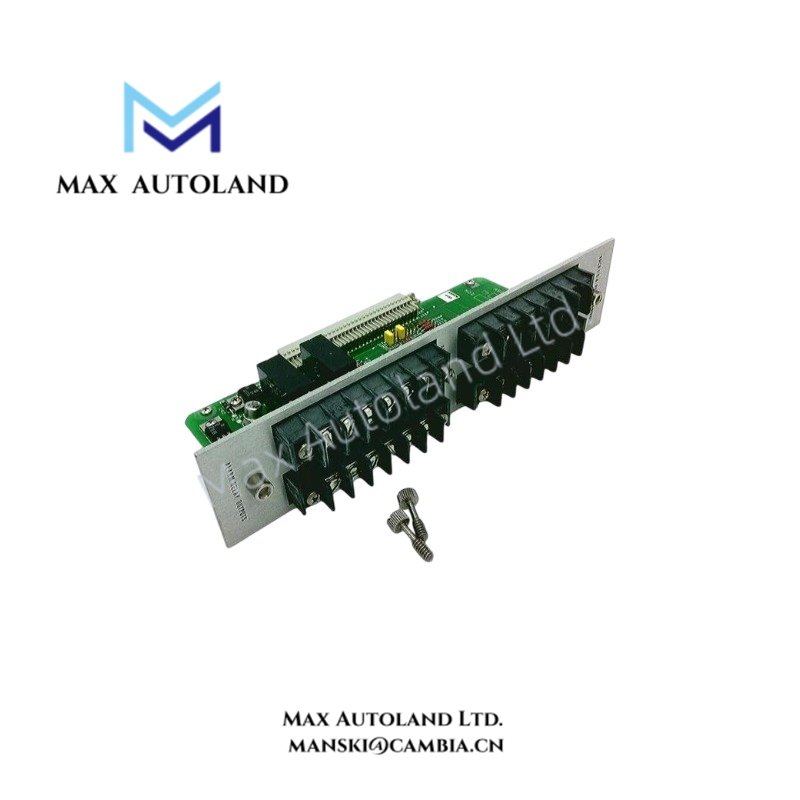

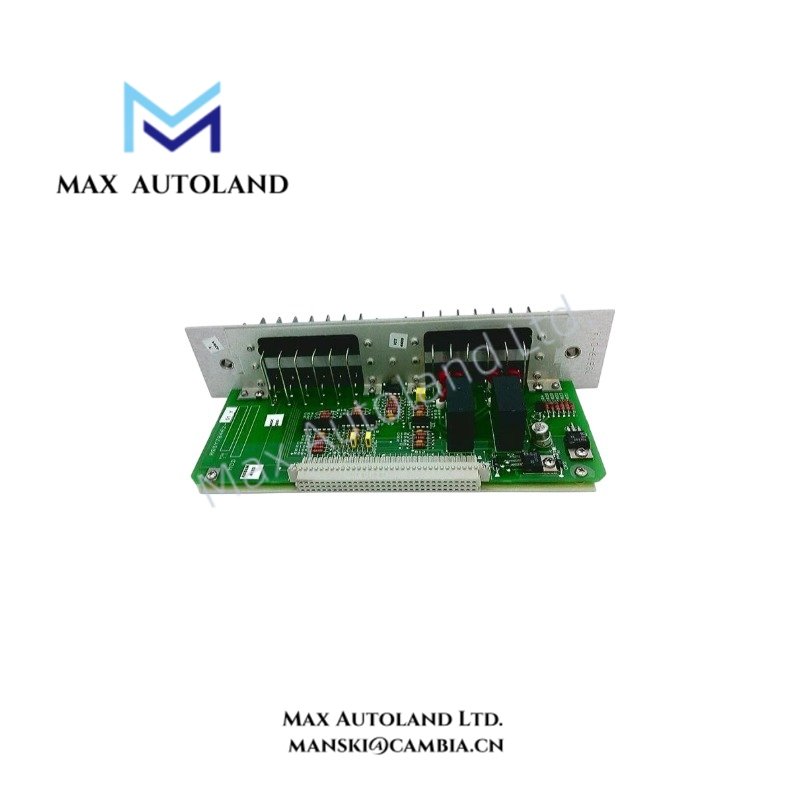

Configured for machinery condition monitoring in the 3300 System, the Bently Nevada ASSY78462-01 84145-01 (ASSY78462-01 84145-01 Machinery Monitoring Component) provides rack-mounted signal processing and alarm monitoring for connected condition-monitoring transducers. The supplied data specifies two monitoring channels, Alert and Danger alarm levels, front-panel buffered transducer output, and rack configuration through system software.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | ASSY78462-01 84145-01 |
| Brand | Bently Nevada |
| Product Family | 3300 System |
| Component Type | Machinery Monitoring Component |
| Channel Capacity | 2 channels |
| Rack Space | One full-height slot |
| Backplane Supply | 3500/3300 rack power, as supplied |
| Input Type | Condition-monitoring transducer |
| Alarm Levels | Alert and Danger |
| Status LEDs | OK, TX/RX, Bypass |
| Buffered Output | Front-panel transducer signal |
| Configuration | Rack configuration software |
| Relay Logic | Programmable alarm voting |
Machinery Monitoring and Transducer Signal Handling
The module receives signals from connected condition-monitoring transducers and processes the input for machinery monitoring functions. The supplied specification identifies two monitoring channels and a front-panel buffered transducer signal output.
For systems using eddy-current proximity probes, installation personnel should verify the applicable probe scaling, transducer type, and signal range against the installed 3300 System configuration. Do not apply a specific probe gap-voltage target or scaling factor unless the associated transducer documentation defines it.
The module provides OK, TX/RX, and Bypass status indication. These indicators support local identification of module status and communication activity during commissioning and maintenance.
The supplied data also identifies Alert and Danger alarm levels with programmable alarm voting. Therefore, technicians should verify the configured alarm logic against the machinery protection scheme before placing the monitoring channel into service.
Frequently Asked Questions
Q: How many monitoring channels does the ASSY78462-01 84145-01 provide?
A: The supplied specification identifies a 2-channel monitoring capacity.
Q: Does the module provide a buffered transducer signal output?
A: Yes. The supplied data specifies a front-panel buffered output for the transducer signal.
Q: What status indicators are provided on the module?
A: The supplied data identifies OK, TX/RX, and Bypass indicators.
Field Installation Guidelines
- Confirm the complete ASSY78462-01 84145-01 article identity before installation. Do not substitute a visually similar module without confirming its part number and system compatibility.
- Verify the intended rack position and available full-height slot before insertion. Confirm that the installed rack and backplane correspond to the documented 3300 System configuration.
- Confirm the connected condition-monitoring transducer type before applying power or connecting signal wiring. Verify probe scaling and signal characteristics from the applicable transducer documentation.
- Route transducer signal wiring separately from high-current power conductors and other high-noise circuits. Maintain appropriate physical separation according to the site wiring standard.
- Terminate cable shields according to the approved system grounding design. Avoid creating unintended ground loops through multiple shield termination points.
- Before enabling alarm outputs, verify the Alert and Danger thresholds and the programmed relay voting logic against the approved machinery protection configuration.
- Check the OK, TX/RX, and Bypass indications after installation. Investigate abnormal status indications before placing the monitoring channel into operational service.
- Complete commissioning with the applicable rack configuration software and system documentation. Record the installed module identity, channel assignments, transducer configuration, alarm settings, and commissioning results.
