Overview

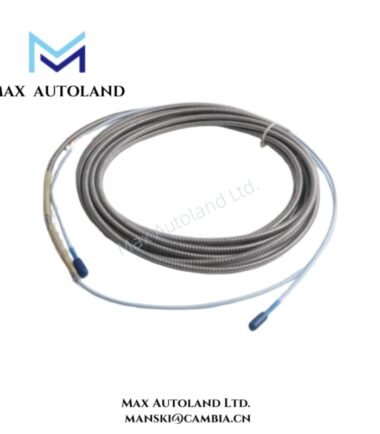

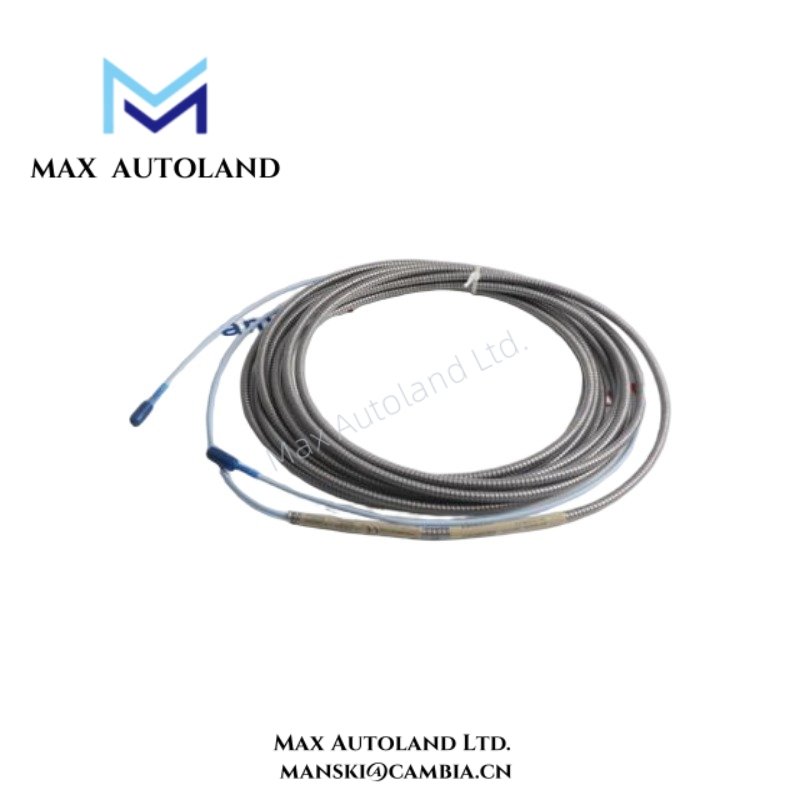

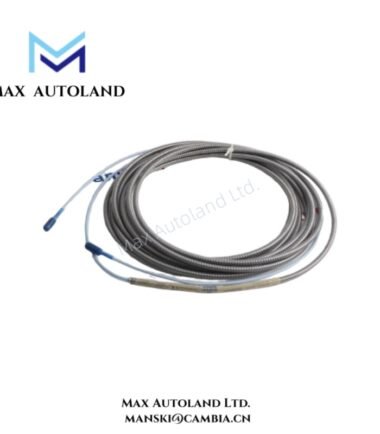

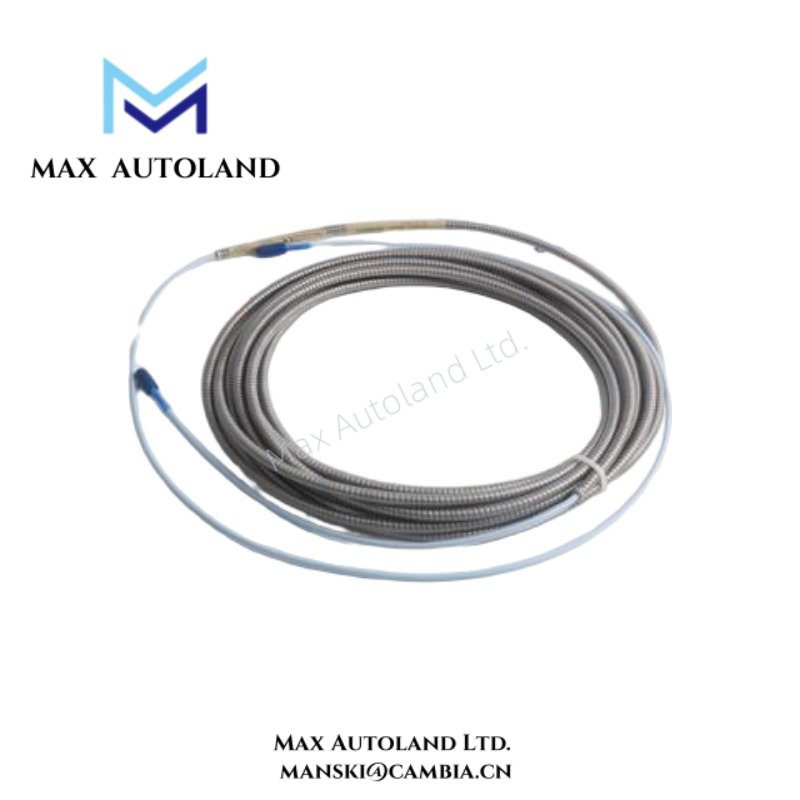

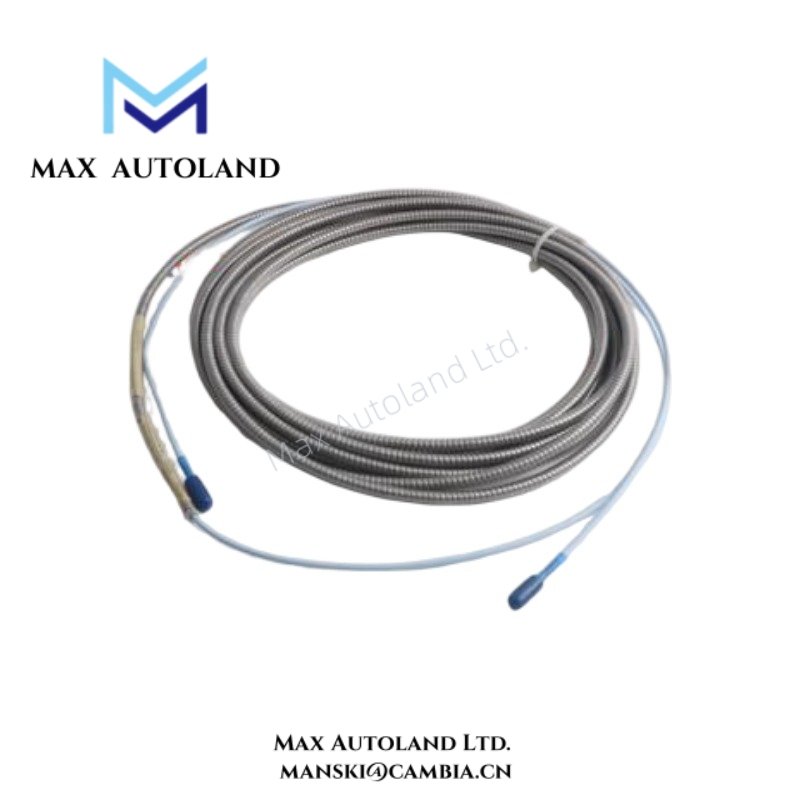

The Bently Nevada 330130-080-01-05 is a 3300 XL 8 mm armored standard extension cable designed for high-reliability vibration monitoring systems. It provides a secure electrical connection between proximity probes and Proximitor® sensors in critical rotating machinery protection applications.
Engineers deploy this armored version in harsh industrial environments where mechanical stress, abrasion, or cable exposure risks exist. Moreover, the armored design significantly enhances physical durability while it maintains stable signal transmission quality. Therefore, it becomes a preferred choice in heavy-duty rotating equipment installations.
In addition, the cable integrates seamlessly into Bently Nevada 3300 XL proximity transducer systems used for turbine, compressor, and industrial machine condition monitoring. For instance, maintenance teams often select it when routing cables across exposed or high-vibration zones.
Functional Highlights and Key Benefits
- Designed for Bently Nevada 3300 XL 8 mm proximity transducer systems
- Armored construction improves mechanical protection and abrasion resistance
- Ensures stable and low-noise signal transmission in harsh environments
- Maintains system calibration integrity across full transducer chain
- Compatible with industrial vibration and shaft position monitoring systems
- Supports long-distance installation flexibility within machinery layouts
- Reduces risk of cable damage in high-vibration and exposed areas
Specifications
| Parameter | Specification |
|---|---|
| Brand | Bently Nevada |
| Model Number | 330130-080-01-05 |
| Product Type | Armored Standard Extension Cable |
| Series | 3300 XL 8 mm Proximity Transducer System |
| System Function | Vibration, shaft position, and displacement signal transmission |
| System Architecture | Part of complete probe–cable–Proximitor® transducer chain |
| Compatible Platform | Bently Nevada 3300 XL Monitoring System |
| Primary Application | Machinery protection and condition monitoring |
| Cable Role | Extension connection between proximity probe and Proximitor sensor |
| Cable Construction | Armored triaxial industrial cable with reinforced protection layer |
| Armor Material | Stainless steel or industrial-grade mechanical protection braid |
| Cable Shielding | Multi-layer triaxial shielding for noise reduction |
| Cable Length Code | 080 |
| Nominal Cable Length | 8.0 meters (26.2 feet) |
| Connector Configuration | Factory-terminated ClickLoc™ connectors |
| Connector Option | 01 (standard configuration) |
| Approval / Certification Option | 05 (industrial certification package) |
| Signal Type | Analog proximity transducer signal |
| Impedance | 75 Ω triaxial system impedance |
| Electrical Performance | Low-loss signal transmission optimized for vibration accuracy |
| Noise Immunity | High resistance to electromagnetic interference (EMI) |
| Operating Temperature Range | Industrial-grade high-temperature environment compatibility |
| Mechanical Protection Level | Enhanced resistance to abrasion, impact, and mechanical stress |
| Flexibility | Moderate flexibility for industrial routing applications |
| Installation Method | Direct plug-and-lock connection within transducer system |
| Locking Mechanism | ClickLoc™ secure locking system for vibration resistance |
| System Calibration Requirement | No individual recalibration when used within matched system |
| Environmental Suitability | Harsh industrial environments including oil, gas, and power plants |
| Typical Equipment | Turbines, compressors, pumps, motors, rotating machinery |
| Maintenance Feature | Fast replacement without system redesign |
| Service Life Design | Long-term continuous monitoring operation capability |
| Compliance Standard | Designed for API 670 compliant monitoring systems |
| Engineering Advantage | Maintains signal integrity while improving mechanical durability |
| Inventory Management | Standardized part within 3300 XL transducer system architecture |
FAQ
The 330130-080-01-05 is an armored extension cable used in 3300 XL 8 mm proximity transducer systems.
Q2: Why is the armored version important?
The armored design provides extra protection against mechanical damage, abrasion, and harsh industrial environments.
Q3: Which systems are compatible with this cable?
It is compatible with Bently Nevada 3300 XL 8 mm probes and Proximitor sensor systems.
Q4: Where is this cable typically installed?
It is commonly used in turbines, compressors, pumps, and heavy industrial rotating machinery systems.
Q5: Does the cable affect signal accuracy?
No, the cable maintains low-noise, stable signal transmission while preserving system calibration integrity.
