Overview

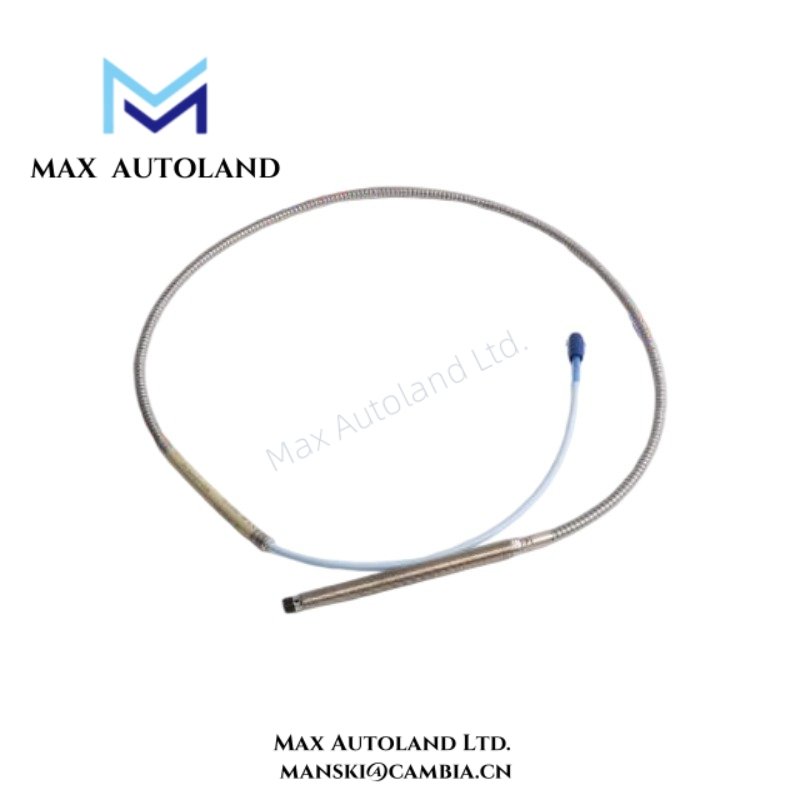

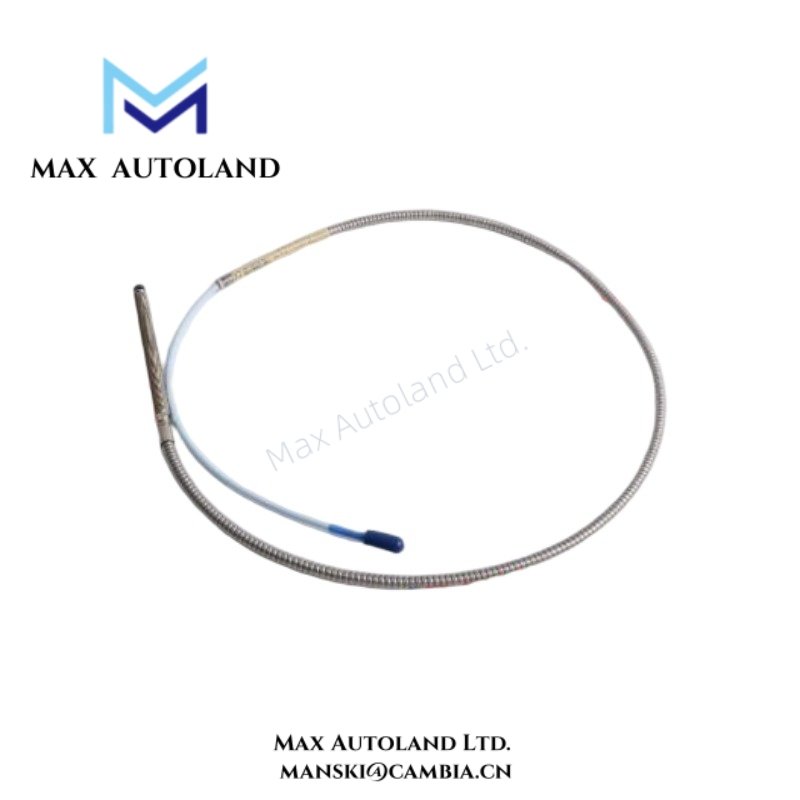

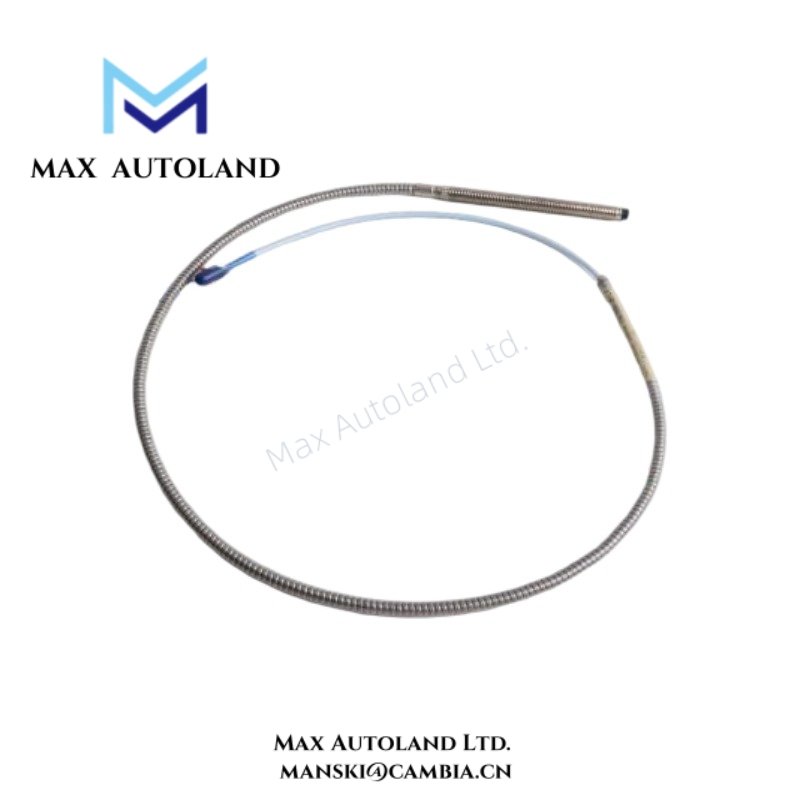

The Bently Nevada 330104-00-12-10-02-00 3300 XL 8 mm Proximity Probe provides precise non-contact vibration and shaft displacement measurement for critical rotating equipment. Designed for continuous industrial operation, this probe supports accurate machinery diagnostics and dependable asset protection.
As part of the proven 3300 XL 8 mm Proximity Transducer System, the probe works with matched extension cables and Proximitor sensors to maintain stable electrical performance and measurement accuracy. Moreover, its rugged design performs reliably in environments exposed to vibration, oil contamination, moisture, and temperature variation.
Industrial operators frequently select this model for applications where machine availability and condition monitoring directly influence production efficiency.
Key Features and Benefits
- High-precision 8 mm eddy current sensing technology
- Non-contact measurement for rotating machinery monitoring
- Compatible with Bently Nevada 3300 XL system components
- Stable signal performance during continuous equipment operation
- Resistant to industrial contaminants and harsh operating conditions
- Supports predictive maintenance and machinery protection strategies
Specifications
| Parameter | Specification |
|---|---|
| Brand | Bently Nevada |
| Model | 330104-00-12-10-02-00 |
| Product Type | Proximity Probe |
| Series | 3300 XL 8 mm Proximity Transducer System |
| Measurement Technology | Non-contact Eddy Current Sensing |
| Probe Diameter | 8 mm |
| Probe Thread Type | 3/8-24 UNF |
| Unthreaded Length | 0.0 in |
| Probe Case Length | 12.0 in / 304.8 mm |
| System Length Option | 10.0 Meter System Configuration |
| Connector Type | Miniature Coaxial ClickLoc Connector |
| Cable Configuration | Standard Cable Option |
| Approval Configuration | Standard Industrial Approval |
| Compatible Components | 3300 XL Proximitor Sensor and Extension Cable |
| Measurement Functions | Shaft Vibration, Radial Displacement, Axial Position, Speed/Phase Reference |
| Housing Material | Stainless Steel Construction |
| Installation Method | Threaded Machine Mounting |
| Environmental Resistance | Oil, Dirt, Moisture, and Industrial Contaminant Resistance |
| Typical Equipment | Turbines, Compressors, Motors, Pumps, Generators |
| Industrial Applications | Power Generation, Oil & Gas, Petrochemical, Manufacturing |
FAQ
Q1: What does the Bently Nevada 330104-00-12-10-02-00 proximity probe measure?
A1: The probe measures shaft vibration, radial displacement, axial position, and related machine condition parameters.
Q2: Which systems support this 3300 XL proximity probe?
A2: The probe operates with compatible Bently Nevada 3300 XL Proximitor sensors and extension cable assemblies.
Q3: Which equipment commonly uses this probe?
A3: Common applications include turbines, compressors, industrial motors, generators, and rotating process pumps.
Q4: Why is non-contact monitoring important for rotating machinery?
A4: Non-contact sensing delivers accurate measurements without mechanical wear between the probe and monitored shaft.
Q5: Can this probe support predictive maintenance strategies?
A5: Yes. The probe supplies continuous monitoring data for diagnostics, condition analysis, and proactive maintenance planning.
