Overview
Suffix Breakdown & Model Matrix
The available documentation identifies 190214-01 as a single catalog number. No official suffix or option matrix is specified by the manufacturer for this part number.

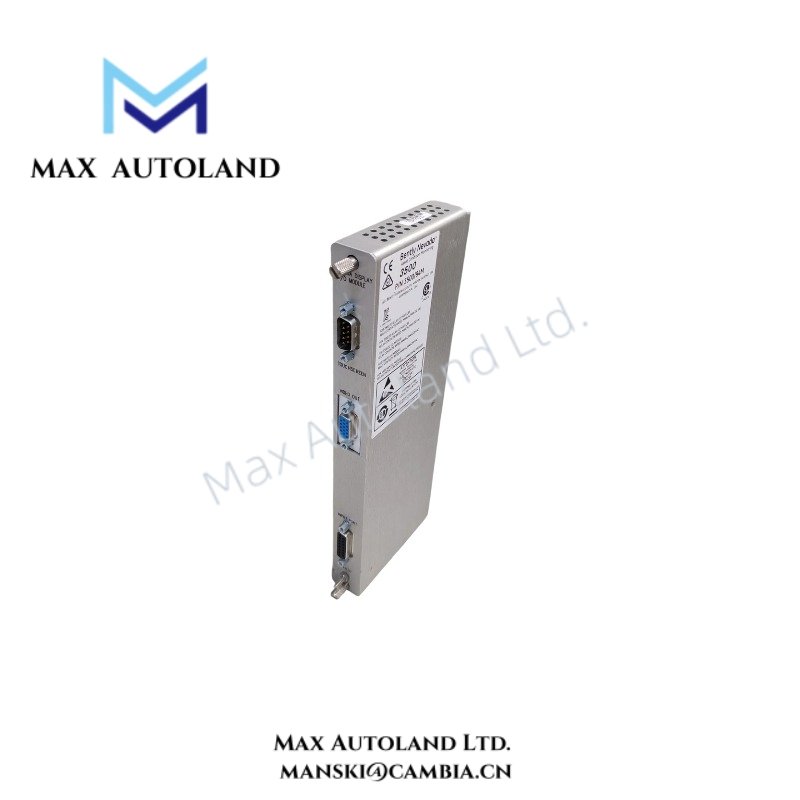

Hardware Specifications
| Parameter | Specification |
|---|---|

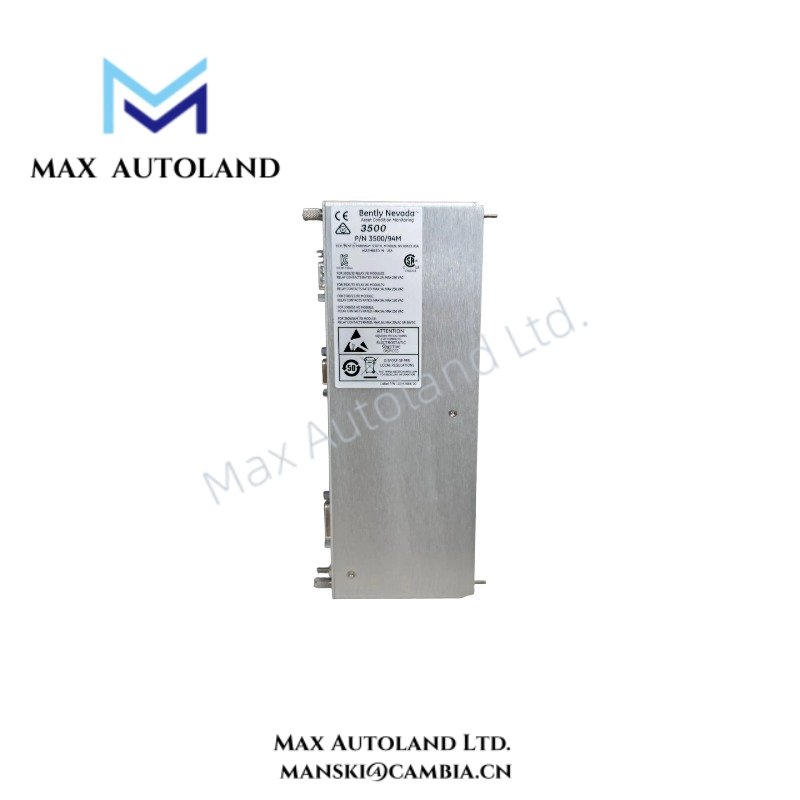

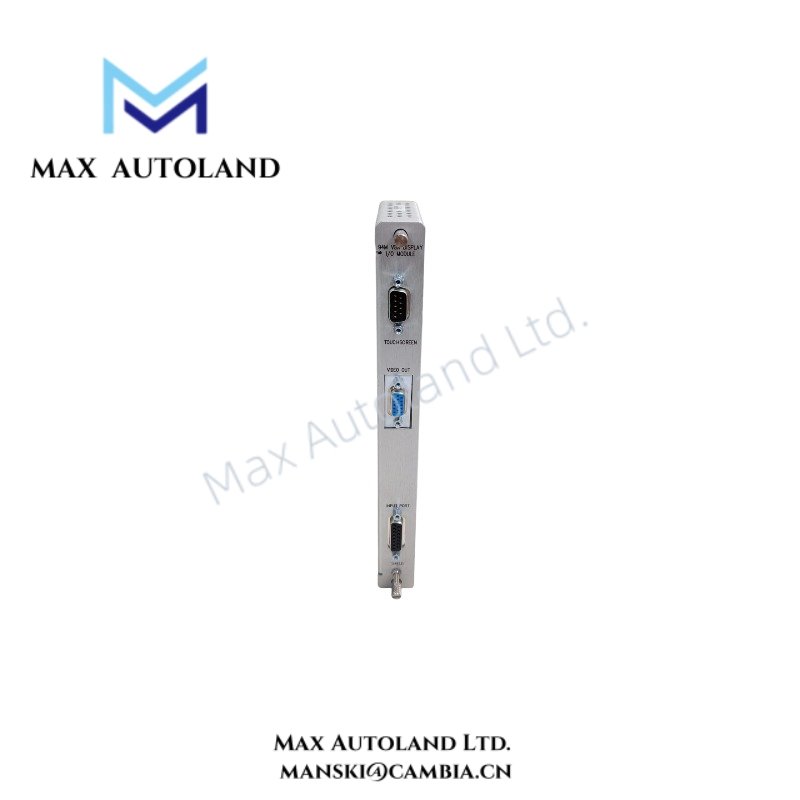

| Model | 190214-01 |
| Brand | Bently Nevada |
| Product Type | I/O Module |
| Series | 3500 |
| Compatible Module | 3500/94M VGA Display Module |
| Function | Rear I/O interface module for VGA display system |
| Origin | United States (USA) |
| Mounting Position | 1 full-height rear rack slot |
| Dimensions | 241.3 x 24.4 x 99.1 mm |
| Weight | 0.34 kg (module), shipping weight approximately 0.38 kg |
| Shipping Dimensions | 2.4 x 11 x 24.1 cm |
| Operating Temp | Not specified |
| Power Consumption | Not specified |
| Display Compatibility | 10 in and 15 in VGA touch-screen displays |
| Maximum Local Display Distance | Up to 6 m using standard VGA cabling |
| Maximum Extended Distance | Up to 10 km using supported KVM extender equipment |
Eddy-Current Monitoring Interface Considerations
Although the 190214-01 functions as an I/O module for the 3500/94M VGA Display Module rather than a vibration acquisition module, it operates within the Bently Nevada 3500 machinery protection architecture where eddy-current probe measurements are displayed and monitored. System commissioning typically includes verification of probe scaling, validation of gap voltage near the standard -10 VDC reference target where applicable, and confirmation that displayed values correspond to configured rack parameters. Proper routing of display and communication cables also helps reduce signal cross-talk between adjacent monitoring channels.
Frequently Asked Questions
Q: Does the 190214-01 process vibration or position signals directly?
A: No. The module functions as the rear I/O interface for the 3500/94M VGA Display Module. Signal acquisition and machinery protection functions are performed by the corresponding monitoring modules installed in the rack.
Q: Can the VGA display be mounted remotely from the 3500 rack?
A: Yes. Standard VGA cabling supports installation up to 6 m from the rack. When a supported KVM extender is used, the display distance can be extended to as much as 10 km, depending on the selected extender technology.
Q: Is hot replacement supported while the rack is operating?
A: The available documentation does not specify hot-swap capability for the I/O module. Replacement should follow the maintenance procedures defined for the installed 3500 system configuration.
Field Installation Guidelines
- Install the module only in the designated full-height rear slot assigned to the associated 3500/94M VGA Display Module.
- Verify complete backplane engagement before tightening mounting hardware.
- Separate VGA, KVM, and communication cables from high-energy motor and power conductors to minimize electromagnetic interference.
- Bond cable shields according to the site grounding practice and the applicable 3500 installation documentation.
- When fiber-optic KVM extenders are used, install transmitter and receiver units according to the hazardous-area approvals applicable to the installation site.
- After installation, verify communication with the display module using the 3500 Rack Configuration Software before placing the system into service.
