Overview
Specification
| Specification | Detail |
|---|---|
| Module Type | Redundant Power Status Module |
| Part Number | 900RSM-0001 |
| Compatible Systems | Honeywell FSC Series Safety Control Systems |
| Power Supply Monitoring | Continuously monitors dual redundant DC supplies, ensuring stable operation |

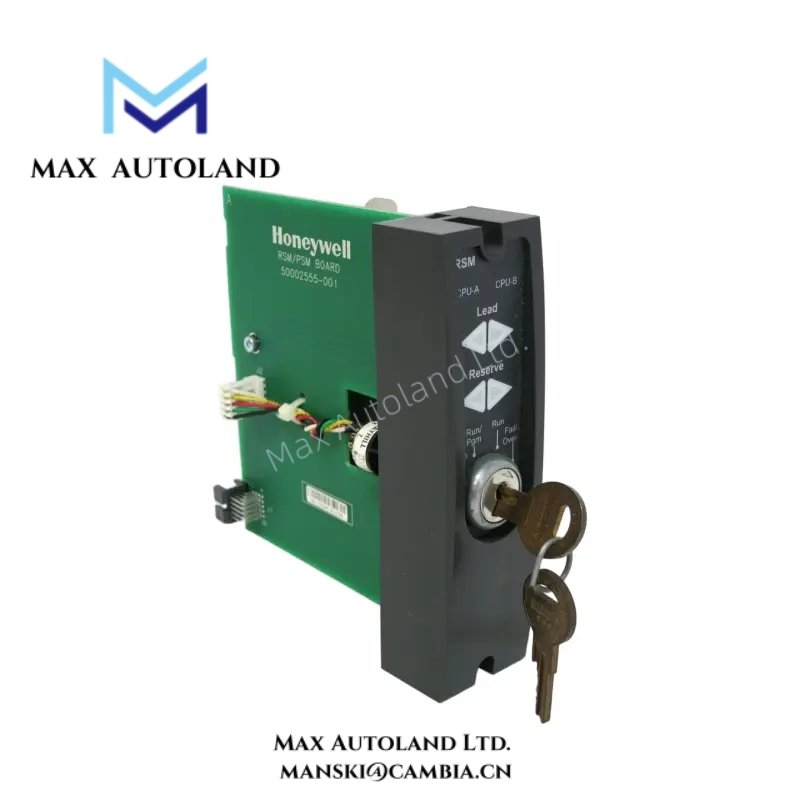

| Status Indicators | Front-panel LEDs display real-time health of each power supply |
| Communication Interface | Connects directly through the FSC backplane for instant updates |
| Operating Temperature Range | Operates reliably from 0°C to 60°C, suitable for industrial environments |
| Relative Humidity | Handles 10%–95% non-condensing humidity, preventing moisture issues |
| Mounting | Installs easily into standard FSC I/O Rack slots, supporting modular layouts |
| Dimensions | 115 mm (H) x 25 mm (W) x 150 mm (D), compact and space-efficient |
| Weight | 0.45 kg, allowing easy handling during installation |
| Response Time | Updates status within <100 ms, ensuring prompt alerts |
| Certifications | Certified CE, UL, and FCC, demonstrating compliance and safety |
FAQ
Q1: Can the 900RSM-0001 operate with a single power supply if redundancy fails?
A1: Yes, the module will continue monitoring the remaining supply; however, redundancy alerts will activate.
Q2: How is the status communicated to the main controller?
A2: The module communicates via the FSC backplane, sending continuous power status updates.
Q3: Can it be installed in any FSC I/O rack?
A3: Yes, it fits standard FSC I/O rack slots and mounts without additional hardware.
Q4: What environmental conditions can it tolerate?
A4: It operates reliably from 0°C to 60°C and tolerates 10%–95% non-condensing humidity.
Q5: How do the LEDs indicate power supply health?
A5: Green LEDs indicate normal operation, while red LEDs signal voltage drop or supply failure.
Q6: Does it require software configuration for operation?
A6: No, the module functions immediately upon installation, providing automatic monitoring without additional setup.
