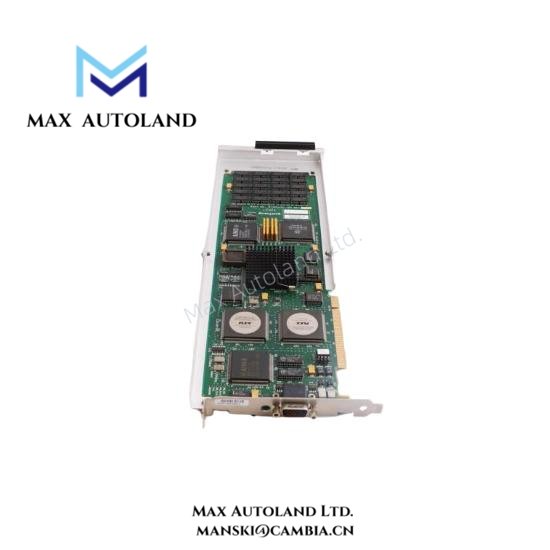

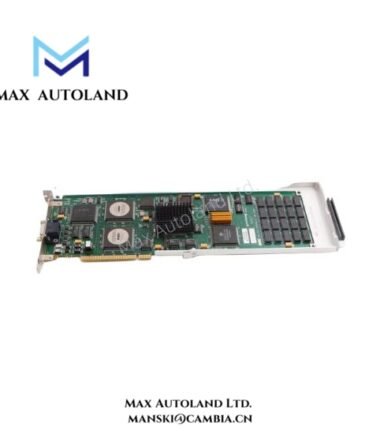

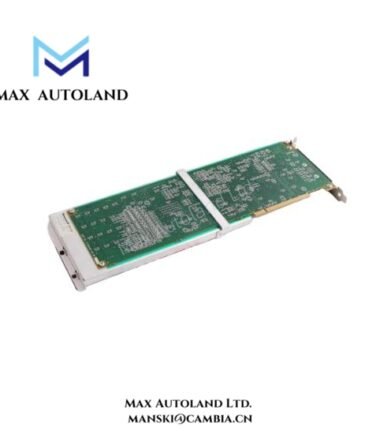

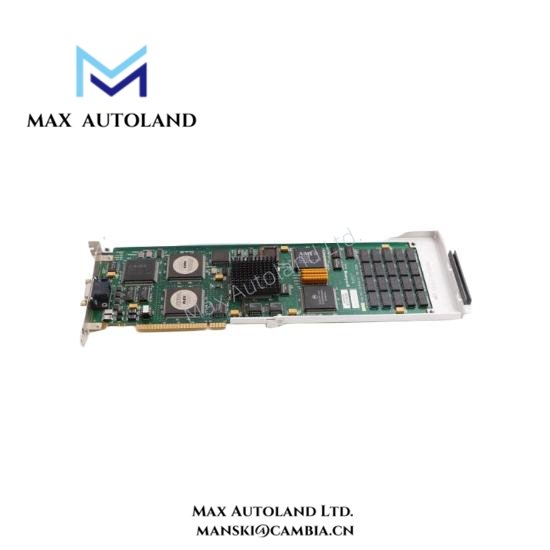

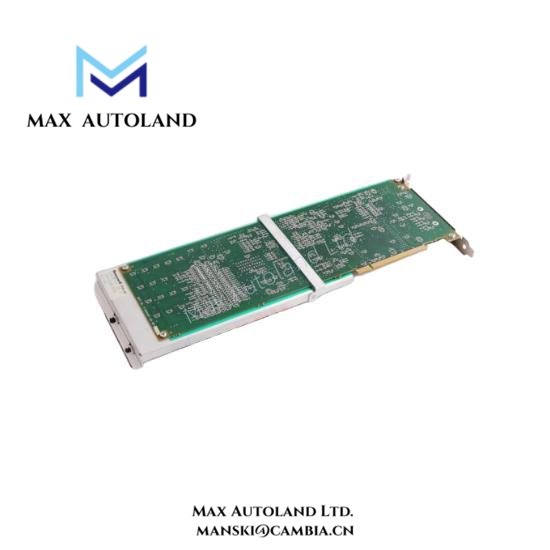

Overview
It ensures precise signal coordination, which enables stable process control and consistent automation performance.
Moreover, this board is designed for continuous industrial operation, supporting system reliability under harsh conditions.
Control engineers value this module because it integrates seamlessly into TDC 3000 racks without requiring software reconfiguration.
Specification
| Parameter | Description |
|---|---|
| Manufacturer | Honeywell |
| Product Series | TDC 3000 |
| Model Number | 51305430-100 |
| Module Type | Control Interface Board |
| Function | Provides control signal communication between TDC 3000 controllers and field modules |
| Input Channels | Multiple digital and analog input channels |
| Output Channels | Multiple digital and analog output channels |
| Signal Types | Voltage/current analog, digital on/off |
| System Compatibility | Honeywell TDC 3000 Distributed Control System |
| Installation Type | Rack-mounted within standard TDC 3000 chassis |
| Operating Voltage | 24 VDC industrial control power |
| Power Consumption | Low-power, suitable for continuous operation |
| Operating Temperature | 0 °C to +60 °C standard industrial range |
| Storage Temperature | -40 °C to +85 °C |
| Humidity Range | 5 %–95 % RH, non-condensing |
| Environmental Rating | Industrial-grade automation environments |
| Maintenance | Modular design allows quick replacement and troubleshooting |
| Lifecycle Role | Supports legacy control interface continuity |
FAQ
Q1: What is the main function of the 51305430-100 Control Interface Board?
It enables precise communication between TDC 3000 controllers and field control modules.
Q2: Is this module compatible with all TDC 3000 systems?
Yes, it integrates directly into standard Honeywell TDC 3000 distributed control system racks.
Q3: Does replacing this board require software adjustments?
In most installations, technicians can replace it without modifying existing control logic or system settings.
Q4: What types of devices can this board interface with?
Moreover, it supports digital sensors, analog transducers, and actuators within industrial automation applications.
Q5: Is this module suitable for continuous operation?
Yes, it is designed for continuous duty in demanding industrial automation environments.
Q6: Why is this module important for legacy system maintenance?
Therefore, it allows plants to maintain TDC 3000 control continuity without full system upgrades.
