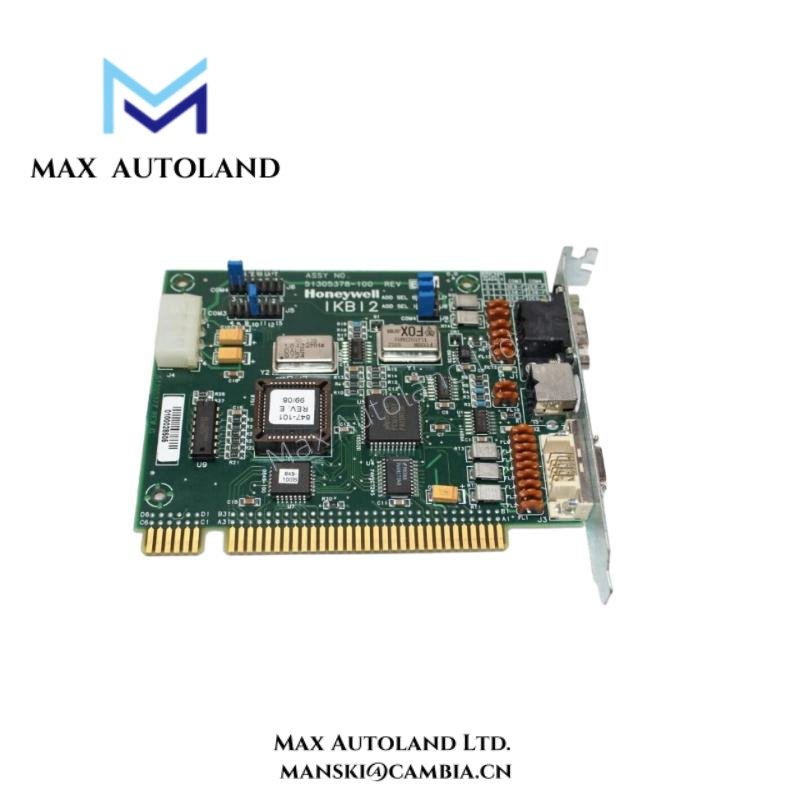

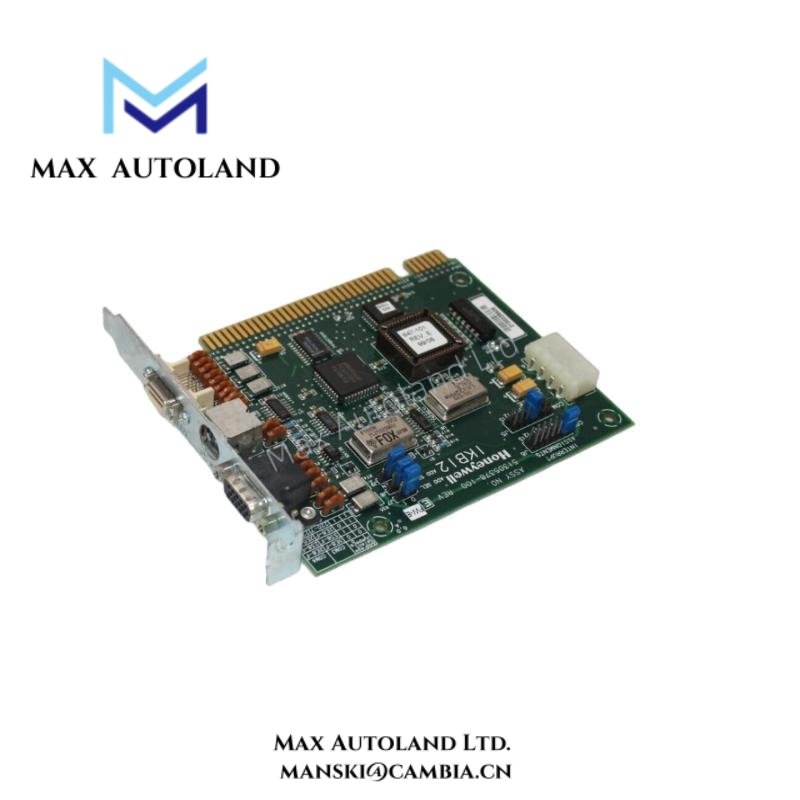

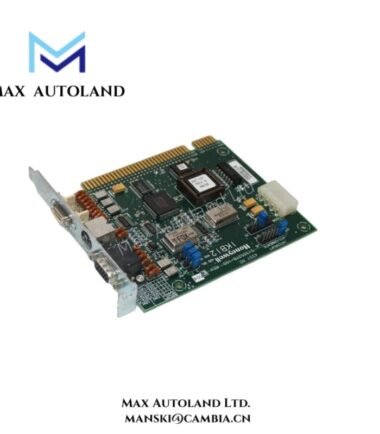

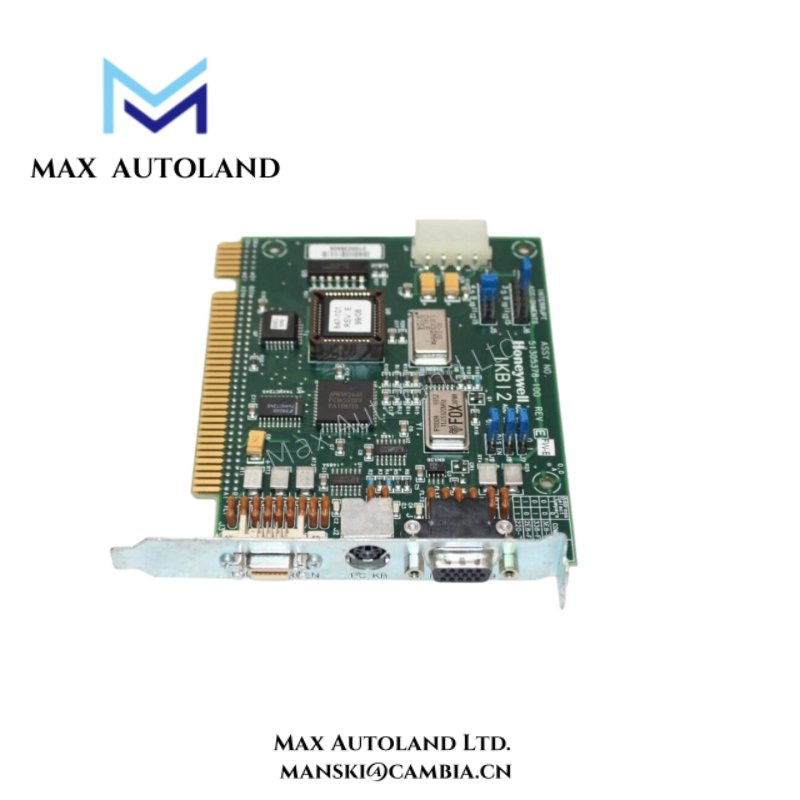

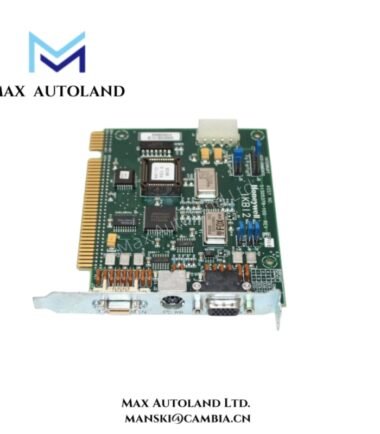

Overview
It ensures accurate data transfer for process documentation, logging, and operational recordkeeping.
Moreover, this card is designed for continuous industrial operation, maintaining system performance under demanding conditions.
Control engineers appreciate its plug-and-play design, which integrates directly into TDC 3000 racks without requiring software adjustments.
Specification
| Parameter | Description |
|---|---|
| Manufacturer | Honeywell |
| Product Series | TDC 3000 |
| Model Number | 51305378-100 |
| Module Type | Printer Interface Card |
| Function | Provides communication between TDC 3000 controllers and industrial printers |
| Interface Type | Parallel and/or serial printer connection (depending on system configuration) |
| Data Handling | Supports process event, alarm, and batch logging output |
| System Compatibility | Honeywell TDC 3000 Distributed Control System |
| Installation Type | Rack-mounted in standard TDC 3000 chassis |
| Operating Voltage | 24 VDC typical industrial control power |
| Power Consumption | Low-power design suitable for continuous operation |
| Operating Temperature | 0 °C to +60 °C industrial range |
| Storage Temperature | -40 °C to +85 °C |
| Humidity Range | 5 %–95 % RH, non-condensing |
| Environmental Rating | Designed for harsh industrial automation environments |
| Maintenance | Modular replacement allows quick servicing |
| Lifecycle Role | Supports legacy system printing and recordkeeping continuity |
FAQ
Q1: What is the main function of the 51305378-100 Printer Interface Card?
It provides reliable communication between TDC 3000 controllers and industrial printers.
Q2: Is this module compatible with all TDC 3000 systems?
Yes, it integrates directly into standard Honeywell TDC 3000 distributed control system racks.
Q3: Does replacing this card require software changes?
In most installations, technicians can replace it without modifying existing system logic or settings.
Q4: What types of printing devices can this card handle?
Moreover, it supports industrial printers for process event logs, alarm reports, and batch documentation.
Q5: Is this module suitable for continuous operation?
Yes, it is designed for continuous duty in demanding industrial environments.
Q6: Why is this module important for legacy system documentation?
Therefore, it ensures uninterrupted printing of operational logs and supports regulatory compliance.
