Overview

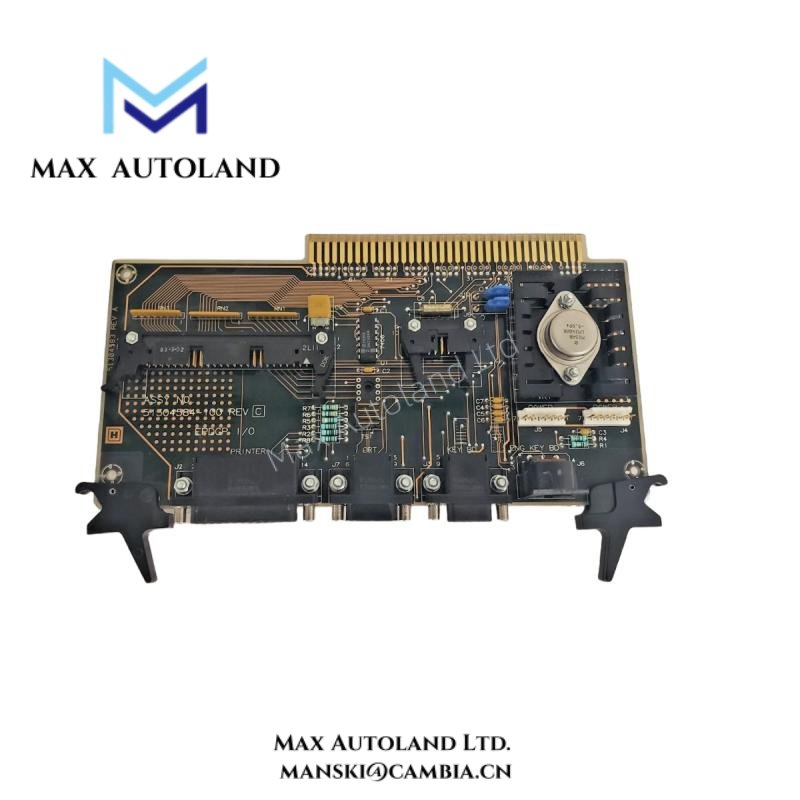

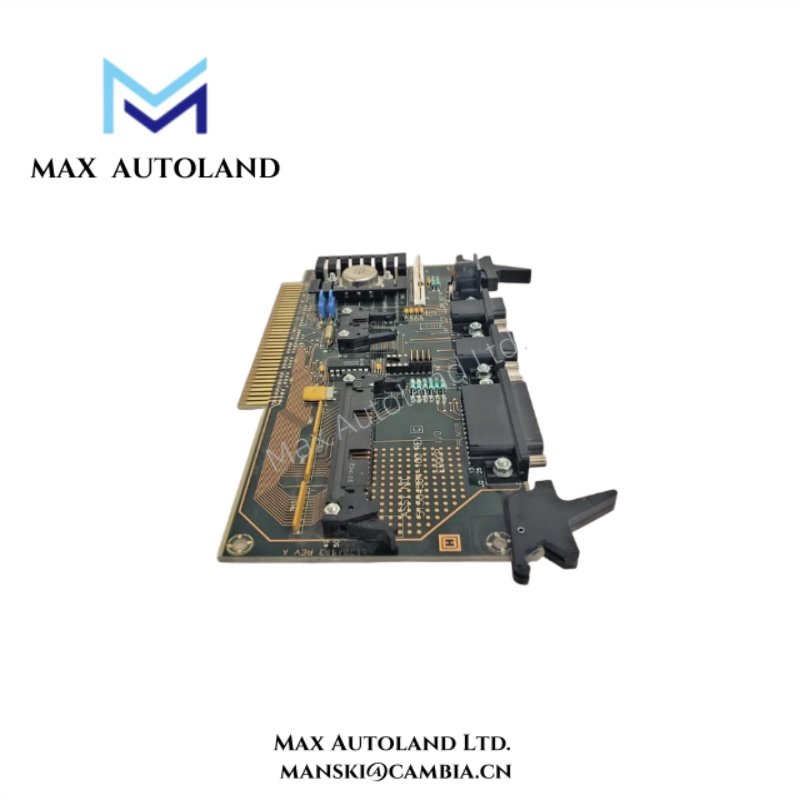

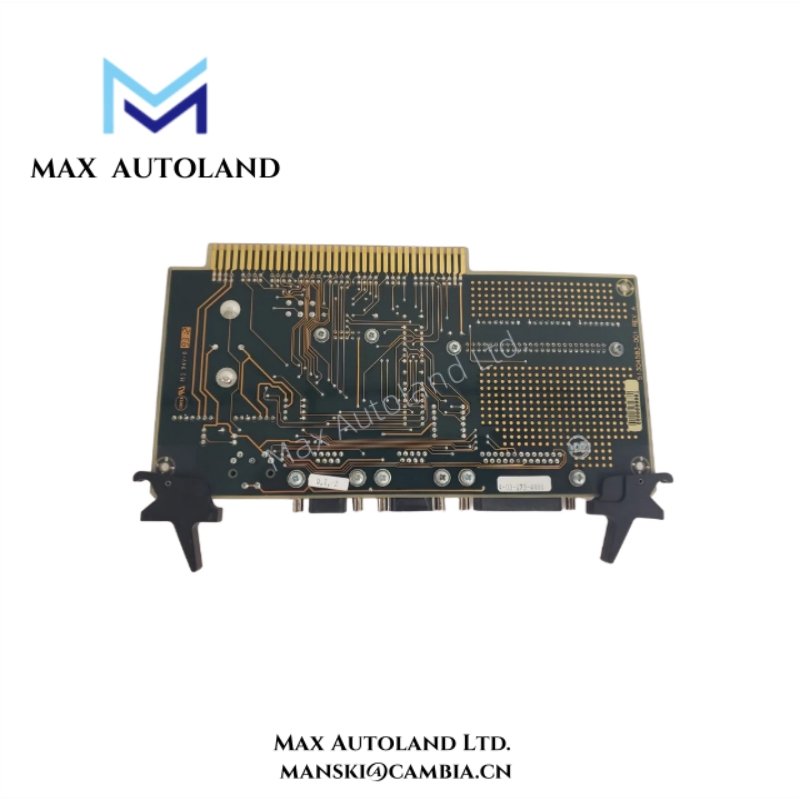

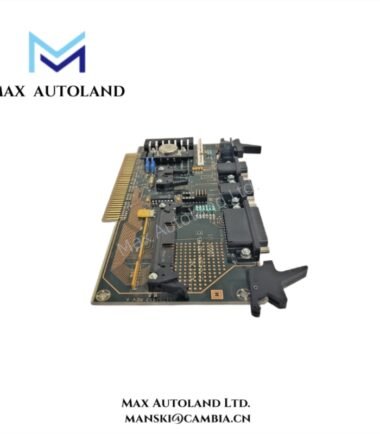

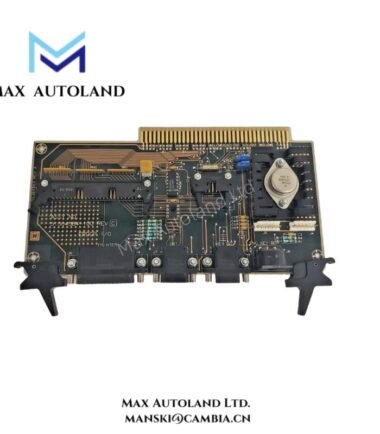

The Honeywell 51304584-100 Input Output Board seamlessly integrates with TDC 3000 control systems, providing direct management of analog and digital signals from field devices for precise process control. Furthermore, it delivers fast and reliable communication, which enhances overall industrial automation performance.
Its robust design withstands harsh environmental conditions and electrical noise, while also ensuring consistent operational stability. In addition, clearly labeled connectors and built-in diagnostic features simplify routine maintenance and reduce troubleshooting time.
Specification
| Parameter | Specification |
|---|---|
| Manufacturer | Honeywell |
| Model Number | 51304584-100 |
| Product Type | Input Output Board |
| System Compatibility | TDC 3000 Universal Control Network (UCN) |
| Input/Output | Digital and analog channels |
| Signal Types | Voltage, current, pulse signals |
| Processing Speed | Real-time deterministic control |
| Power Supply | 24 V DC nominal |
| Power Consumption | 9 W typical |
| Operating Temperature | 0 °C to 60 °C |
| Storage Temperature | –40 °C to +85 °C |
| Humidity | 5% to 95% non-condensing |
| Mounting | Rack-mounted or panel-mounted |
| LED Indicators | Power, Status, Fault |
| Certifications | CE, UL, CSA approved |
| Weight | 0.85 kg |
| Dimensions | 220 mm × 130 mm × 40 mm |
FAQ
Q1: Is this I/O board compatible with all TDC 3000 systems?
Yes, it is fully compatible with Honeywell TDC 3000 Universal Control Network systems.
Q2: What signal types does it support?
It supports digital and analog inputs and outputs, including voltage, current, and pulse.
Q3: Can it operate in industrial environments reliably?
Yes, it operates safely between 0–60 °C and 5–95% non-condensing humidity.
Q4: How is the board installed?
The module supports both rack-mounted and panel-mounted installation options.
Q5: Does it offer diagnostics?
Yes, LED indicators display power, status, and fault conditions for easy troubleshooting.
Q6: What certifications does this board have?
It holds CE, UL, and CSA approvals for safe industrial deployment.
