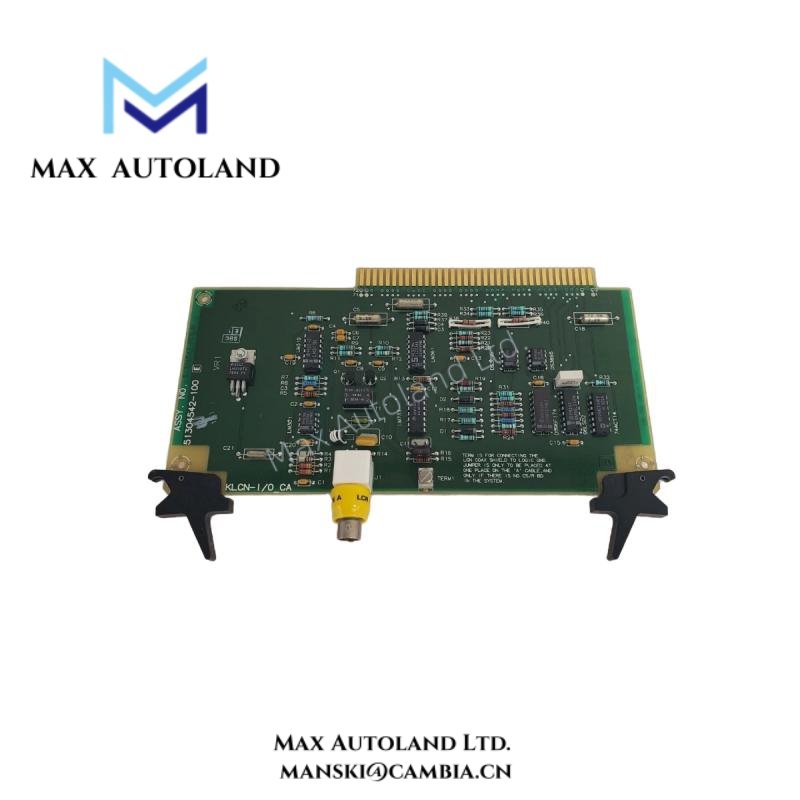

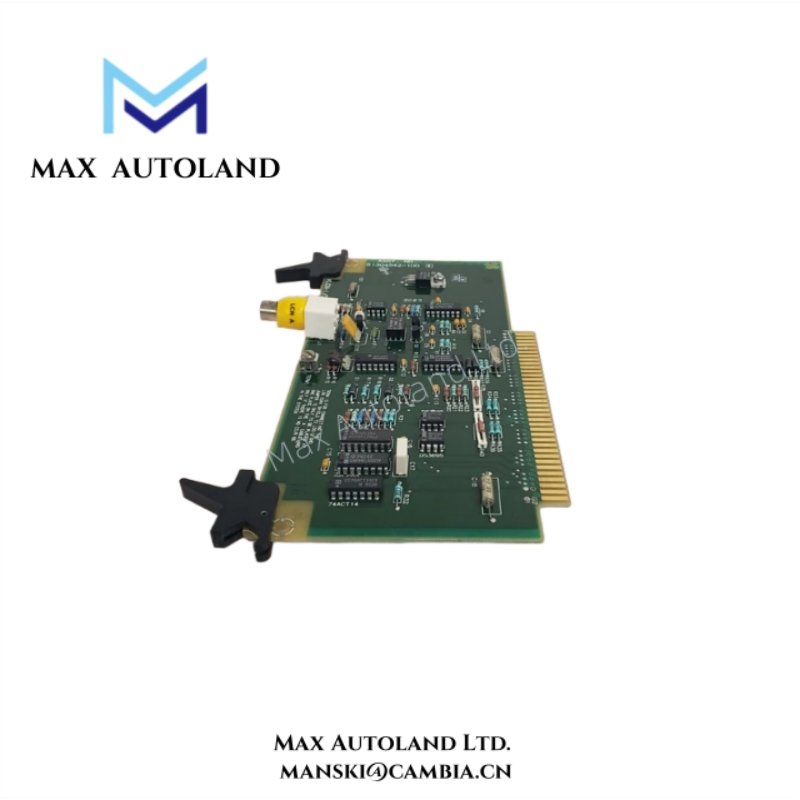

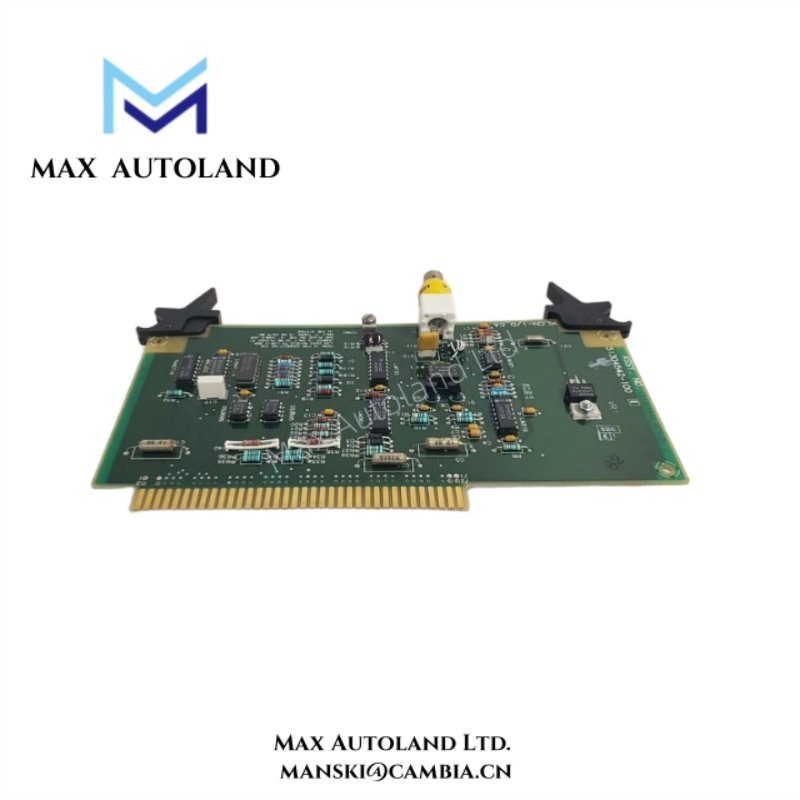

Overview
It efficiently manages analog and digital signals between field devices and control modules for accurate automation.
Moreover, this board supports high-speed processing, ensuring timely updates for critical control loops.
Designed for industrial applications, it offers stable performance under temperature fluctuations and electrical noise.
In addition, the module simplifies maintenance with clearly labeled connections and robust diagnostics.
Specification
| Parameter | Specification |
|---|---|
| Manufacturer | Honeywell |
| Model Number | 51304544-100 |
| Product Type | Input Output Board |
| System Compatibility | TDC 3000 Universal Control Network (UCN) |
| Input/Output | Digital and analog channels |
| Signal Types | Voltage, current, and pulse signals |
| Processing Speed | Real-time deterministic control |
| Power Supply | 24 V DC nominal |
| Power Consumption | 9 W typical |
| Operating Temperature | 0 °C to 60 °C |
| Storage Temperature | –40 °C to +85 °C |
| Humidity | 5% to 95% non-condensing |
| Mounting | Rack-mounted or panel-mounted |
| LED Indicators | Power, Status, Fault |
| Certifications | CE, UL, CSA approved |
| Weight | 0.85 kg |
| Dimensions | 220 mm × 130 mm × 40 mm |
FAQ
Q1: Which systems is this I/O board compatible with?
It is fully compatible with Honeywell TDC 3000 Universal Control Network systems.
Q2: What types of signals can it handle?
It supports digital and analog inputs and outputs, including voltage, current, and pulse signals.
Q3: Can it operate reliably in industrial environments?
Yes, it functions within 0–60 °C and 5–95% non-condensing humidity.
Q4: How is it installed?
The module supports both rack-mounted and panel-mounted installation.
Q5: Does it provide diagnostics?
Yes, LED indicators show power, status, and fault information for easy troubleshooting.
Q6: What certifications does it hold?
The board has CE, UL, and CSA certifications for safe industrial deployment.
