Overview
Within TDC 3000 architectures, this module reliably converts high-level field signals into digital process data.
Moreover, its robust design ensures consistent measurement performance across long operating cycles and harsh plant conditions.
Engineers deploy this module when processes require dependable monitoring of standard industrial voltage or current signals.
Therefore, it supports precise control strategies and enhances overall system observability in complex automation systems.
Specification
| Parameter | Specification |
|---|---|
| Manufacturer | Honeywell |
| Model Number | 51304489-100 |

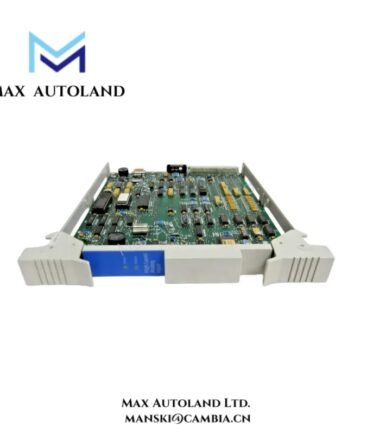

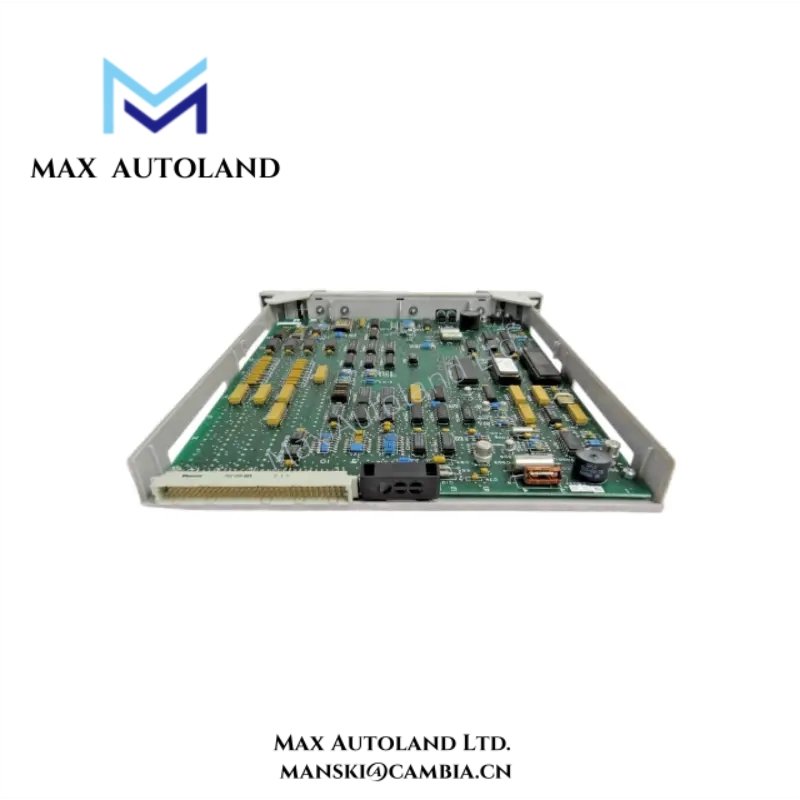

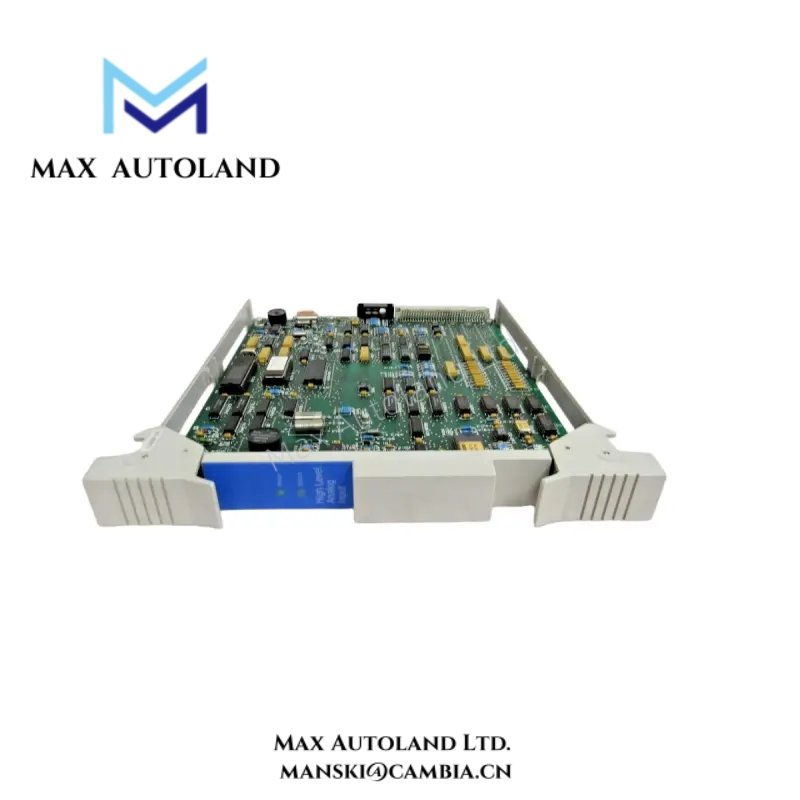

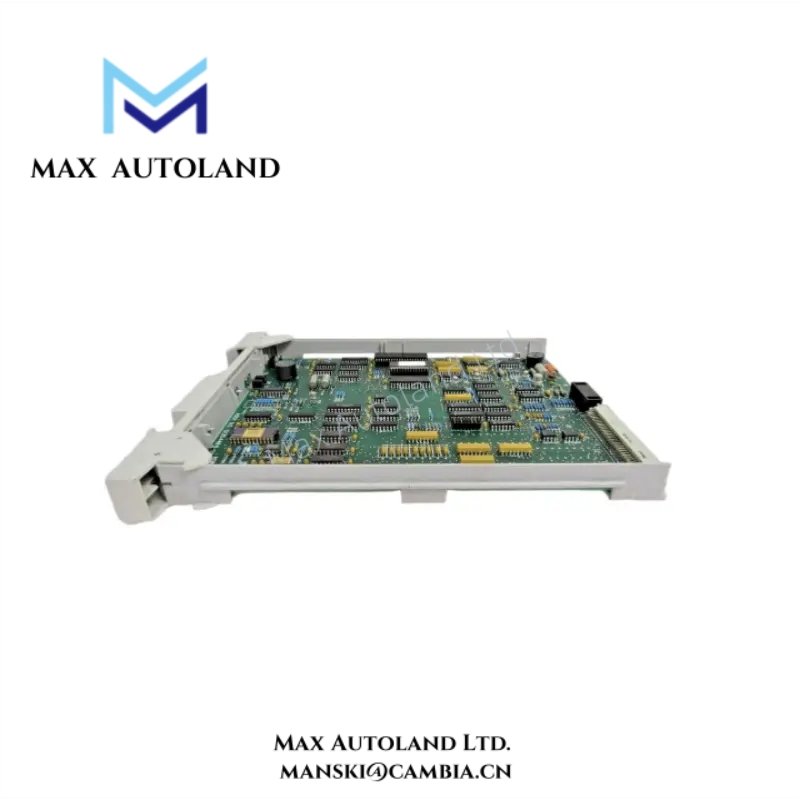

| Product Type | High Level Analog Input Module |
| Control System Compatibility | Honeywell TDC 3000 Distributed Control System |
| Input Signal Types | High-level analog voltage and current signals |
| Typical Input Ranges | 0–10 VDC, ±10 VDC, 0–20 mA, 4–20 mA |
| Number of Input Channels | Multiple isolated analog input channels |
| Input Resolution | 16-bit analog-to-digital conversion |
| Measurement Accuracy | ±0.25% of full scale (typical) |
| Input Impedance | High impedance to minimize signal loading |
| Channel Isolation | Electrical isolation between channels and system backplane |
| Power Supply | Powered from TDC 3000 backplane |
| Diagnostics Support | Channel status monitoring and system fault reporting |
| Operating Temperature | –20 °C to +70 °C |
| Storage Temperature | –40 °C to +85 °C |
| Environmental Rating | Industrial indoor, non-condensing |
| Mounting | TDC 3000 rack-mounted module |
| Typical Signal Sources | Transmitters, analyzers, and control system outputs |
FAQ
Q1: What types of signals does the 51304489-100 module support?
It supports standard high-level analog voltage and current signals commonly used in industrial instrumentation.
Q2: Is this module compatible with all TDC 3000 systems?
Yes, it integrates directly with Honeywell TDC 3000 architectures using standard rack configurations.
Q3: Does the module provide electrical isolation?
Yes, channel and system isolation help reduce noise, ground loops, and signal interference.
Q4: Can this module replace older Honeywell analog input cards?
In many cases, it serves as a direct functional replacement within compatible TDC 3000 systems.
Q5: What industries typically use this module?
Industries include oil and gas, chemicals, power generation, and large-scale manufacturing facilities.
Q6: Is this module suitable for long-term legacy system support?
Yes, it supports lifecycle extension strategies for installed Honeywell TDC 3000 control systems.
