Overview
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 136386-01 |
| Brand | Bently Nevada (Baker Hughes) |
| Origin | USA |
| Product Type | Blank Filler Panel |
| System Compatibility | Bently Nevada 3500 Series Machinery Monitoring System Racks |
| Function | Covers unused module slots within 3500 rack assemblies |
| Construction Material | Industrial-grade metal panel |
| Mounting Type | Front-panel slot insertion with screw fastening |
| Weight | Approx. 0.05 kg |
| Dimensions | Length: 207.5 mm; Width: 50.8 mm |
| Operating Temp | Not specified by manufacturer |
| Power Consumption | 0 W (passive mechanical component) |
3500 Rack Mechanical Protection and Airflow Control

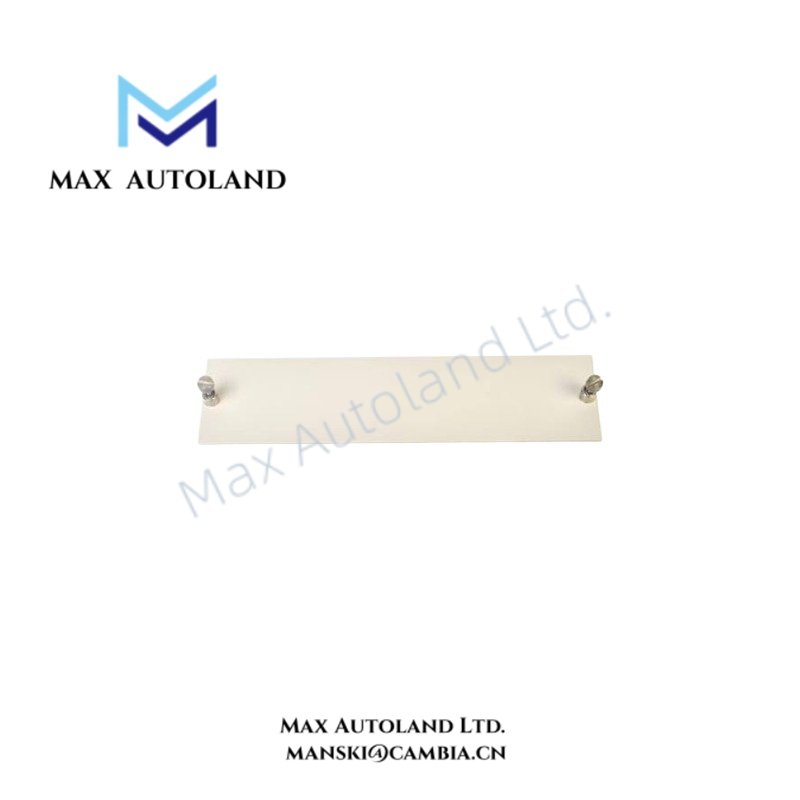

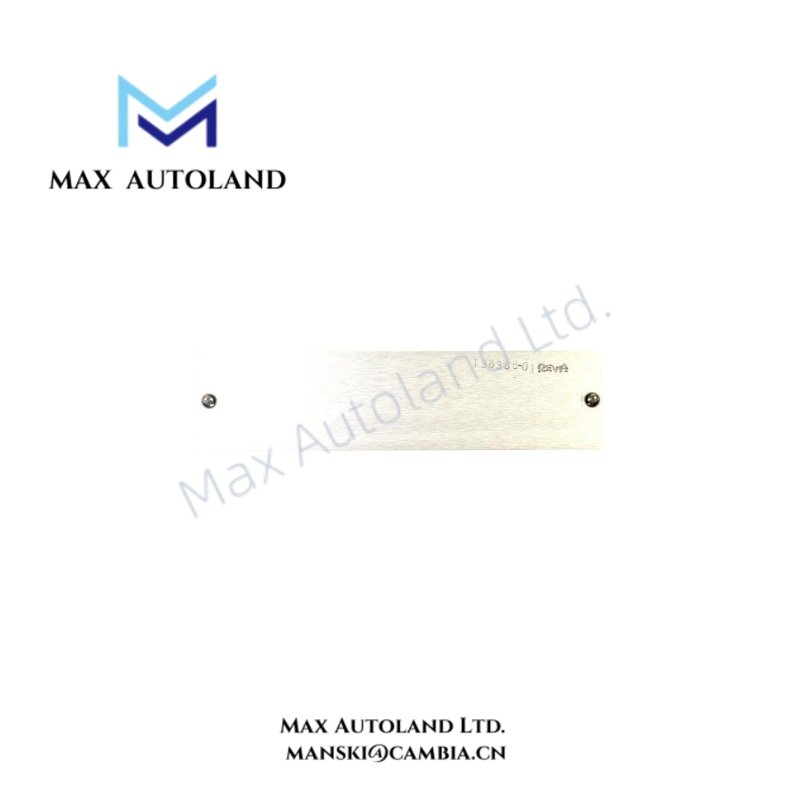

The 136386-01 Blank Filler Panel maintains the mechanical integrity of unused rack positions in a Bently Nevada 3500 system. It blocks open module spaces, therefore reducing exposure of internal electronics to dust, foreign particles, and accidental contact.
Additionally, the panel supports rack thermal management by maintaining the designed airflow path through occupied module areas. It also contributes to electromagnetic compatibility by reducing open areas that may affect shielding performance.
For Bently Nevada machinery monitoring installations, proper rack slot management supports stable signal processing from monitoring modules, including systems using eddy-current probe scaling, gap voltage validation (-10 VDC targets), rotor dynamics analysis, and cross-talk suppression techniques.
Frequently Asked Questions
Q: Does the 136386-01 Blank Filler Panel require electrical connection or configuration?
A: No. The 136386-01 is a passive mechanical component and does not require wiring, software configuration, or rack communication addressing.
Q: Can the 136386-01 replace an active monitoring module in a 3500 rack?
A: No. The panel only covers unused slots and cannot perform signal acquisition, processing, alarming, or communication functions.
Q: Why should unused 3500 rack slots be covered with a filler panel?
A: The filler panel maintains enclosure protection, airflow distribution, and electromagnetic shielding characteristics of the rack assembly.
Field Installation Guidelines
- Verify that the selected rack position is an unused module slot before installation.
- Insert the 136386-01 panel into the vacant front-panel position of the 3500 rack.
- Secure the panel using the designated rack fastening hardware to prevent mechanical movement.
- Keep adjacent module connectors, backplane areas, and grounding points free from contamination during installation.
- Maintain proper cable routing and avoid blocking ventilation paths around active monitoring modules.
- Confirm that all installed 3500 modules remain correctly seated and that unused openings are fully covered before system operation.
