Overview

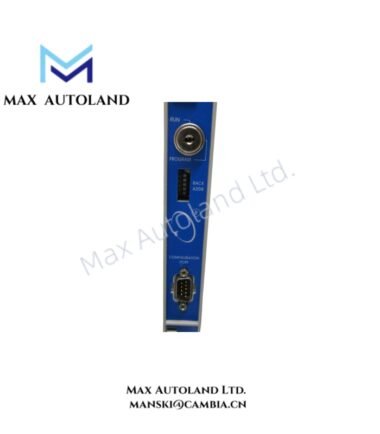

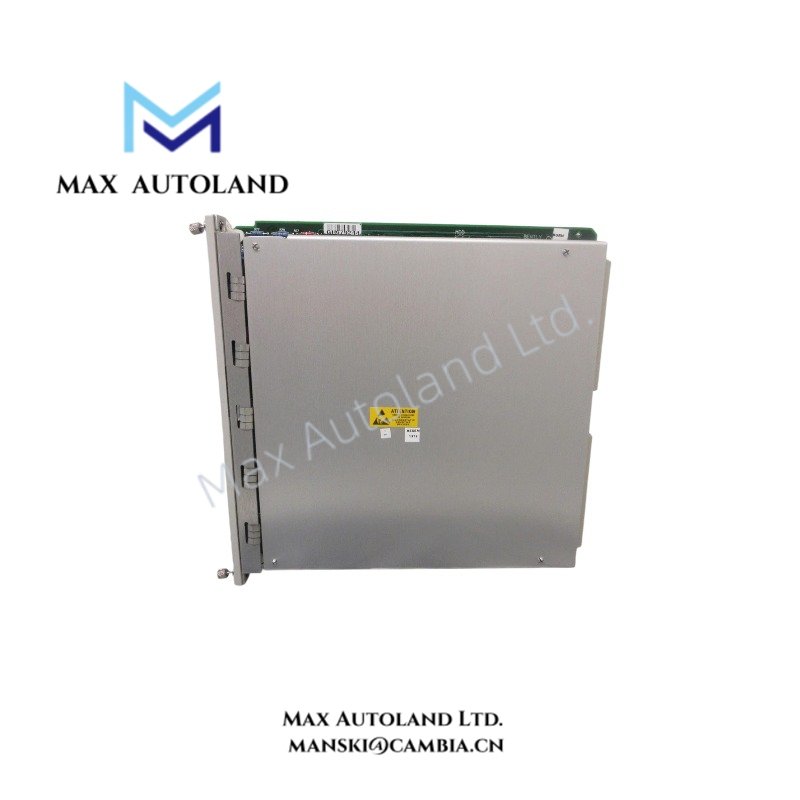

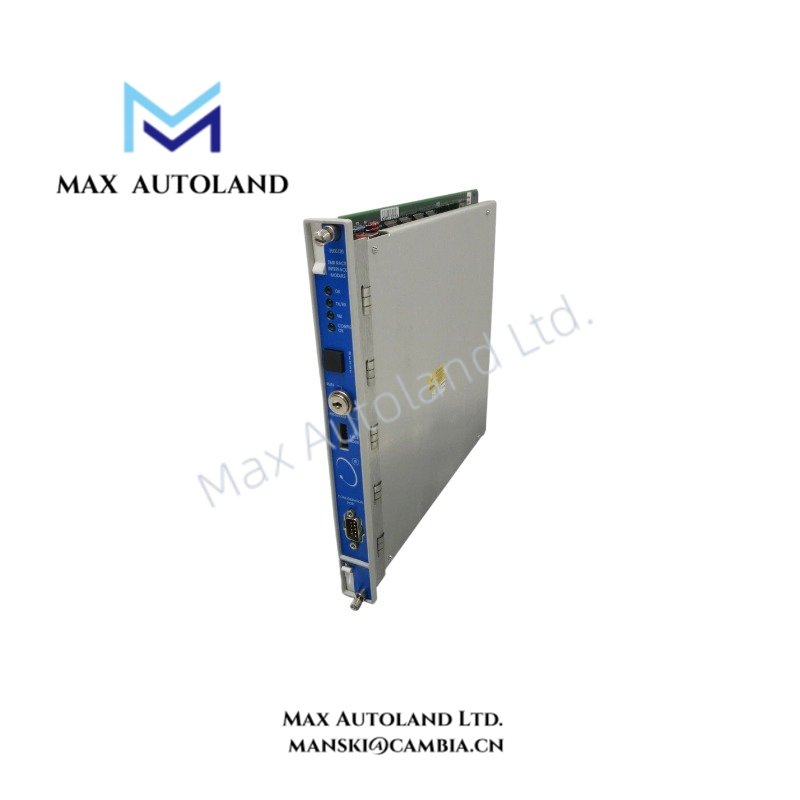

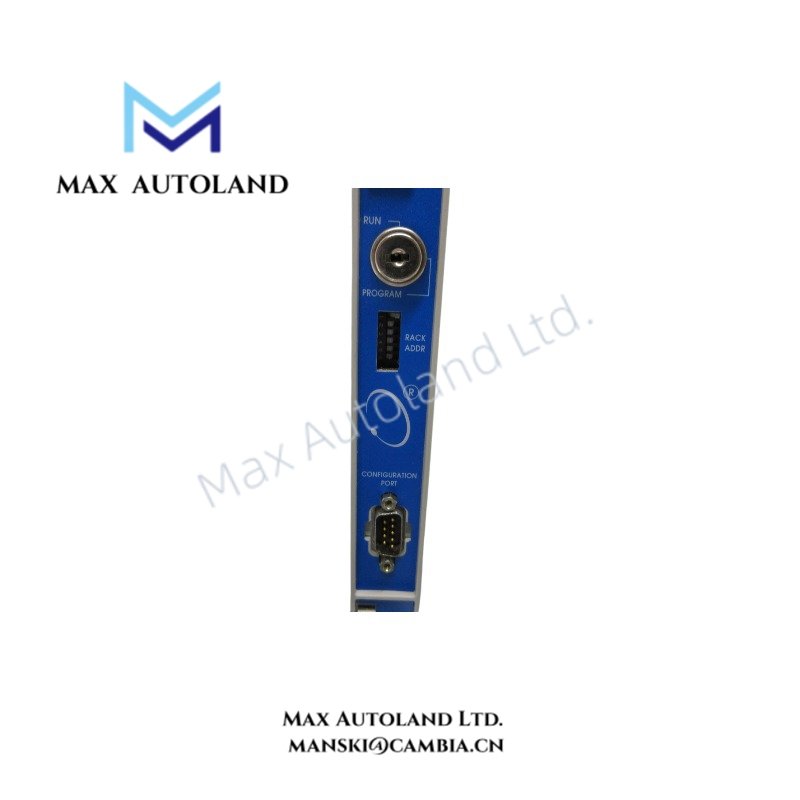

Configured for rack configuration, system communication, and monitor-channel validation in Bently Nevada 3500 systems, the Bently Nevada 125744-01 (3500/20 TMR RIM Rack Interface Module) provides the physical and communication interface for the monitoring rack.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 125744-01 |
| Brand | Bently Nevada |
| Product Type | 3500/20 TMR Rack Interface Module |
| Rack Location | Slot 1 |
| System Compatibility | Bently Nevada 3500 Series Monitoring Systems |
| Module Architecture | Triple Modular Redundant (TMR) |
| Communication Interfaces | TDXnet, TDIX, DDIX, front-panel USB |
| Input Voltage | 24 VDC |
| Power Consumption | 4.75 W typical |
| Operating Temp | -30 deg C to +65 deg C |
| Storage Temp | -40 deg C to +85 deg C |
| Relative Humidity | Up to 95%, non-condensing |
| Dimensions | 241.3 mm x 24.4 mm x 241.8 mm |
| Weight | Approximately 0.91 kg |
| Primary Functions | Rack configuration, event logging, communication gateway, TMR monitor-channel validation and voting |
TMR Rack Interface and Communication
The 125744-01 occupies Slot 1 of the 3500 rack, adjacent to the power supply modules. It manages rack-level configuration and provides communication paths between the monitoring rack and external systems.
The module supports Bently Nevada communication interfaces including TDXnet, TDIX, and DDIX. The front-panel USB interface supports configuration access. In addition, the RIM provides a communication gateway for external monitoring and configuration software.
For TMR configurations, the module compares monitor-channel information and applies the specified voting logic. This architecture allows the rack to process redundant monitor information as a coordinated system rather than as independent channel data.
Rotor Dynamics and Signal Validation
The 3500 architecture processes machinery-monitoring data associated with rotating equipment. The 125744-01 participates at the rack interface level rather than directly conditioning an eddy-current probe signal.
The TMR interface therefore operates on monitor and system data generated within the rack. It supports channel comparison and voting functions used to validate redundant monitoring information. This function applies to machinery parameters such as vibration and shaft-position measurements when the corresponding 3500 monitor modules are installed.
Frequently Asked Questions
Q: Where is the 125744-01 installed in a 3500 rack?
A: The module occupies Slot 1, next to the power supply modules.
Q: What input voltage does the module require?
A: The supplied specifications state an input voltage of 24 VDC.
Q: Does the 125744-01 directly interface with an eddy-current probe?
A: No. The RIM provides rack-level interface, communication, configuration, and TMR monitor-data validation functions. Dedicated monitor and signal-conditioning modules handle the direct transducer interface.
Field Installation Guidelines
Install the 125744-01 in the specified Slot 1 position of the Bently Nevada 3500 rack. Confirm that the rack, power supply arrangement, and installed monitor modules match the intended system architecture before energizing the assembly.
Secure the module fully in the rack connector and verify mechanical engagement before applying power. Route communication wiring separately from high-current switching conductors and other sources of electrical interference.
Use the designated rack communication interfaces for external connections. Maintain proper cable shielding and grounding practices according to the applicable 3500 system installation documentation.
Before commissioning, verify the 24 VDC supply, rack configuration, module identification, communication paths, and TMR configuration. Then confirm that the rack recognizes the installed module and that monitor-channel comparison and voting functions operate as configured.
