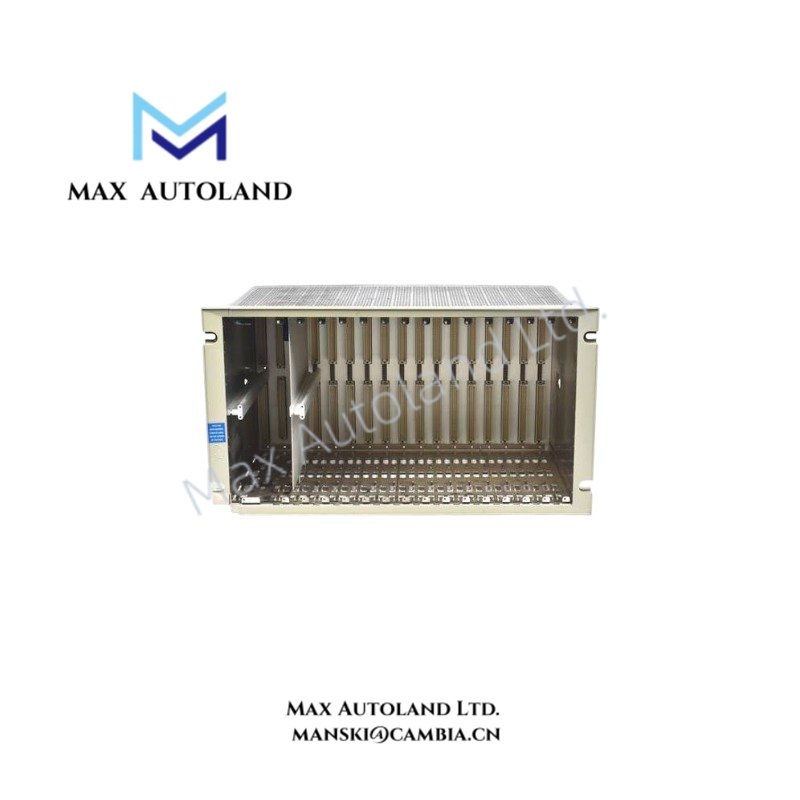

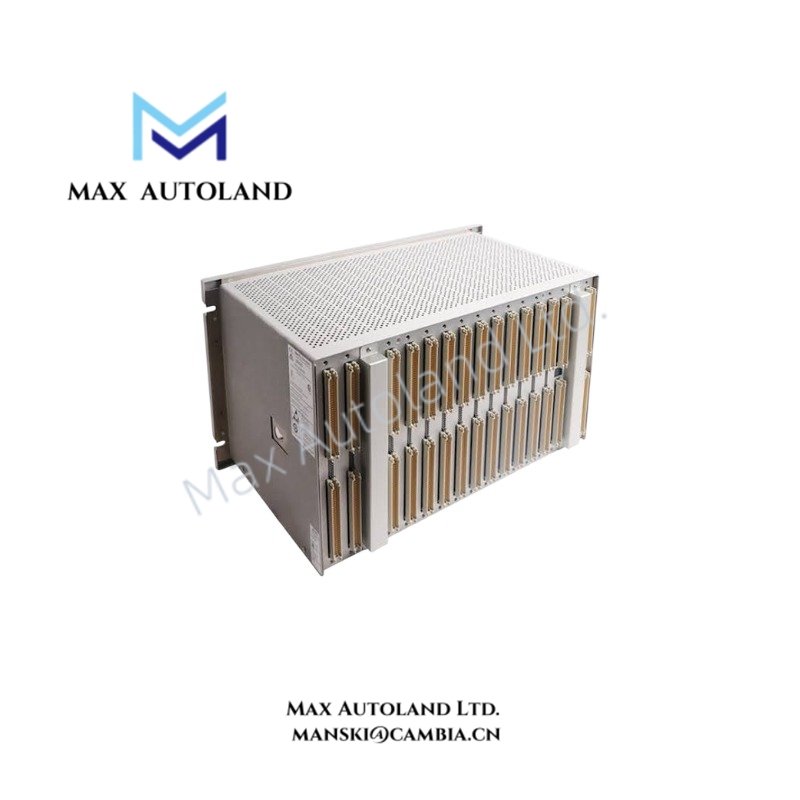

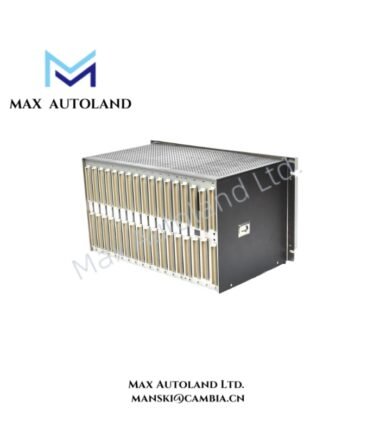

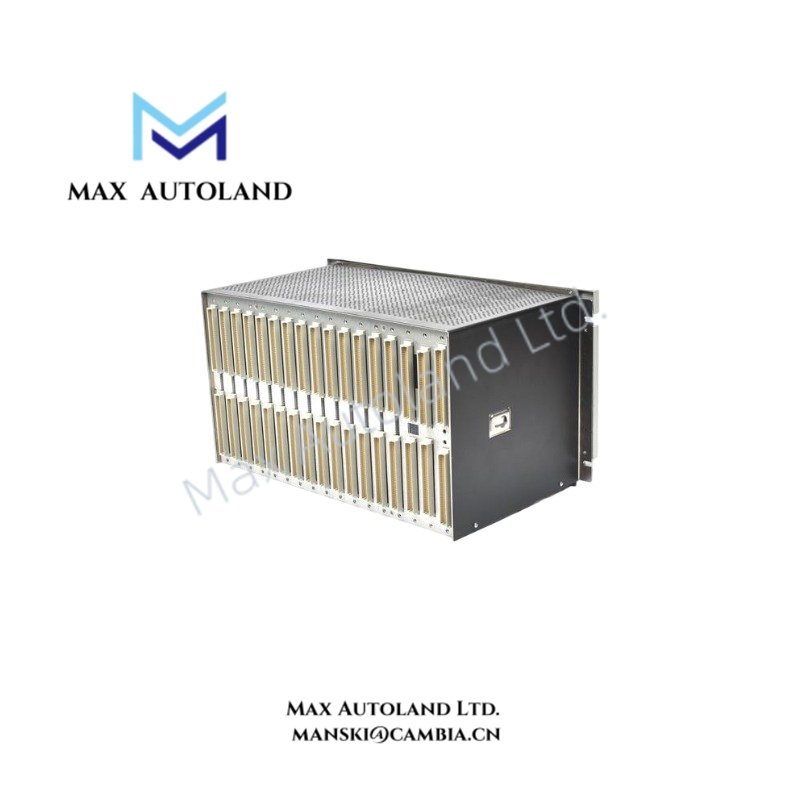

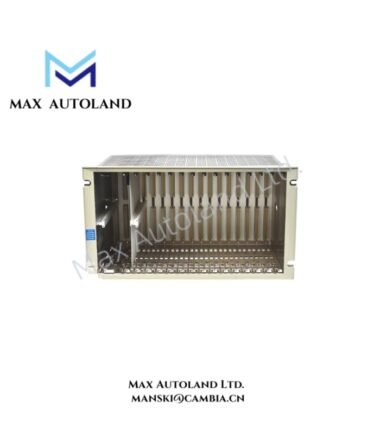

Overview
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 3500/05-02-04-01-00-00 |
| Brand | Bently Nevada |
| Product Type | Mini-Rack |
| System Platform | 3500 Machinery Protection System |
| Origin | USA |
| Weight | 4.75 kg |
| Dimensions | 30.5 x 26.7 x 26.5 cm (shipping size) |
| Rack Size | 12-inch Mini-Rack, 7 module slots |
| Mounting Type | Panel Mount with rear wiring access |
| Operating Temp | -20 deg C to +65 deg C |
| Storage Temp | -40 deg C to +85 deg C |
| Relative Humidity | Up to 95% RH, non-condensing |
| Power Consumption | Rack-dependent; supplied by installed 3500 power supply modules |
| Agency Approval | CSA/NRTL/C |
| Module Capacity | One power supply position and six monitoring module positions |
| Backplane Function | Module communication interconnection and power distribution |
Eddy-Current Signal Integration and Rotor Monitoring Characteristics
The 3500/05 Mini-Rack provides the mechanical and electrical infrastructure required for Bently Nevada machinery monitoring modules. Moreover, the rack supports installation of vibration, position, speed, temperature, relay, and communication modules through its integrated backplane system.
The installed monitor modules process TSI-related signals, including eddy-current probe measurements, shaft position data, and vibration parameters. Therefore, the rack configuration maintains consistent signal routing between monitoring modules, communication interfaces, and power supply units.
The 3500 platform uses probe input processing methods that support gap voltage validation with typical -10 VDC target conditions for eddy-current proximity measurement systems. In addition, the modular rack architecture supports rotor dynamics analysis by maintaining stable communication paths between vibration monitoring channels and system interfaces.
The backplane design separates module power distribution and communication functions, which helps reduce signal interference and supports cross-talk suppression requirements between adjacent monitoring channels.
Frequently Asked Questions
Q: How many modules can the 3500/05-02-04-01-00-00 Mini-Rack install?
A: The rack provides seven module slots. One slot is allocated for the power supply module, while the remaining six slots accept compatible 3500 monitoring, relay, communication, or interface modules.
Q: Does the Mini-Rack support redundant power supply installation?
A: Yes. The rack design allows installation of dual power supply modules when system configuration requires redundant power operation. The installed power supplies manage automatic power source transfer functions.
Q: Can the rack directly process vibration or position signals?
A: No. The rack provides mounting, backplane communication, and power distribution functions. Dedicated 3500 monitor modules perform signal measurement and processing.
Field Installation Guidelines
Install the 3500/05-02-04-01-00-00 Mini-Rack inside an enclosure that provides mechanical protection and suitable environmental control. Ensure the panel mounting surface maintains proper support for the rack chassis and connected field wiring.
Connect field cables according to the installed module requirements. Keep signal wiring separated from high-voltage power conductors to reduce electromagnetic interference. Use appropriate cable shielding and connect shields according to the plant grounding practice.
Verify the rack backplane connections before inserting modules. Confirm that power supply modules, monitoring modules, and communication modules seat correctly in their assigned slots.
Before system operation, check the installed module configuration, power input wiring, and communication interface connections. Confirm that all monitoring channels receive valid input signals and that system status indicators show normal operation.
