Overview
The Bently Nevada TK3 Proximity System Test Kit provides fast and accurate verification for proximity transducer monitoring systems in rotating machinery environments. Engineers use this portable testing solution to evaluate probe performance, verify calibration conditions, and troubleshoot vibration monitoring systems during maintenance activities.
Designed for field technicians and predictive maintenance specialists, the TK3 test kit supports efficient diagnostics across turbines, compressors, pumps, generators, and other critical industrial assets. Moreover, the compact structure simplifies transportation between plant locations and maintenance workshops.
The TK3 system helps maintenance teams reduce downtime by identifying sensor issues before unexpected machinery failures occur. In addition, the test kit supports reliable condition monitoring practices in power generation, oil and gas, petrochemical, and manufacturing facilities.
Bently Nevada developed this solution for compatibility with proximity probe systems commonly used in machinery protection and vibration analysis applications. Therefore, technicians can complete testing procedures quickly without removing installed transducers from operating systems.
Functional Highlights
- Portable test kit designed for proximity transducer system verification
- Supports field calibration checks and troubleshooting procedures
- Compatible with many Bently Nevada proximity probe systems
- Helps technicians validate probe gap voltage performance accurately
- Rugged carrying configuration supports industrial maintenance environments
- Simplifies machinery monitoring inspections during planned shutdowns
- Reduces unnecessary sensor replacement and maintenance labor costs
- Improves diagnostic confidence during vibration monitoring analysis
Specification
| Parameter | Specification |
|---|---|
| Product Name | Bently Nevada TK3 Proximity System Test Kit |
| Manufacturer | Bently Nevada |
| Model Number | TK3 / TK-3E 177313-02-02-00 |
| Product Type | Proximity System Test Kit |
| Primary Function | Testing and verification of proximity transducer systems |
| Measurement Capability | Simulates shaft vibration and probe gap conditions |
| Supported Devices | Proximity probes, extension cables, and monitor systems |
| Compatible Systems | Bently Nevada 3300 and compatible proximity monitoring systems |
| Calibration Support | Enables probe calibration and system verification procedures |
| Signal Simulation | Dynamic displacement simulation for monitor testing |
| Probe Testing | Verifies probe linearity and response accuracy |
| Cable Testing | Detects extension cable faults and signal inconsistencies |
| Monitor Verification | Confirms monitor channel functionality and output stability |
| Adjustment Mechanism | Precision micrometer assembly for controlled displacement |
| Typical Components Included | Micrometer, probe holding fixture, test cables, adapters, carrying case |
| Portability | Compact portable field-service design |

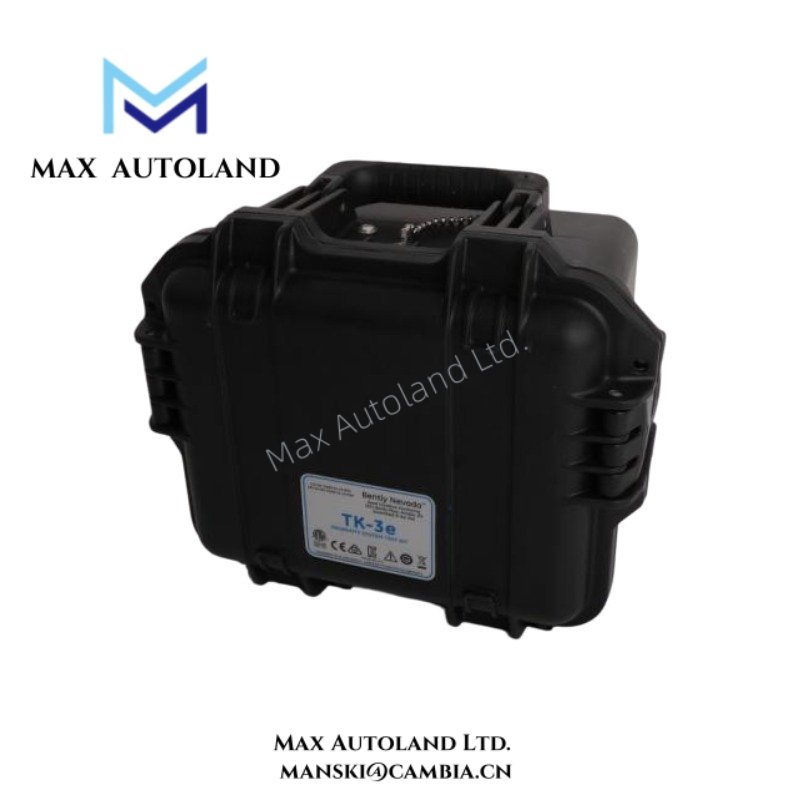

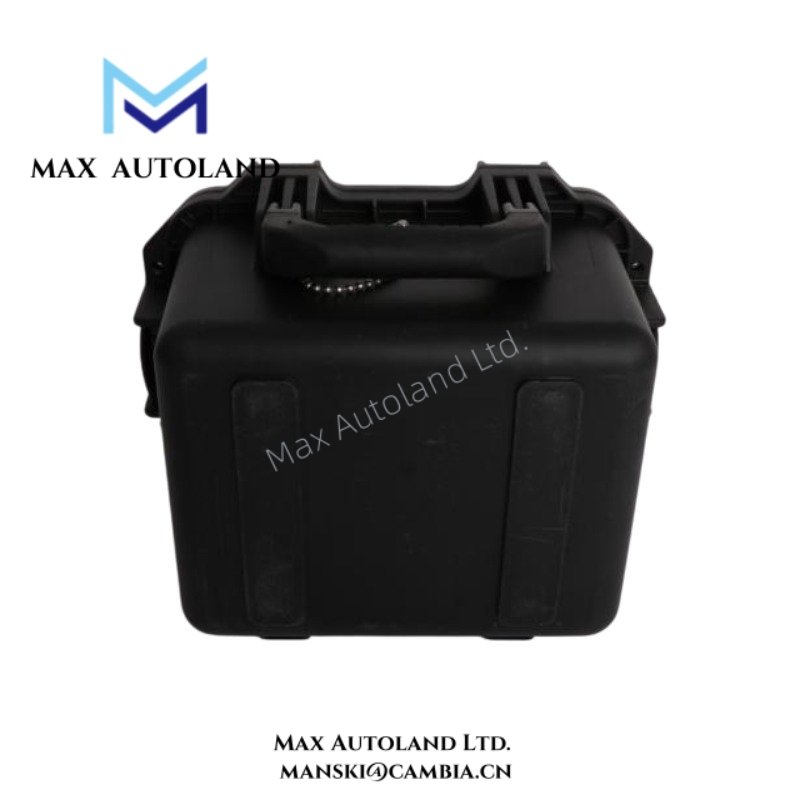

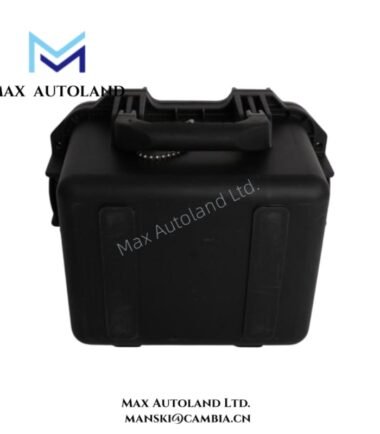

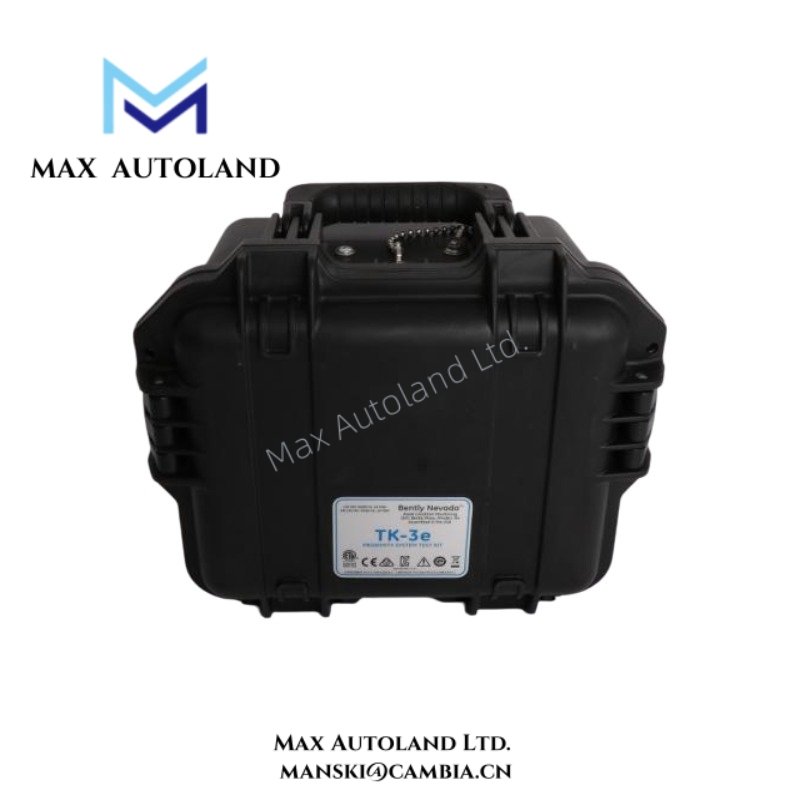

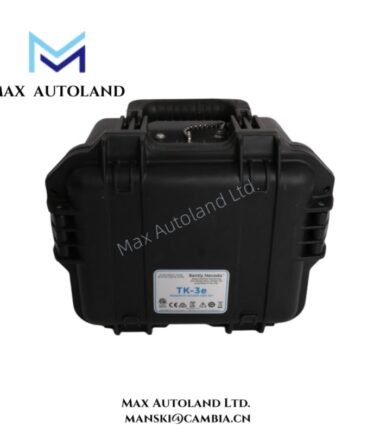

| Enclosure Type | Rugged industrial carrying case |
| Operating Environment | Suitable for maintenance workshops and field-service applications |
| Application Areas | Turbines, compressors, generators, pumps, motors, rotating machinery |
| Maintenance Purpose | Preventive maintenance, troubleshooting, commissioning, diagnostics |
| Service Advantage | Reduces unnecessary sensor replacement and minimizes downtime |
| Testing Method | Manual precision simulation and verification |
| Installation Requirement | No permanent installation required |
| Recommended Users | Reliability engineers, vibration analysts, maintenance technicians |
| Industrial Sectors | Power generation, oil and gas, petrochemical, mining, manufacturing |
| Reliability Benefit | Improves machinery protection system confidence and measurement accuracy |
| Diagnostic Capability | Supports rapid fault isolation during maintenance procedures |
| Mobility Advantage | Easy transportation between plant areas and maintenance sites |
| Maintenance Frequency | Suitable for scheduled and routine condition monitoring verification |
| Product Condition Availability | Co |
FAQ
Q1: What is the main purpose of the Bently Nevada TK3 test kit?
A1: The TK3 kit verifies and tests proximity probe systems used in vibration monitoring applications.
Q2: Which industries commonly use the TK3 Proximity System Test Kit?
A2: Power generation, oil and gas, petrochemical, and heavy manufacturing industries frequently use this toolkit.
Q3: Can the TK3 kit help reduce machinery downtime?
A3: Yes, the system identifies sensor and cable issues quickly before unexpected machinery failures occur.
Q4: Is the TK3 kit portable for field maintenance work?
A4: Yes, the compact carrying case supports convenient transportation between maintenance locations.
Q5: What equipment can technicians test with the TK3 system?
A5: Technicians can test proximity probes, extension cables, and associated monitoring channels.
Q6: Why do maintenance teams use proximity system test kits regularly?
A6: Regular testing improves vibration monitoring accuracy and supports predictive maintenance strategies.
