Overview

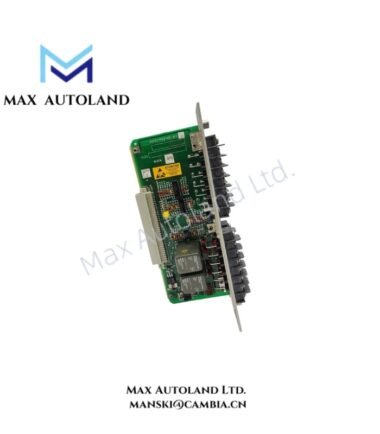

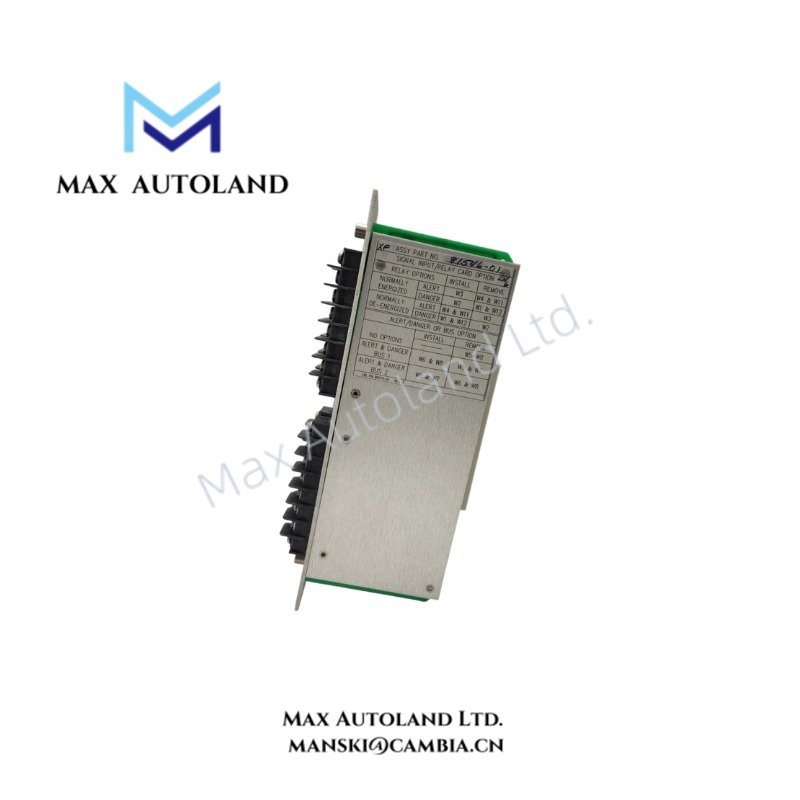

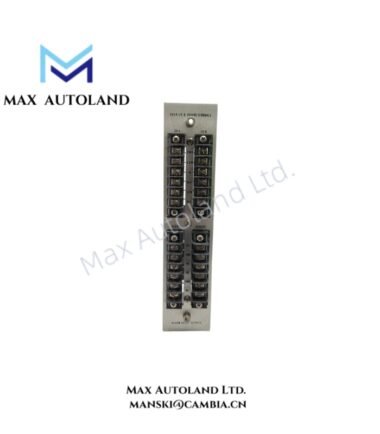

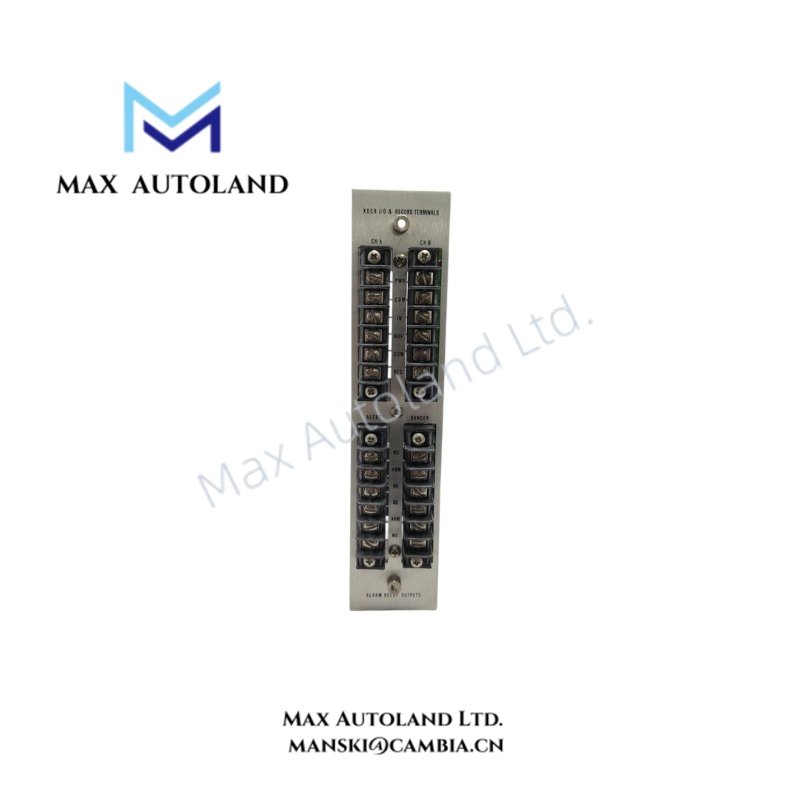

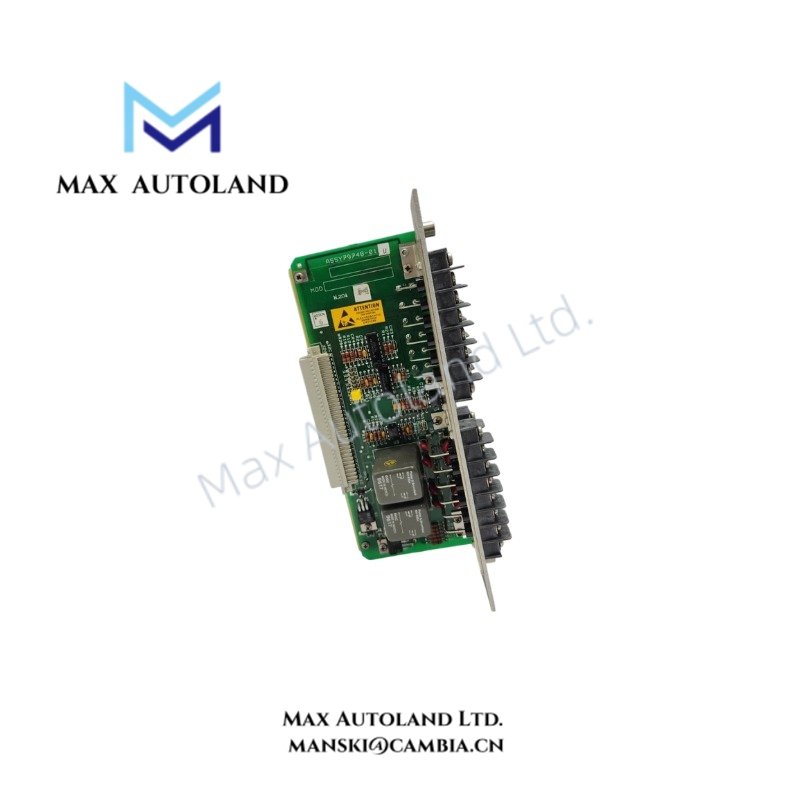

The Bently Nevada 80074-01, also cataloged as the 80074-01 Seismic Module, processes vibration signals from seismic transducers within compatible machinery monitoring architectures. The module receives measurements from casing-mounted or bearing-housing sensors, including velocity sensors and accelerometers. It supports the evaluation of structural vibration signals associated with rotating and reciprocating machinery.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 80074-01 |
| Brand | Bently Nevada |
| Manufacturer | Bently Nevada, Baker Hughes / GE |
| Product Type | Seismic Module / Vibration Monitoring Input Module |
| System Compatibility | Compatible Bently Nevada machinery protection racks and monitoring frameworks; verify exact rack and monitor compatibility |
| Input Signal Types | Seismic transducer signals, including velocity and acceleration measurements |
| Measurement Target | Machine casing or bearing-housing vibration |
| Primary Function | Seismic vibration signal acquisition and monitoring |
| Application | Machinery protection and condition monitoring |
Seismic Vibration Signal Processing
The 80074-01 receives physical vibration signals from externally mounted seismic transducers. These sensors measure absolute or casing vibration rather than shaft-relative displacement from an eddy-current probe.
The monitoring system uses the acquired vibration signals to evaluate mechanical movement and structural response. Therefore, engineers must match the module’s input characteristics with the installed sensor type, signal range, wiring arrangement, and host monitoring hardware.
For installations that also use eddy-current proximity probes, engineers should verify the separate probe conditioning, gap voltage, and signal scaling requirements. The supplied data does not establish that the 80074-01 directly performs eddy-current probe processing.
Frequently Asked Questions
Q: What type of sensors does the Bently Nevada 80074-01 accept?
A: The supplied information identifies velocity sensors and accelerometers as compatible seismic transducer types. Confirm the exact sensor electrical characteristics against the applicable technical documentation.
Q: Does the 80074-01 measure shaft-relative displacement?
A: The supplied description identifies casing or absolute vibration measurement. It does not establish direct shaft-relative displacement measurement. Verify the required measurement principle before installation.
Q: Can the module operate in any Bently Nevada monitoring rack?
A: No universal rack compatibility is established by the supplied data. Confirm the correct rack, backplane interface, monitor configuration, and electrical requirements before installation.
Field Installation Guidelines
- Verify system compatibility: Confirm the module’s approved rack position, host monitor, backplane interface, and associated hardware using the applicable Bently Nevada documentation.
- Confirm sensor characteristics: Match the seismic transducer type, output signal, measurement range, and electrical interface with the module’s documented input requirements.
- Check mechanical mounting: Secure the seismic sensor to the specified casing or bearing-housing location. Use the mounting method and surface preparation specified by the sensor manufacturer.
- Separate signal wiring: Route low-level vibration signal cables away from high-current power conductors, switching devices, and strong electromagnetic interference sources.
- Apply appropriate shielding: Follow the system wiring documentation for cable shield termination and grounding. Avoid unintended ground loops.
- Inspect cable integrity: Check connector seating, terminal condition, cable continuity, and sensor polarity where applicable.
- Validate the measurement loop: Confirm the sensor output and signal response before placing the monitoring channel into service.
- Document commissioning results: Record the installed sensor identity, channel assignment, wiring arrangement, and baseline vibration readings.
