Overview
Hardware Specifications
| Parameter | Specification |
|---|---|

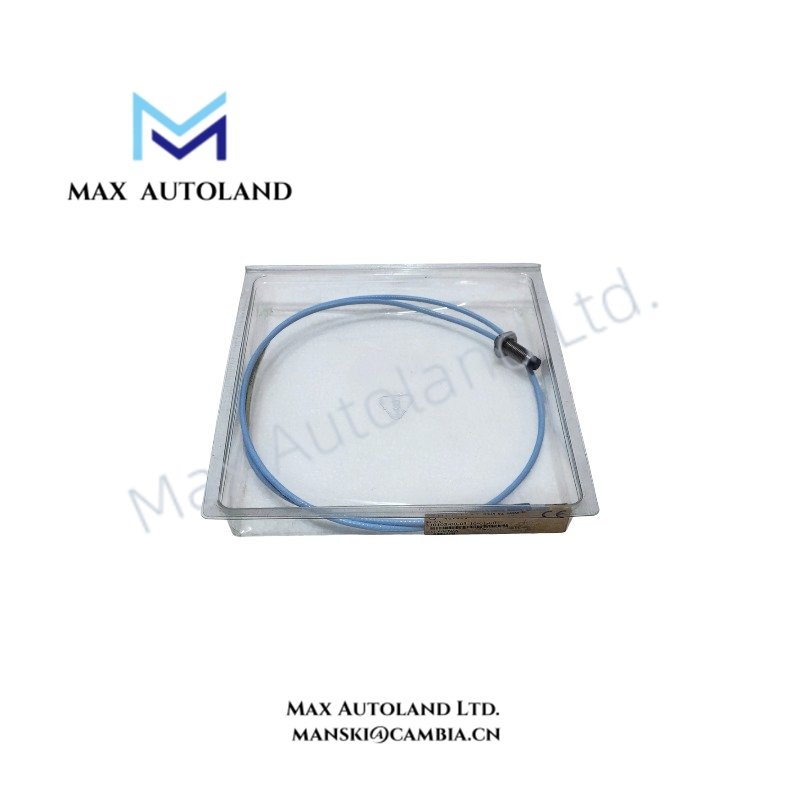

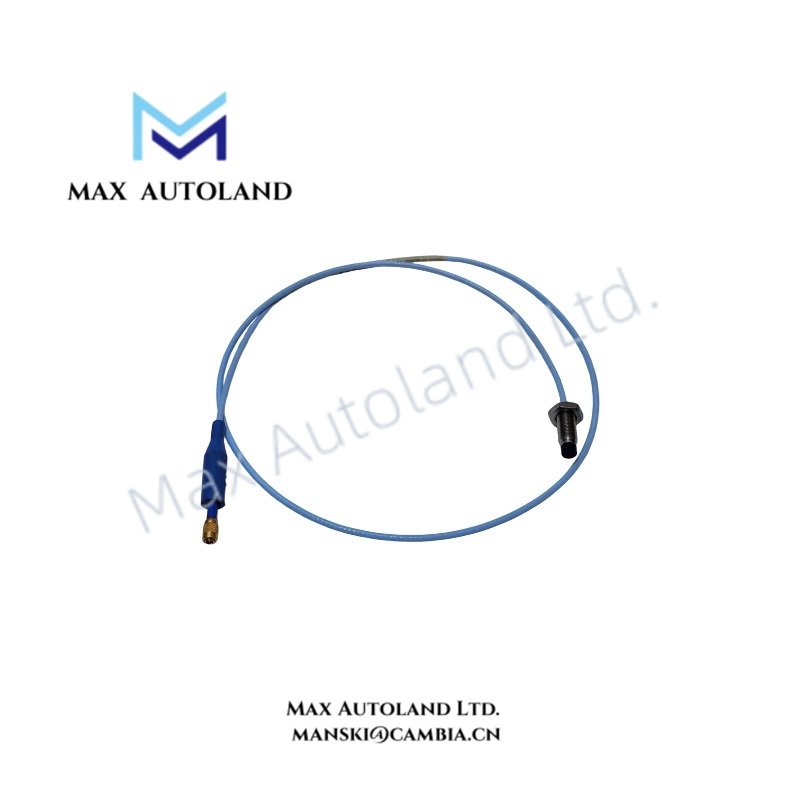

| Model | 330103-00-03-10-01-00 |
| Brand | Bently Nevada |
| Product Series | 3300 XL 8 mm Proximity Probe |
| Product Type | Eddy-Current Proximity Sensors |
| Origin | USA |
| Shipment Location | Xiamen, China |
| Weight | 0.12 kg |
| Dimensions | 1.8 x 1.6 x 123 cm estimated shipping size |
| Thread Type | M10 x 1 |
| Armor Option | Without armor |
| Unthreaded Length Option | 0 mm |
| Overall Case Length Option | 30 mm |
| Total Length Option | 1.0 meter (3.3 feet) |
| Cable Type | Standard cable |
| Connector Type | Miniature coaxial ClickLoc connector with connector protector |
| Power Consumption | Passive probe element, powered by compatible proximity system |
Eddy-Current Probe Scaling and Rotor Dynamic Measurement
The 330103-00-03-10-01-00 uses eddy-current probe scaling principles to convert shaft displacement into electrical output signals for proximity monitoring applications. The probe operates with compatible Bently Nevada proximity transducer systems to measure relative shaft position and vibration behavior.
The probe design supports gap voltage validation procedures during installation. Technicians typically verify probe gap conditions against system operating targets, including the standard Bently Nevada -10 VDC gap voltage reference used for proper signal range confirmation.
Furthermore, the 3300 XL 8 mm probe supports rotor dynamics analysis by providing displacement feedback from rotating machinery shafts. The miniature coaxial ClickLoc connector maintains signal connection integrity between the probe and extension cable assembly while the connector protector provides mechanical protection at the connection point.
Frequently Asked Questions
Q: What type of measurement does the 330103-00-03-10-01-00 provide?
A: The probe provides non-contact shaft displacement measurement using eddy-current sensing technology within compatible Bently Nevada proximity monitoring systems.
Q: Does the 330103-00-03-10-01-00 include an armored cable section?
A: No. This configuration specifies an unarmored probe design with a standard cable and miniature coaxial ClickLoc connector.
Q: What installation verification should technicians perform after mounting?
A: Technicians should verify mechanical installation, cable routing, connector engagement, and electrical gap voltage conditions before placing the monitoring channel into service.
Field Installation Guidelines
Install the 330103-00-03-10-01-00 probe using the specified M10 x 1 mounting thread and maintain proper mechanical alignment with the monitored shaft surface.
Route the probe cable away from high-current power conductors and strong electromagnetic interference sources. Use appropriate cable support methods to prevent excessive bending stress near the connector area.
Before operation, verify the probe gap voltage and confirm that the proximity system receives a stable displacement signal. Ensure the miniature coaxial ClickLoc connector is fully engaged and protected from mechanical impact or contamination.
Maintain proper shielding and grounding practices according to the installed Bently Nevada monitoring system configuration to reduce electrical noise during vibration and displacement measurements.
