Overview

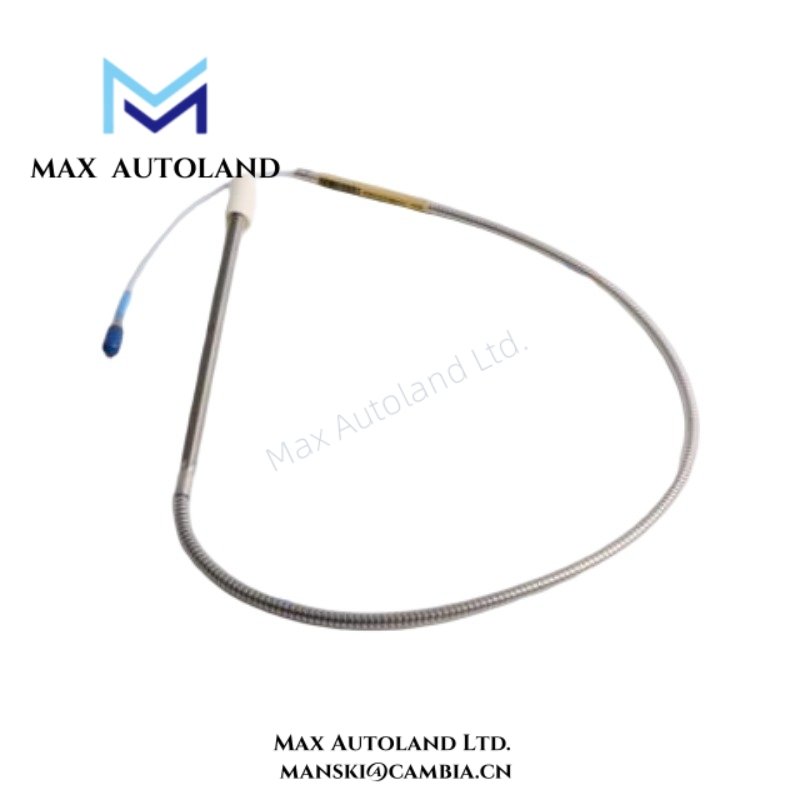

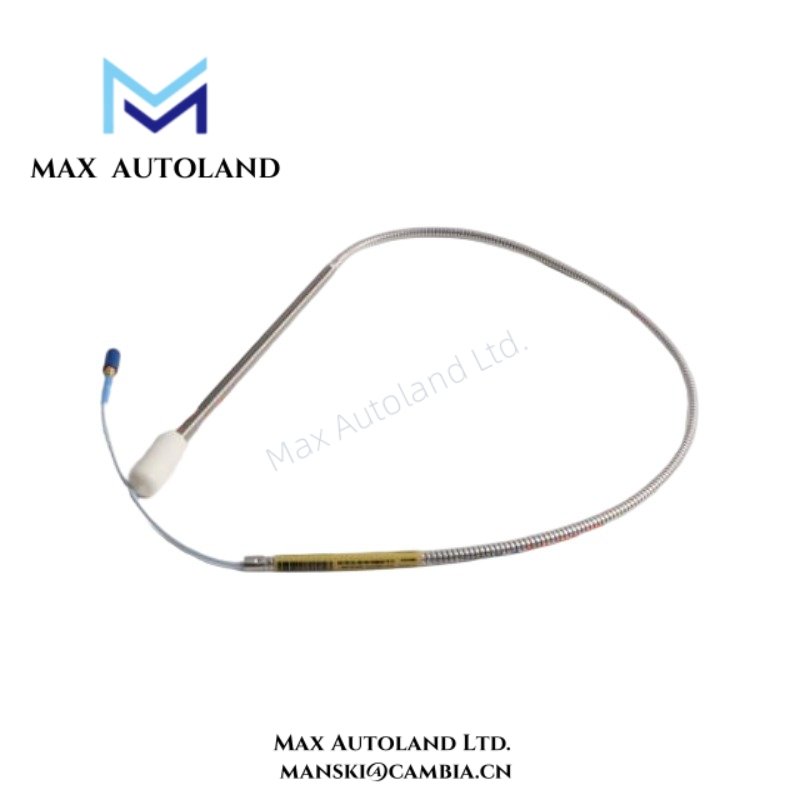

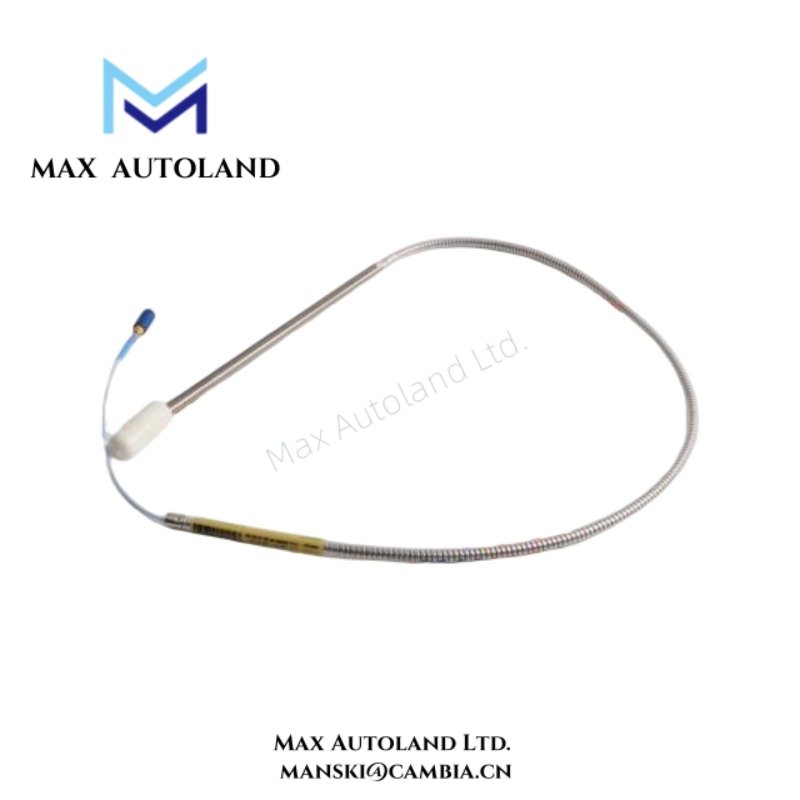

As part of the trusted 3300 XL NSV Proximity Transducer family, this model supports a wide range of rotating equipment monitoring systems. Moreover, it maintains stable signal performance under demanding conditions involving heat, vibration, and continuous mechanical movement.
Engineers often choose this sensor for centrifugal compressors, compact pumps, gearboxes, and small motor assemblies. In addition, its compact structure simplifies installation in confined equipment layouts. Therefore, maintenance teams can strengthen predictive maintenance programs while reducing unexpected machine downtime.
Main Features and Functional Benefits
- Designed for narrow installation spaces and compact target applications.
- Provides reliable non-contact vibration and shaft displacement measurement.
- Integrates smoothly with Bently Nevada 3300 XL NSV monitoring architectures.
- Supports continuous machinery health monitoring and equipment protection programs.
- Performs consistently in industrial environments requiring long-term operational stability.
- Delivers repeatable measurement accuracy across dynamic rotating equipment systems.
- Moreover, the compact sensor design helps engineers solve challenging installation constraints.
- For instance, technicians frequently deploy this model in machinery where conventional probes exceed available space limits.
- Therefore, users can improve equipment visibility without extensive mechanical modification.
Specifications
| Parameter | Specification |
|---|---|
| Brand | Bently Nevada |
| Product Series | 3300 XL NSV Proximity Transducer System |
| Model Number | 330909-00-99-10-02-00 |
| Product Type | Proximity Sensor / Proximity Probe |
| Measurement Principle | Non-contact Eddy Current Technology |
| Primary Function | Shaft vibration and displacement monitoring |
| Sensor Technology | Inductive proximity sensing for rotating equipment |
| Application Category | Machinery Condition Monitoring |
| Monitoring Capability | Radial vibration, shaft position, dynamic movement detection |
| Mechanical Design | Compact NSV probe design for limited-space installations |
| Probe Diameter | NSV compact-style probe configuration |
| Probe Length Code | 99 |
| System Length Code | 10 |
| Connector / Cable Code | 02 |
| Configuration Code | 00 |
| Compatible System Family | Bently Nevada 3300 XL NSV System |
| Signal Type | Dynamic and static vibration monitoring signal |
| Mounting Style | Threaded industrial machinery installation |
| Installation Environment | Industrial rotating equipment environments |
| Target Material Compatibility | Conductive metallic machine components |
| Measurement Method | Non-contact shaft surface detection |
| Operating Function | Continuous online machinery monitoring |
| Intended Equipment | Compressors, pumps, turbines, motors, generators, gearboxes |
| Diagnostic Purpose | Predictive maintenance and equipment protection |
| Integration Capability | Compatible with machine protection and condition monitoring systems |
| Electrical Interface | Designed for use with compatible proximity transducer systems |
| Environmental Resistance | Suitable for vibration-intensive industrial environments |
| Reliability Characteristics | Stable signal transmission and long-term sensing consistency |
| Maintenance Requirement | Periodic inspection, calibration verification, connector integrity check |
| Industrial Applications | Oil & gas, power generation, petrochemical, heavy manufacturing |
FAQ
A1: The Bently Nevada 330909-00-99-10-02-00 is used for non-contact measurement of shaft vibration and displacement in rotating industrial machinery.
Q2: Which equipment can use the 3300 XL NSV Proximity Sensor?
A2: This sensor is commonly installed in compressors, pumps, turbines, motors, generators, and gearbox systems requiring continuous condition monitoring.
Q3: Why choose the 3300 XL NSV sensor instead of a standard proximity probe?
A3: The 3300 XL NSV sensor supports compact installations where standard proximity probes cannot fit because of limited mechanical space.
Q4: Can the 330909-00-99-10-02-00 integrate with machinery monitoring systems?
A4: Yes. It is designed to work with compatible Bently Nevada proximity transducer and machinery protection platforms.
Q5: Which industries commonly use this proximity sensor?
A5: Oil and gas, power generation, petrochemical, manufacturing, and heavy industrial facilities frequently use this sensor for rotating equipment monitoring.
Q6: How can users maintain reliable sensor performance over time?
A6: Proper installation, regular inspection, connector verification, and scheduled calibration checks help maintain stable long-term measurement accuracy.
