Overview

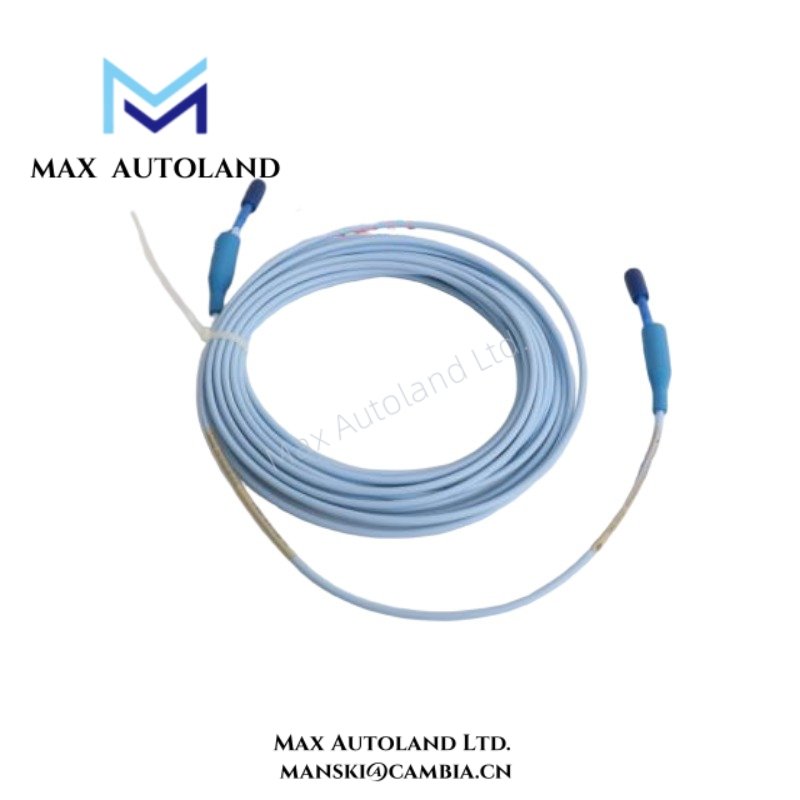

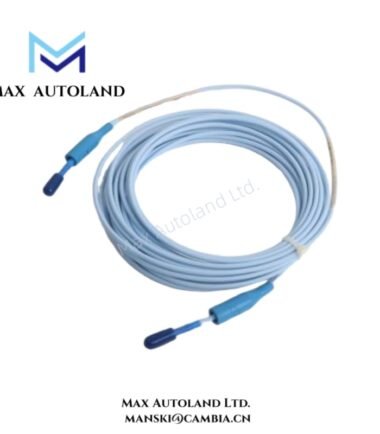

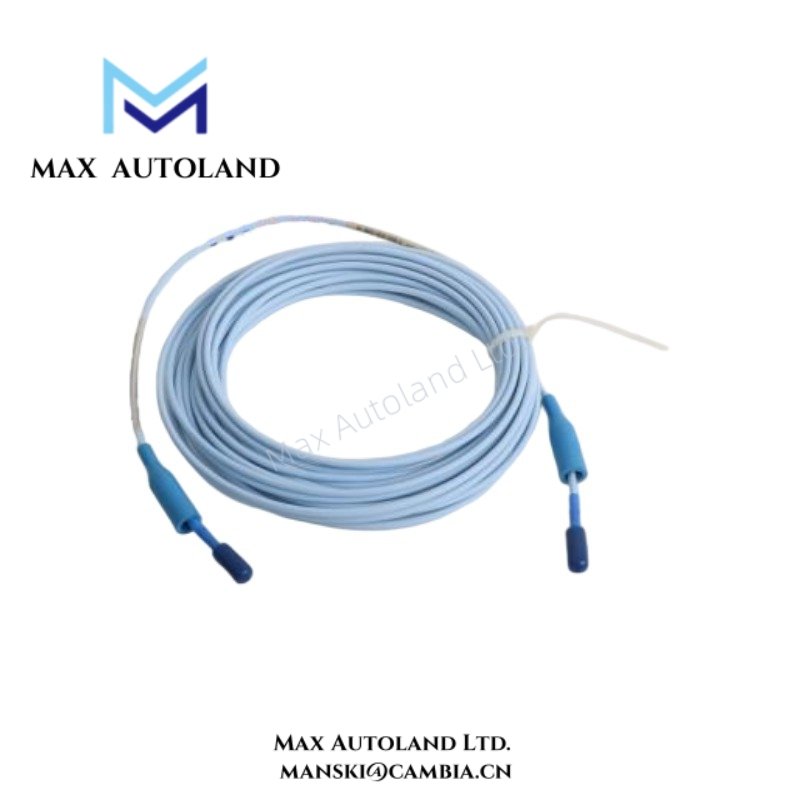

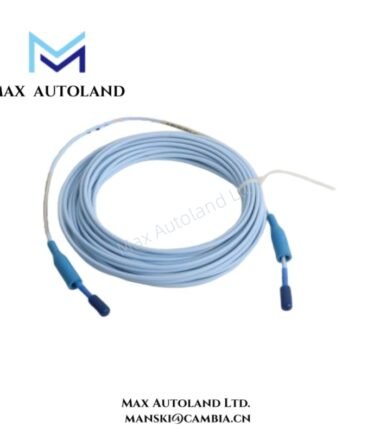

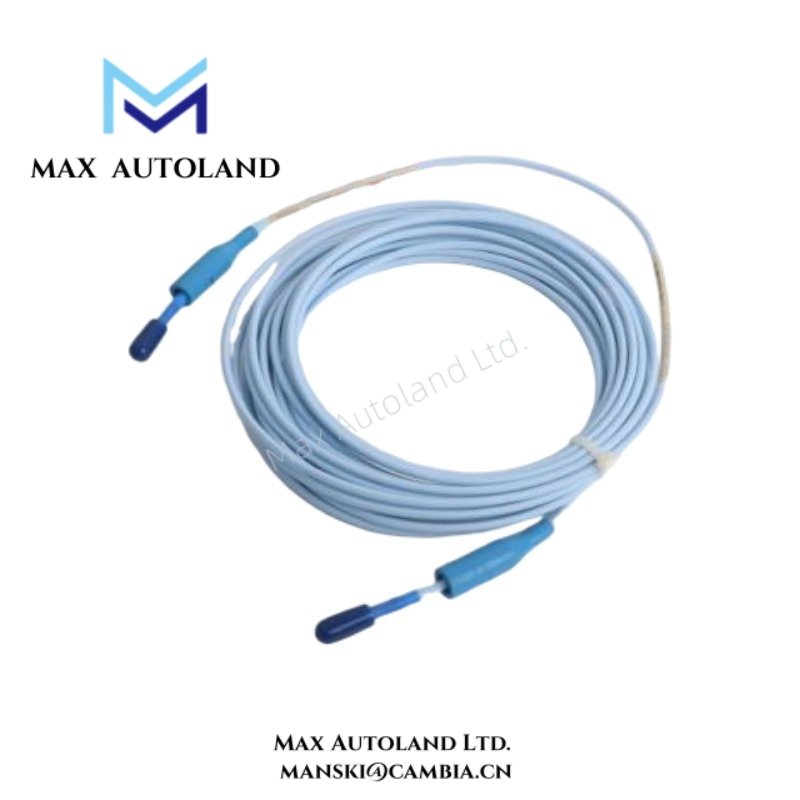

The Bently Nevada 330130-080-02-05 is a 3300 XL 8 mm standard extension cable developed for precision vibration monitoring and rotating equipment protection systems. It delivers a stable electrical connection between proximity probes and Proximitor® sensors within the proven 3300 XL transducer architecture.
Engineered for demanding industrial environments, this extension cable supports accurate signal transmission while preserving system calibration integrity. In addition, its rugged construction enhances durability and helps maintain dependable performance in continuous machinery monitoring applications.
The cable integrates seamlessly with compatible Bently Nevada 3300 XL 8 mm proximity transducer systems commonly installed on turbines, compressors, motors, pumps, and other critical rotating machinery. As a result, maintenance teams can achieve consistent monitoring accuracy across essential industrial assets.
Functional Highlights and Key Benefits
- Designed specifically for Bently Nevada 3300 XL 8 mm proximity transducer systems
- Supports stable and accurate signal transmission between the probe and Proximitor® sensor
- Preserves system matching accuracy and calibrated monitoring performance
- Features industrial-grade cable construction for harsh operating environments
- Integrates smoothly with machinery protection and condition monitoring systems
- Enhances long-term reliability in continuous vibration measurement applications
- Simplifies installation, maintenance, and component replacement procedures
Specifications
| Parameter | Specification |
|---|---|
| Brand | Bently Nevada |
| Model Number | 330130-080-02-05 |
| Product Type | Standard Extension Cable |
| Series | 3300 XL 8 mm Proximity Transducer System |
| Cable Category | Proximity Transducer Extension Cable |
| System Component Role | Connection between Probe and Proximitor® Sensor |
| Compatible Platform | Bently Nevada 3300 XL 8 mm Monitoring System |
| Primary Function | Vibration and position monitoring signal transmission |
| System Application | Rotating machinery condition monitoring |
| Country of Origin | United States |
| Installation Type | Field installation within transducer assemblies |
| Connector Style | ClickLoc™ Gold-Plated Connectors |
| Connector Protection Option | 02 = Standard Cable with Connector Protectors |
| Approval Option | 05 = CSA / ATEX / IECEx Approvals |
| Cable Length Code | 080 |
| Nominal Cable Length | 8.0 m (26.2 ft) |
| Cable Construction | Flexible Industrial Triaxial Cable |
| Cable Impedance | 75 Ω Triaxial Cable |
| Cable Insulation Material | Fluoroethylene Propylene (FEP) |
| Typical Cable Capacitance | 69.9 pF/m (21.3 pF/ft) |
| Operating Temperature Rating | Standard version up to 177°C (350°F) |
| Mechanical Pull Strength Design | CableLoc™ reinforced construction |
| Environmental Resistance | Designed for harsh industrial environments |
| Interchangeability | Compatible with calibrated 3300 XL system assemblies |
| Calibration Requirement | No individual component bench calibration required within matched system |
| System Compliance | Supports API 670 compatible 3300 XL system configurations |
| Maintenance Advantage | Fast replacement and simplified field servicing |
FAQ
The Bently Nevada 330130-080-02-05 serves as a standard extension cable within Bently Nevada 3300 XL 8 mm proximity transducer systems. It provides a reliable connection between the proximity probe and the Proximitor® sensor, thereby supporting accurate vibration monitoring and machinery protection functions.
Q2: Which systems support the 330130-080-02-05 cable?
The 330130-080-02-05 cable works with Bently Nevada 3300 XL 8 mm probes and Proximitor® sensor assemblies. In addition, it integrates seamlessly into compatible transducer configurations, ensuring stable signal transmission and consistent monitoring performance.
Q3: What is the cable length of model 330130-080-02-05?
Model 330130-080-02-05 includes the 080 length option, which indicates an 8.0-meter standard extension cable. As a result, users can apply it in installations that require extended probe-to-sensor connection distances.
Q4: Can this cable support industrial vibration monitoring applications?
Yes. The cable supports industrial vibration monitoring, machinery protection, shaft vibration measurement, and rotating equipment condition monitoring applications. Moreover, it helps maintain signal accuracy in continuous monitoring environments.
Q5: Where is the 330130-080-02-05 commonly installed?
Industrial operators commonly install the 330130-080-02-05 in turbines, compressors, motors, pumps, and power generation equipment. Therefore, it plays an important role in critical rotating machinery monitoring across demanding industrial sectors.
