Overview

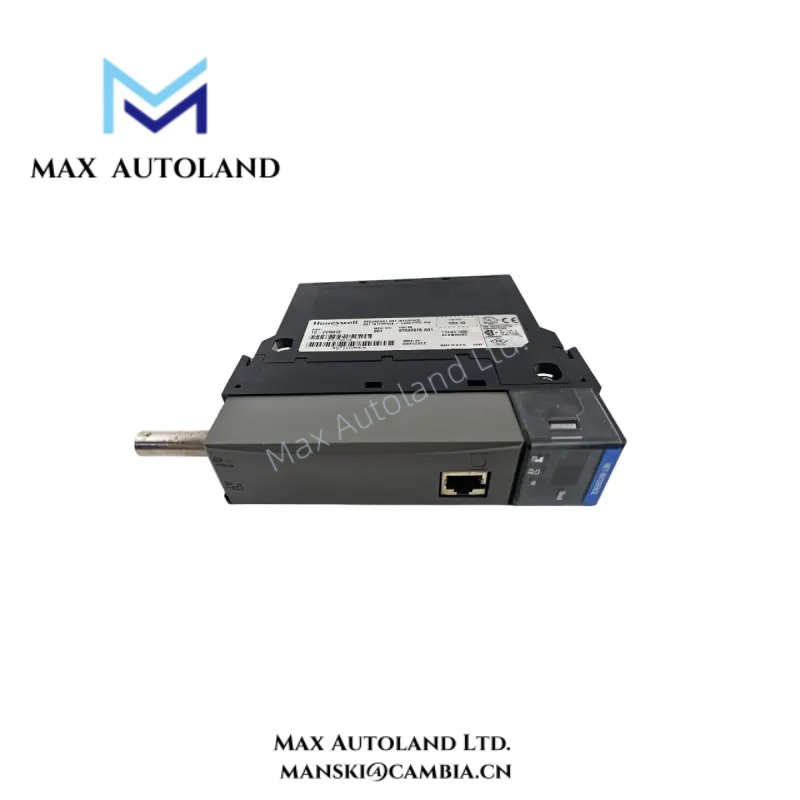

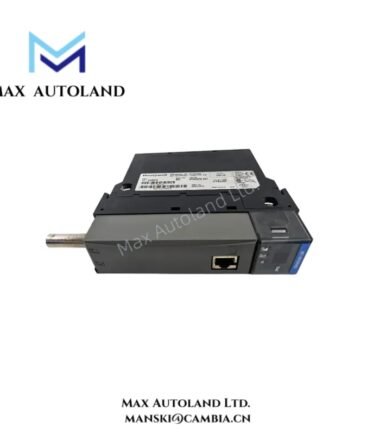

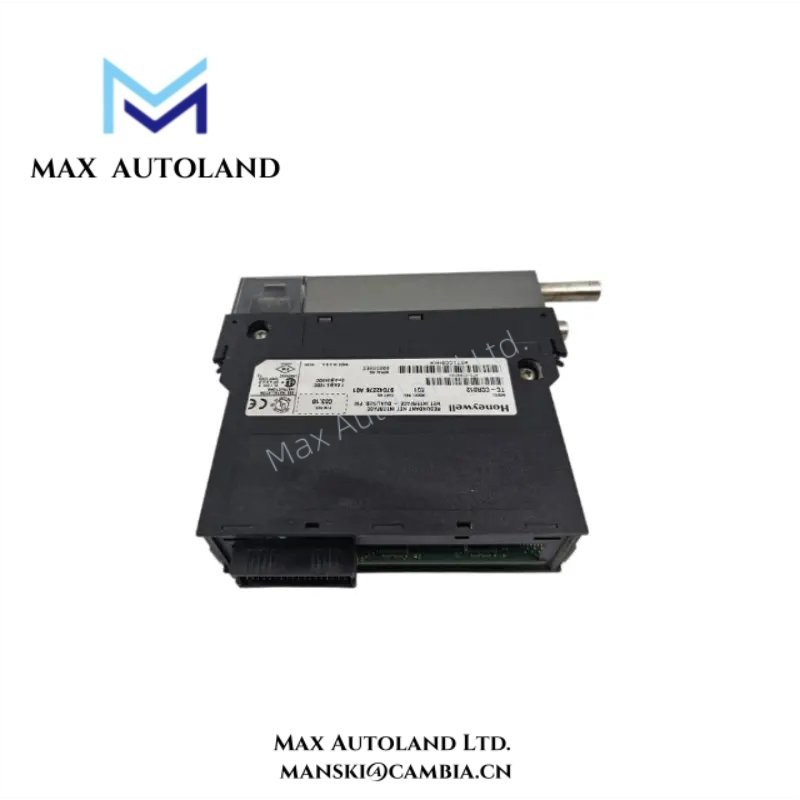

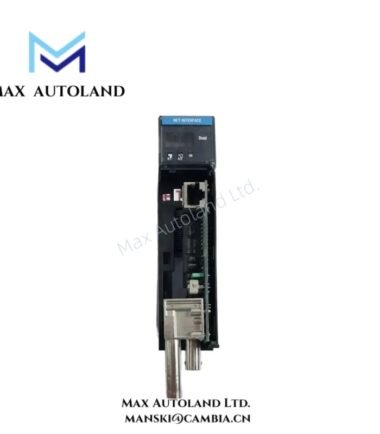

The TC-CCR012, part of Honeywell’s Experion PKS C200 series, is a high-performance redundant network interface module engineered for continuous industrial automation. It provides dual communication paths, ensuring uninterrupted data transfer even if one link fails. Moreover, the TC-CCR012 integrates seamlessly with other C200 modules, supporting robust network reliability across complex control systems.
In addition, this module operates efficiently in extreme industrial conditions, including fluctuating temperatures and electrical disturbances. Therefore, it is suitable for critical applications in chemical, power, and manufacturing plants requiring reliable process communication.
Specification
| Specification | Details |
|---|---|
| Model | TC-CCR012 |
| Series | Honeywell Experion PKS C200 |
| Module Type | Redundant Network Interface Module |
| Communication Interface | Dual redundant network paths (primary and secondary) |
| Supported Network Protocols | C200 proprietary network, compatible with standard fieldbus connections |
| Data Rate | Up to 10 Mbps |
| Connector Type | Standard C200 backplane connector |
| Power Supply | 24 VDC |
| Power Consumption | 3.5 W typical, 4.5 W maximum |
| Input Current | 150 mA typical, 200 mA max |
| Output Current | 100 mA per network port |
| LED Indicators | Status, fault, link activity |
| Operating Temperature Range | -10°C to +60°C |
| Storage Temperature Range | -40°C to +85°C |
| Relative Humidity | 5–95% non-condensing |
| Vibration Resistance | 5–9 Hz: 3.5 mm, 9–200 Hz: 2 g |
| Shock Resistance | 15 g for 11 ms |
| Altitude | Up to 2000 m |
| Dimensions (L×W×H) | 120 × 35 × 150 mm |
| Weight | 0.45 kg |
| Mounting | Standard C200 backplane |
| Certifications | CE, UL |
| MTBF (Mean Time Between Failures) | 120,000 hours |
| Environmental Protection | IEC 60529 IP20 rated (internal panel use) |
FAQ
Q1: Is the TC-CCR012 brand new and original?
A1: Yes, it is 100% brand new and factory original.
Q2: How quickly can it be shipped?
A2: Orders ship within 3 days to 2 weeks depending on quantity, using DHL or similar logistics.
Q3: What is the return policy if there is a defect?
A3: We support returns within 30 days if any quality issues occur.
Q4: Can the module operate under extreme conditions?
A4: Yes, it supports operation in temperatures from -10°C to 60°C and electrical disturbances.
Q5: Does the TC-CCR012 integrate with other C200 modules?
A5: Yes, it integrates seamlessly with the Honeywell Experion PKS C200 series architecture.
