Overview
Configured for relay-based signal routing in the Bently Nevada 3300/16 vibration monitoring architecture, the Bently Nevada 81546-01 (81546-01 Signal Input Relay Module) provides a dedicated hardware interface for channel transducer signals. The documented assembly uses a hermetically sealed relay and rear terminal connections. It is a separate relay assembly, not a complete two-channel vibration monitor or independent proximity transducer.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 81546-01 |
| Spare Model | ASSY79748-01 |
| Brand | Bently Nevada |
| Product Type | Signal Input Relay Module |
| Documented Assembly | Signal Input Relay Module |
| Compatible Monitor Family | 3300/16 |
| Relay Construction | Hermetically sealed relay |

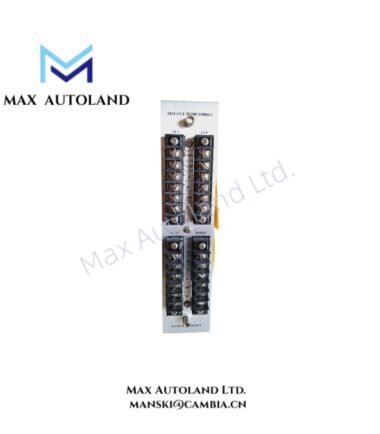

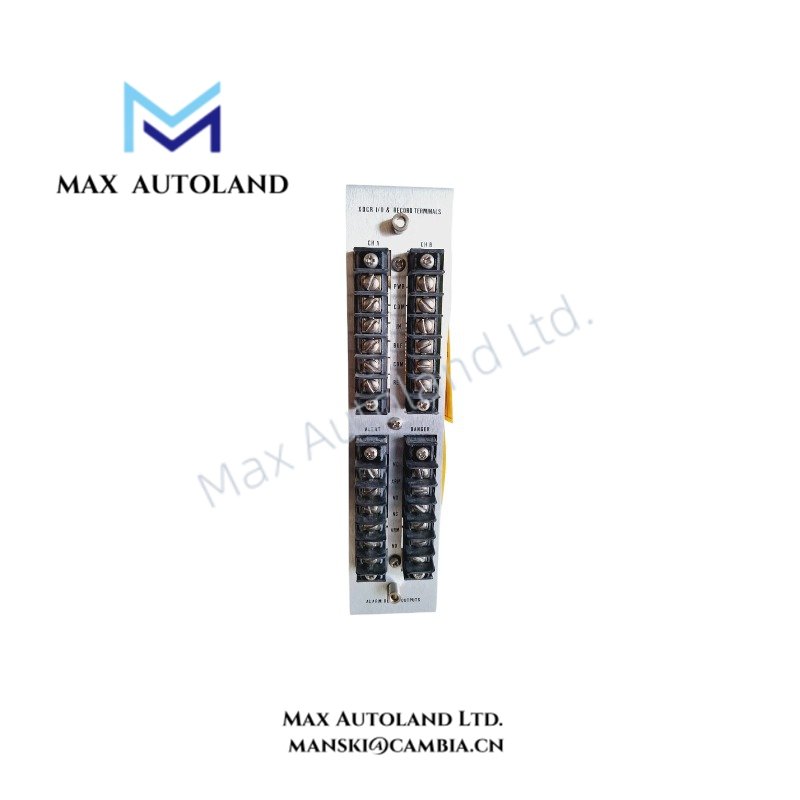

| Signal Connection | Rear terminal connection |
| Signal Function | Channel transducer signal routing |
| Monitor Configuration | Compatible dual vibration monitor |
| Assembly Requirement | Relay and barrier arrangement must match the installed configuration |
Mechanical Monitoring Signal Interface
The 81546-01 forms part of the signal path associated with a compatible Bently Nevada 3300/16 dual vibration monitor. Its rear terminal connection interfaces with channel transducer signals through the installed monitor arrangement.
Because the module is a relay assembly, technicians must distinguish it from the complete 3300/16 monitor. The relay does not independently perform the complete vibration measurement, signal processing, or monitoring function.
The historical spare-parts information identifies the 81546-01 with a hermetically sealed relay. Therefore, replacement selection should match the relay and barrier construction already installed.
Frequently Asked Questions
Q: Is the 81546-01 a complete 3300/16 vibration monitor?
A: No. It is a separately identified signal input relay module used with a compatible dual vibration monitor.
Q: What relay construction does the 81546-01 use?
A: The supplied manufacturer spare-parts information identifies the assembly with a hermetically sealed relay.
Q: Can the 81546-01 be selected without checking the installed monitor configuration?
A: No. Replacement selection should confirm the complete 3300/16 monitor catalog number, modification number, and installed relay and barrier arrangement.
Field Installation Guidelines
- Confirm the installed 3300/16 monitor catalog number and modification number before replacement.
- Verify that the relay and barrier arrangement matches the existing hardware configuration.
- Isolate the associated equipment and signal circuits according to the site maintenance procedure before removing the assembly.
- Identify and document rear terminal wiring before disconnecting the existing module.
- Maintain the original channel assignment when reconnecting transducer signal wiring.
- Route transducer signal wiring separately from high-current power conductors where the site wiring standard requires signal segregation.
- Maintain cable shielding and grounding practices specified for the installed 3300/16 system.
- Inspect terminal connections for secure mechanical engagement and correct conductor identification.
- After installation, verify channel signal continuity and the expected monitor response before returning the machinery protection circuit to service.
- Do not substitute a different relay or barrier arrangement without confirming compatibility with the installed 3300/16 configuration.
