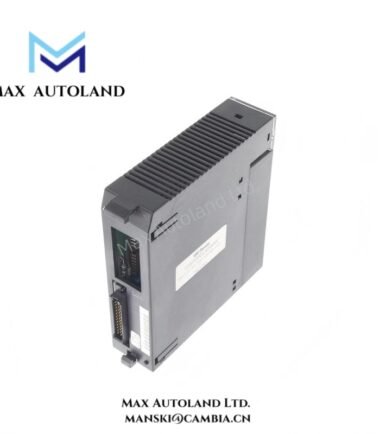

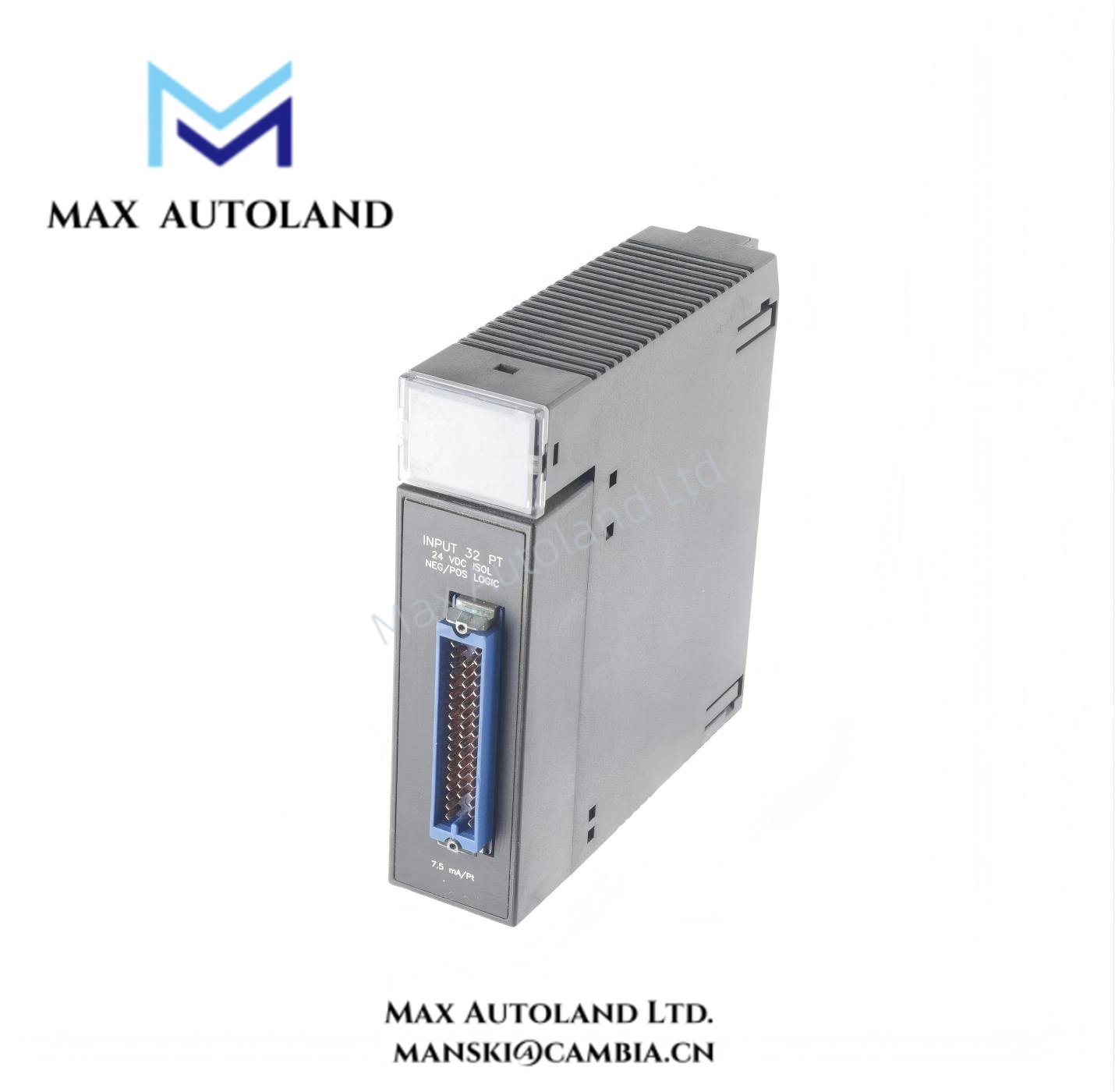

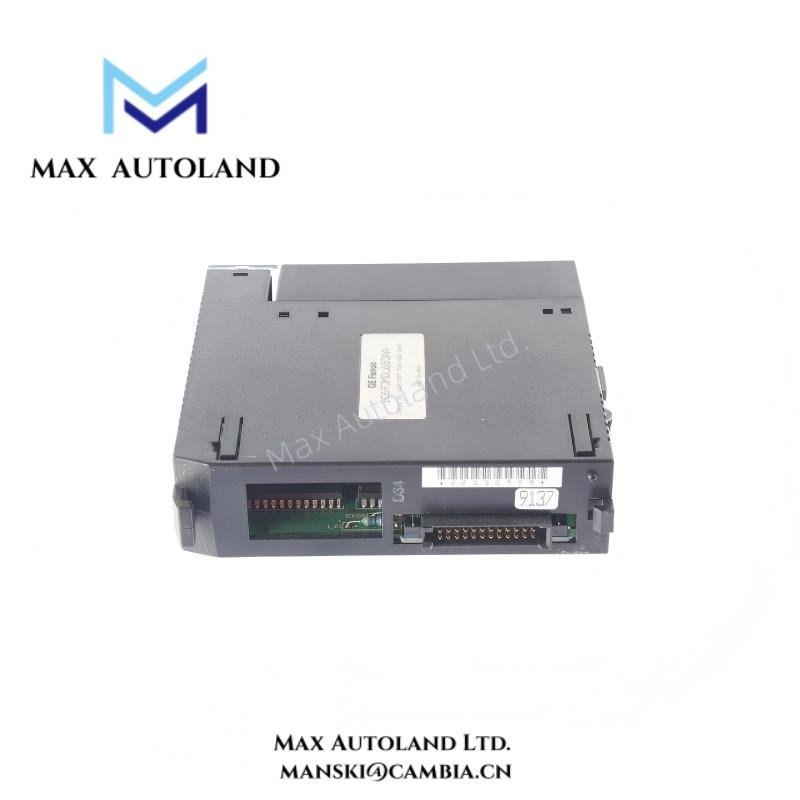

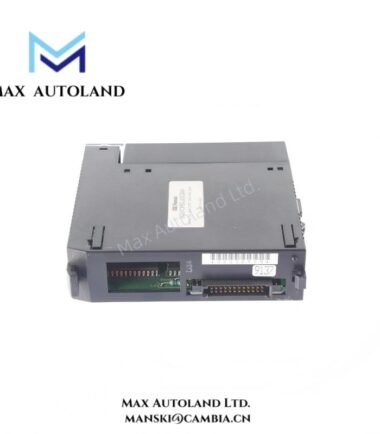

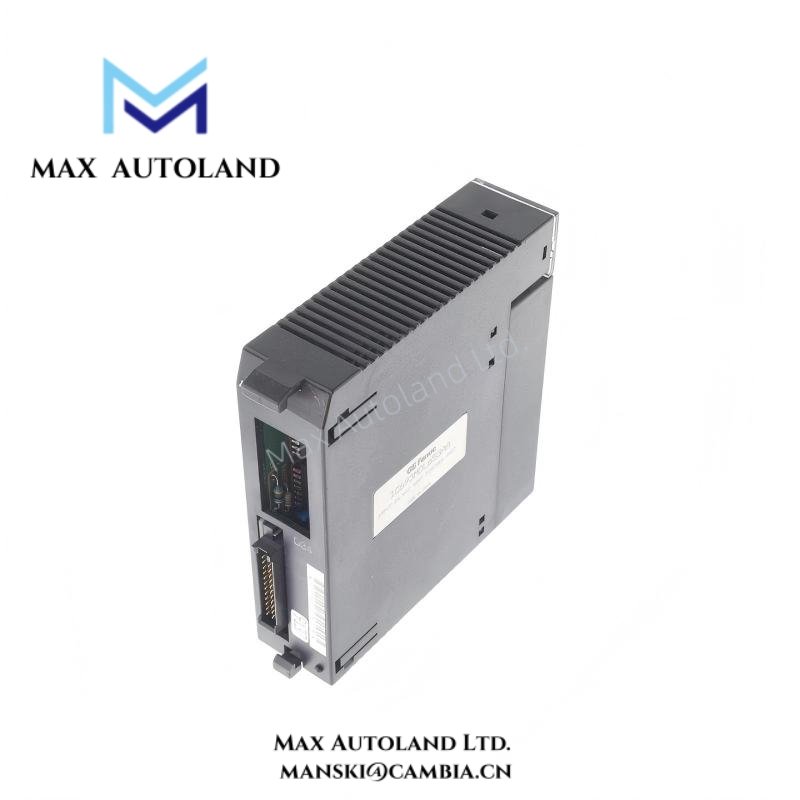

Overview
It integrates seamlessly with the GE Series 90-30 architecture in demanding automation environments.
Engineers select this module when consistent discrete input monitoring remains critical to process stability.
Moreover, it supports high-density I/O configurations within compact control cabinets.The module processes 32 discrete input points in a single slot.
Therefore, system designers can reduce rack space while maintaining signal visibility.
Its industrial-grade construction withstands electrical noise and fluctuating plant conditions.
Specification
| Parameter | Specification |
|---|---|
| Manufacturer | GE Intelligent Platforms |
| Model Number | IC693MDL653 |
| Series | GE Series 90-30 |
| Module Type | 32-Point DC Digital Input Module |
| Number of Input Points | 32 discrete inputs |
| Input Voltage Rating | 24 VDC nominal |
| Input Voltage Range | 0 to 30 VDC |
| ON State Voltage Range | 15 to 30 VDC |
| OFF State Voltage Range | 0 to 5 VDC |
| Input Current (ON State) | Approx. 7 mA per channel at 24 VDC |
| Input Impedance | Approx. 3.3 kΩ typical |
| Input Configuration | 4 isolated groups of 8 points |
| Isolation Type | Optical isolation field to backplane |
| Isolation Voltage | 1500 VAC for 1 minute (group to logic) |
| Response Time (ON to OFF) | ≤10 ms typical |
| Response Time (OFF to ON) | ≤10 ms typical |
| Backplane Current Draw | Approx. 260 mA at 5 VDC |
| External Power Requirement | 24 VDC field supply required |
| LED Indicators | 32 individual green LEDs for input status |
| Wiring Method | Removable terminal block |
| Mounting Location | Series 90-30 baseplate slot |
| Operating Temperature Range | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature Range | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity | 5% to 95% non-condensing |
| Vibration Resistance | Industrial standard panel vibration tolerance |
| Dimensions | Standard Series 90-30 module width |
| Weight | Approx. 0.45 kg (typical) |
| Certifications | CE, UL, CSA listed |
| Application Environment | Industrial automation and process control systems |
FAQ
Q1: What type of signals does the IC693MDL653 accept?
It accepts 24 VDC discrete digital input signals from field devices.
Q2: How many input points are available on this module?
The module provides 32 independent digital input channels.
Q3: Does it include isolation protection?
Yes, it features optical isolation between field wiring and the PLC backplane.
Q4: Which PLC platform supports this module?
It is designed for the GE Series 90-30 PLC system.
Q5: What applications commonly use this input module?
Manufacturing automation, packaging systems, and conveyor control frequently use it.
