Overview
Specification
| Parameter | Specification |
|---|---|
| Brand | GE Fanuc |

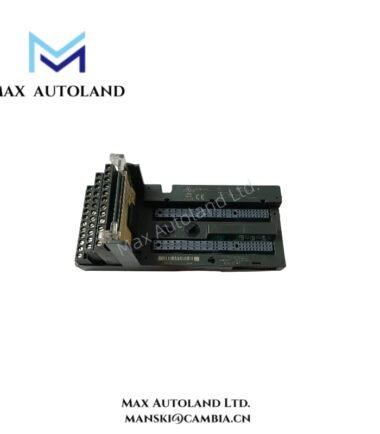

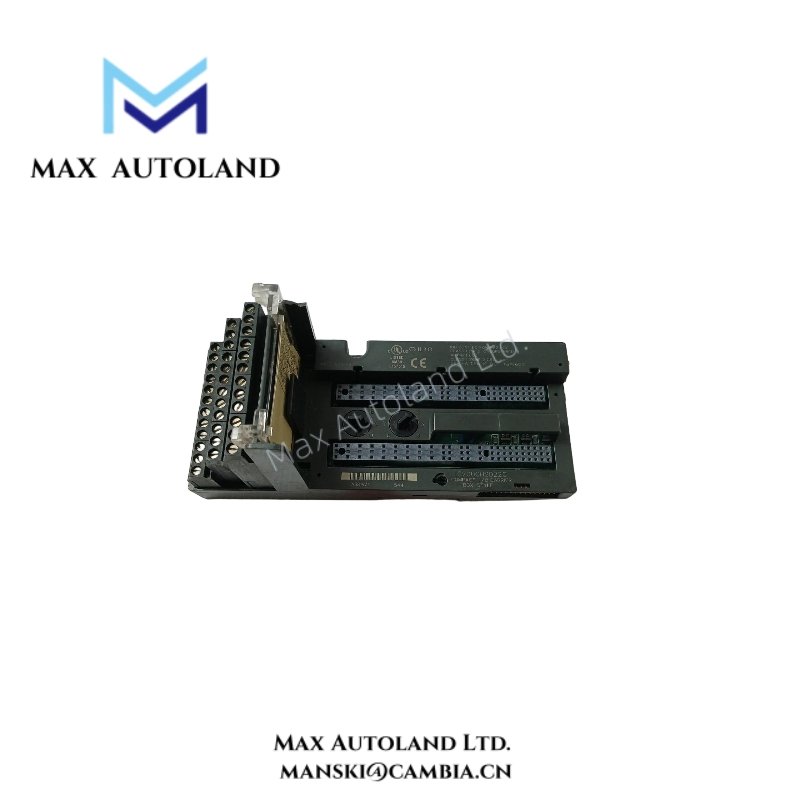

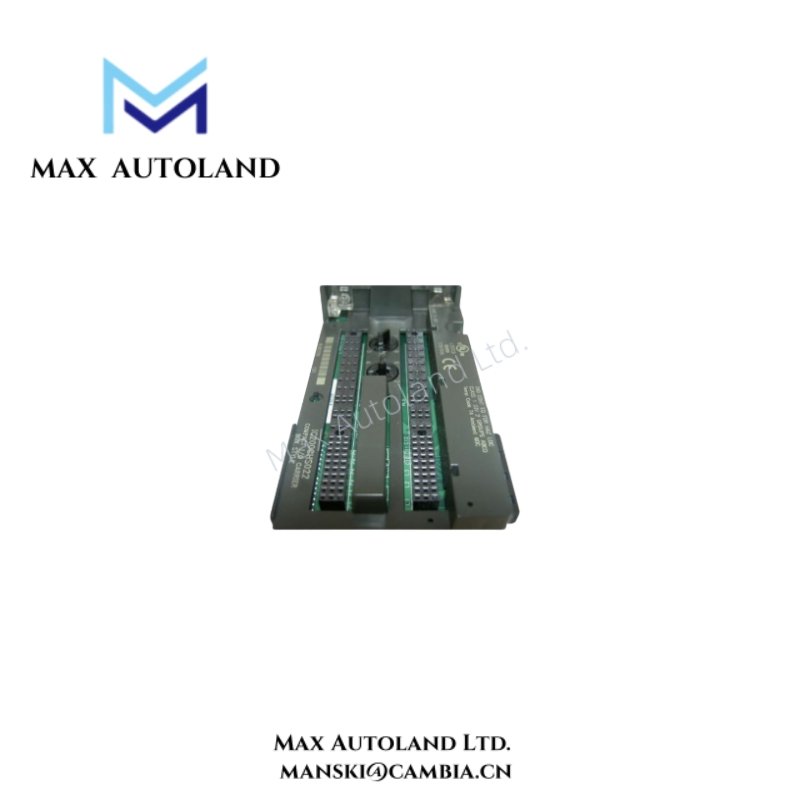

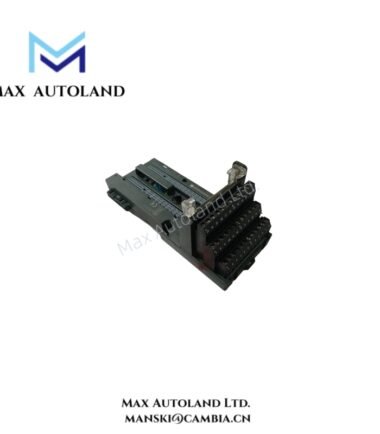

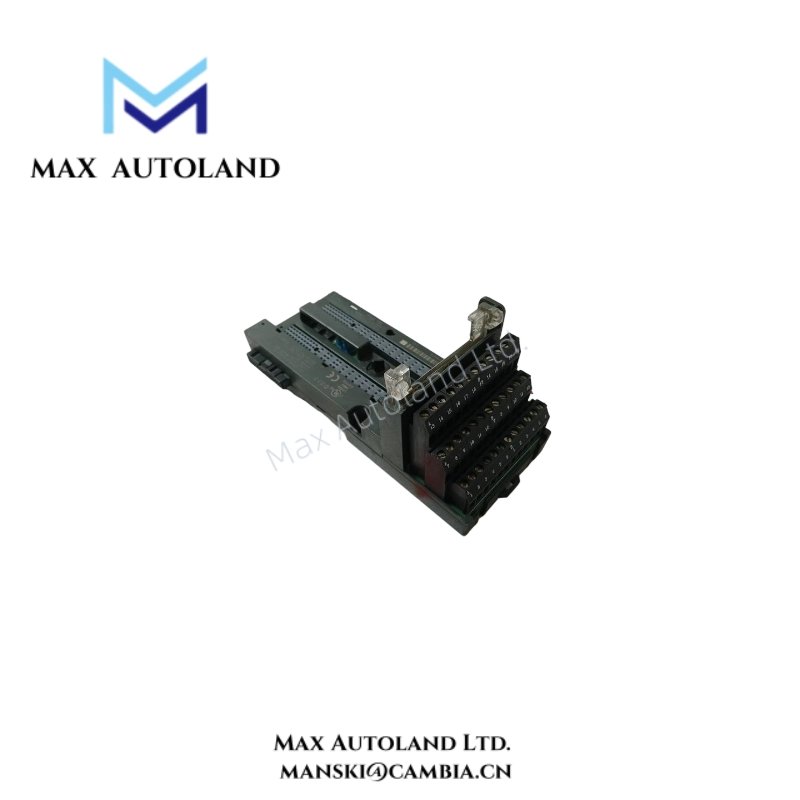

| Product Type | VersaMax I/O Carrier |
| Model Number | IC200CHS022 |
| Series | VersaMax Compact I/O |
| Function | Base for I/O modules |
| Mounting Type | DIN rail or panel mounting |
| Connector Type | Backplane bus connector |
| Number of Slots | 1 |
| Power Supply | 24 VDC nominal |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Dimensions | Compact footprint (approx. 100 mm width) |
| Housing Material | Industrial-grade thermoplastic |
| Certifications | UL, CE, RoHS compliant |
| Compatibility | All GE Fanuc VersaMax I/O modules |
FAQ
A1: It serves as the mechanical and electrical interface between a VersaMax I/O module and the backplane.Q2: Is the IC200CHS022 compatible with all VersaMax modules?
A2: Yes, it is fully compatible with GE Fanuc VersaMax Compact I/O modules.
Q3: Can this carrier be DIN-rail mounted?
A3: Yes, it supports both DIN-rail and panel mounting options.
Q4: What operating temperature range does it support?
A4: The IC200CHS022 operates reliably from 0°C to +60°C.
Q5: Does it require a separate power supply?
A5: It draws power from the system backplane, typically at 24 VDC nominal.
