Overview
It operates as a master scanner for distributed field devices in industrial automation systems.
Engineers deploy this module within the GE RX3i PACSystems platform for reliable field-level communication.
Moreover, it supports deterministic data exchange between controllers and intelligent devices.
The module manages network configuration, diagnostics, and cyclic data transfer efficiently.
Therefore, system designers achieve predictable communication across complex production environments.
Its industrial-grade hardware ensures consistent performance in demanding factory conditions.
Specification
| Parameter | Specification |
|---|---|
| Manufacturer | GE Intelligent Platforms |
| Model Number | IC694DNM200 |
| Series | GE RX3i PACSystems |
| Module Type | DeviceNet Master / Scanner Module |
| Network Protocol | DeviceNet (ODVA compliant) |
| Node Capacity | Supports up to 63 slave devices |
| Data Rate | 125 kbps, 250 kbps, or 500 kbps selectable |
| Communication Mode | Master/Scanner |
| Power Supply | Powered from RX3i backplane |
| Backplane Current Draw | Approx. 400 mA at 5 VDC |
| Isolation | Network to backplane isolation |

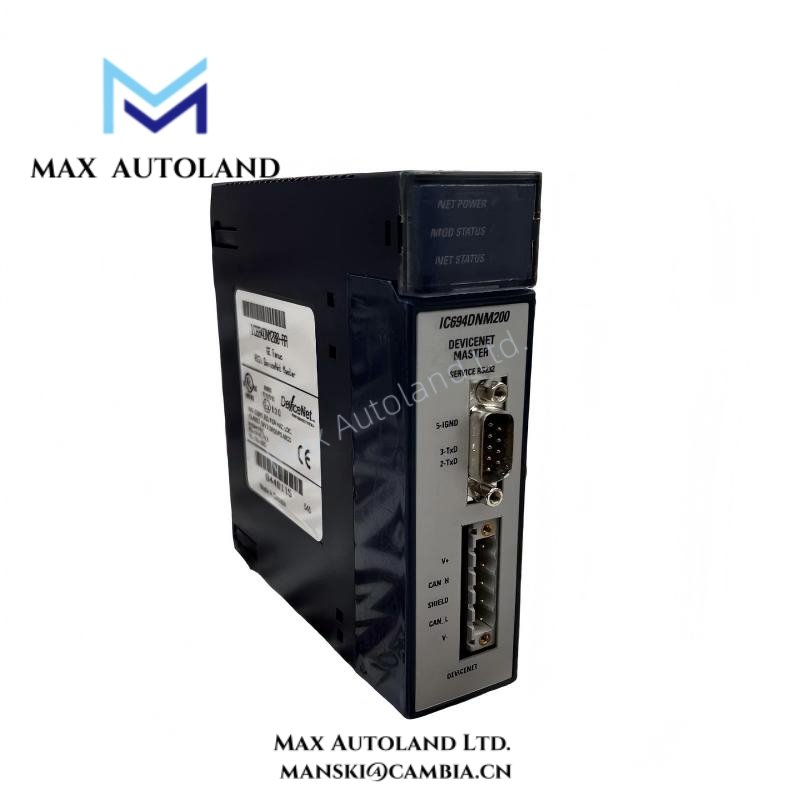

| Connector Type | 5-pin open-style DeviceNet connector |
| Diagnostics | Module and network LED indicators |
| Configuration | Software-based node configuration |
| Mounting | Installed in RX3i baseplate slot |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5–95% non-condensing |
| Compliance | CE, UL, CSA industrial standards |
| Application Environment | Industrial automation and distributed I/O networks |
FAQ
Q1: What is the function of the IC694DNM200 module?
It operates as a DeviceNet master scanner within an RX3i PLC system.
Q2: How many DeviceNet slave nodes can it support?
It supports up to 63 DeviceNet slave devices on one network.
Q3: Which communication speeds are available?
The module supports 125 kbps, 250 kbps, and 500 kbps data rates.
Q4: Does it provide diagnostic information?
Yes, integrated LEDs display module status and network activity.
Q5: Which PLC platform is compatible with this module?
It is designed for integration with the GE RX3i PACSystems platform.
