Overview
Specification
| Parameter | Specification |
|---|---|

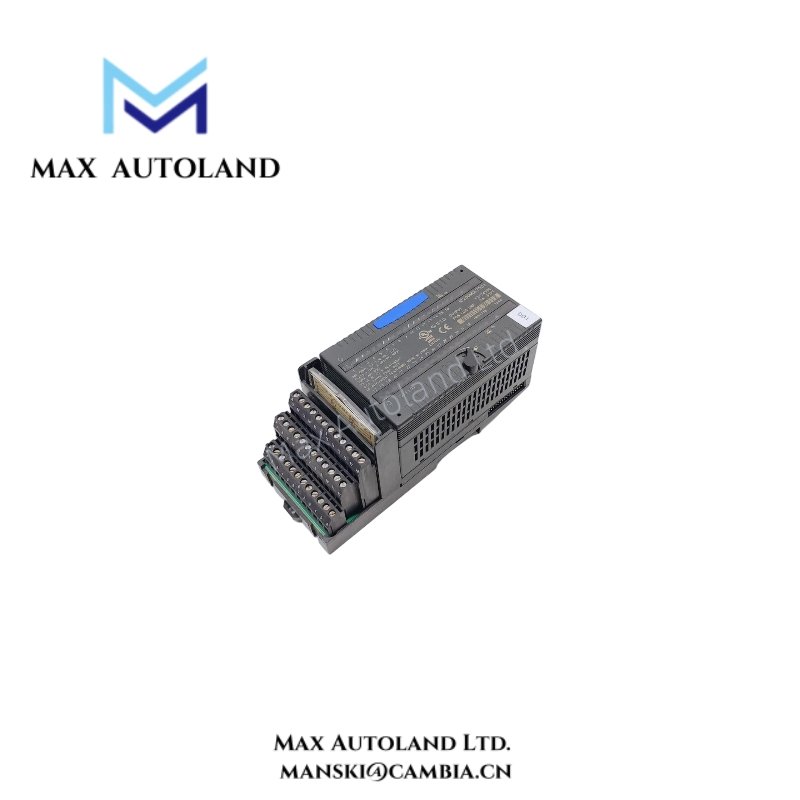

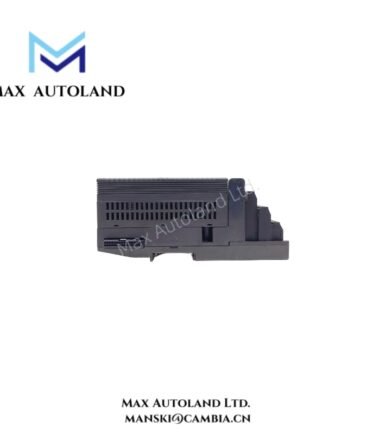

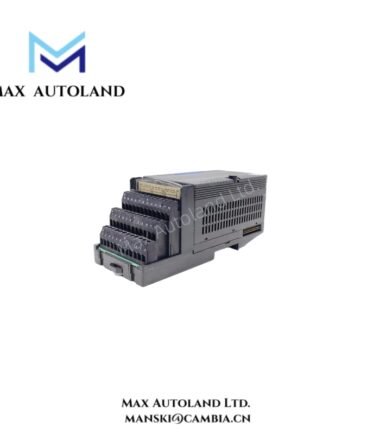

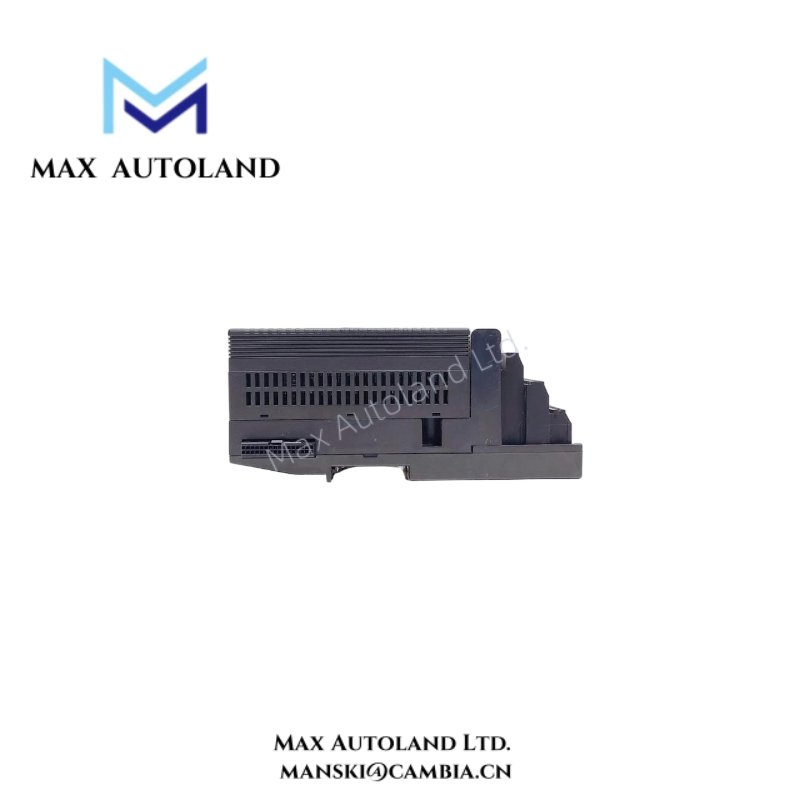

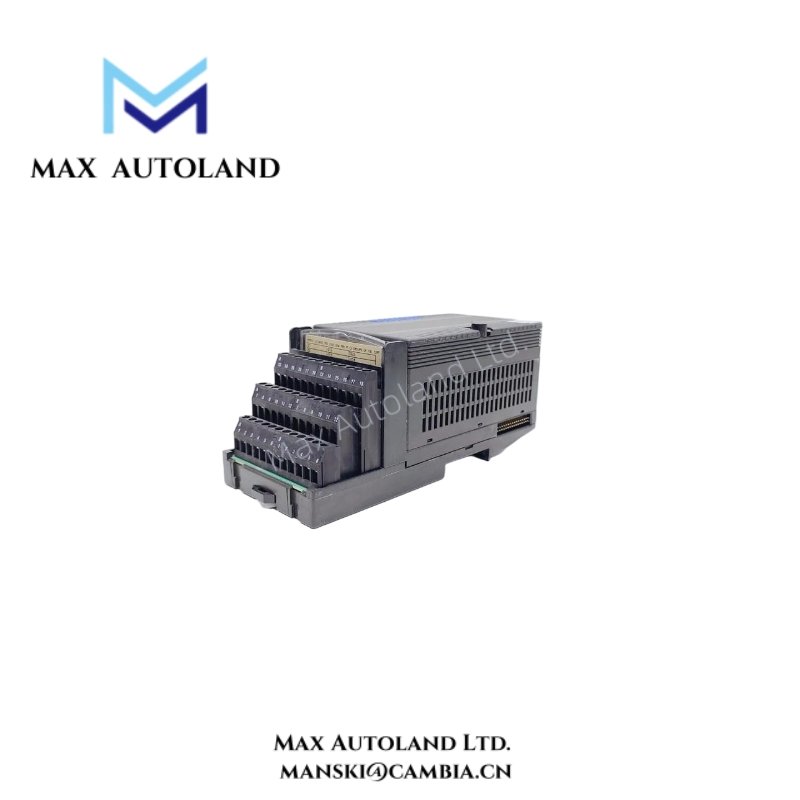

| Model | IC200MDL750 |
| Module Type | Positive Logic Output Module |
| Digital Outputs | 16 channels, 24 VDC |
| Output Logic | Positive logic sourcing outputs |
| Communication Interface | VersaMax backplane |
| Power Supply | 5 VDC ±5%, 0.5 A typical |
| Power Consumption | Approximately 3 W |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity | 5% to 95% non-condensing |
| Mounting | DIN rail or panel mount |
| Dimensions | 122 mm (H) x 35 mm (W) x 112 mm (D) |
| Status Indicators | LEDs for RUN, ERROR, and individual output activity |
| Certifications | CE, UL Listed |
| Environmental Protection | Resistant to vibration, electrical noise, and industrial conditions |
| Typical Applications | Factory automation, process control, machine control, material handling |
FAQ
It provides 16 discrete 24VDC positive logic output channels.
Q2: Is this module compatible with VersaMax CPU modules?
Yes, it integrates seamlessly via the VersaMax backplane interface.
Q3: What is the operating temperature range of this module?
The module operates reliably between 0°C to 60°C (32°F to 140°F).
Q4: How can I monitor the output status?
LED indicators display RUN, ERROR, and each output channel’s status.
Q5: Can this module withstand industrial environmental stress?
Yes, it is resistant to vibration, electrical noise, and other industrial stresses.
