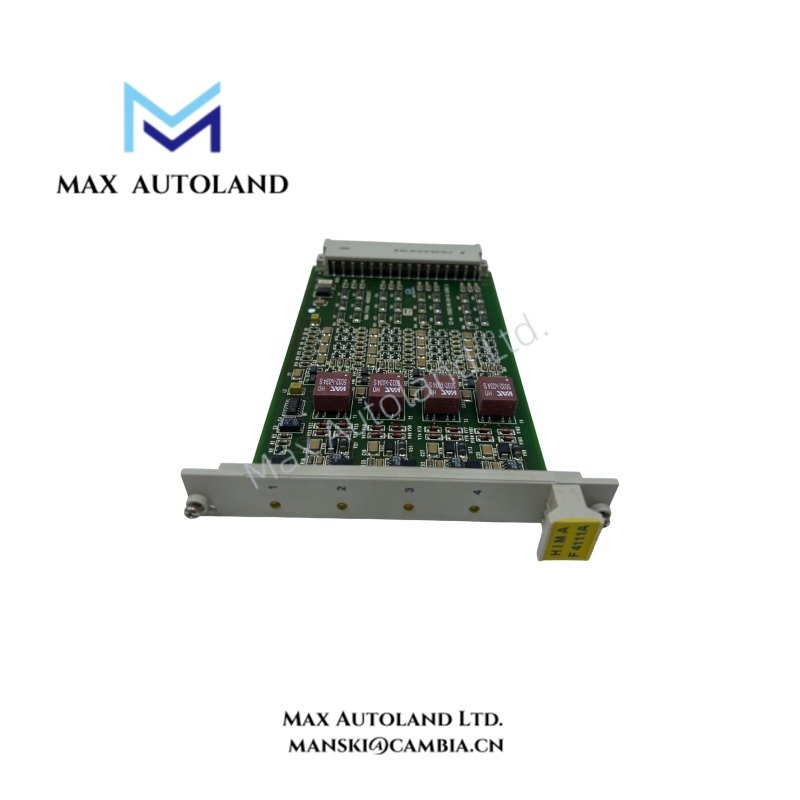

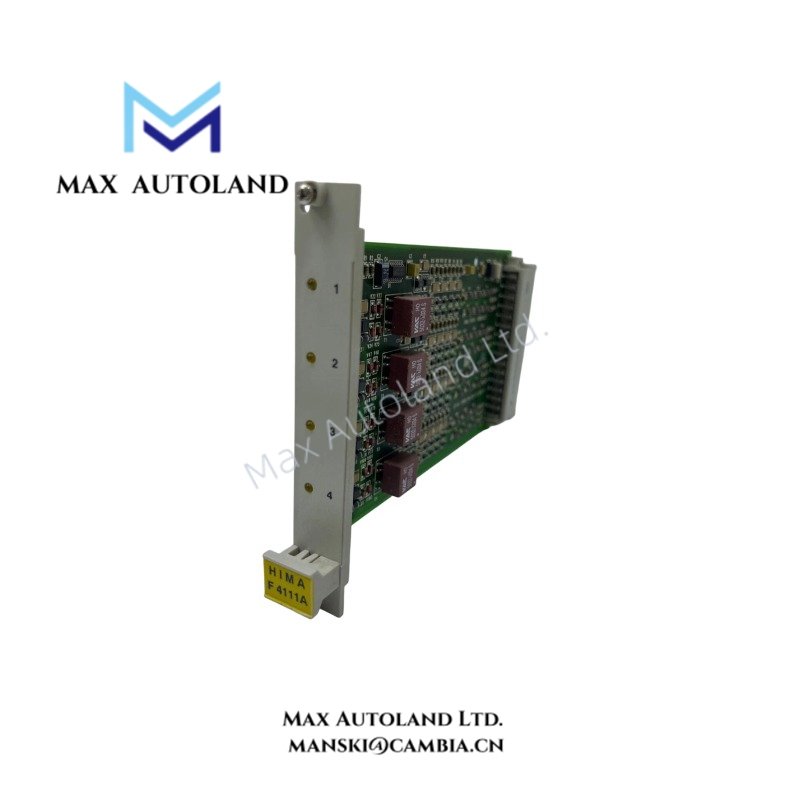

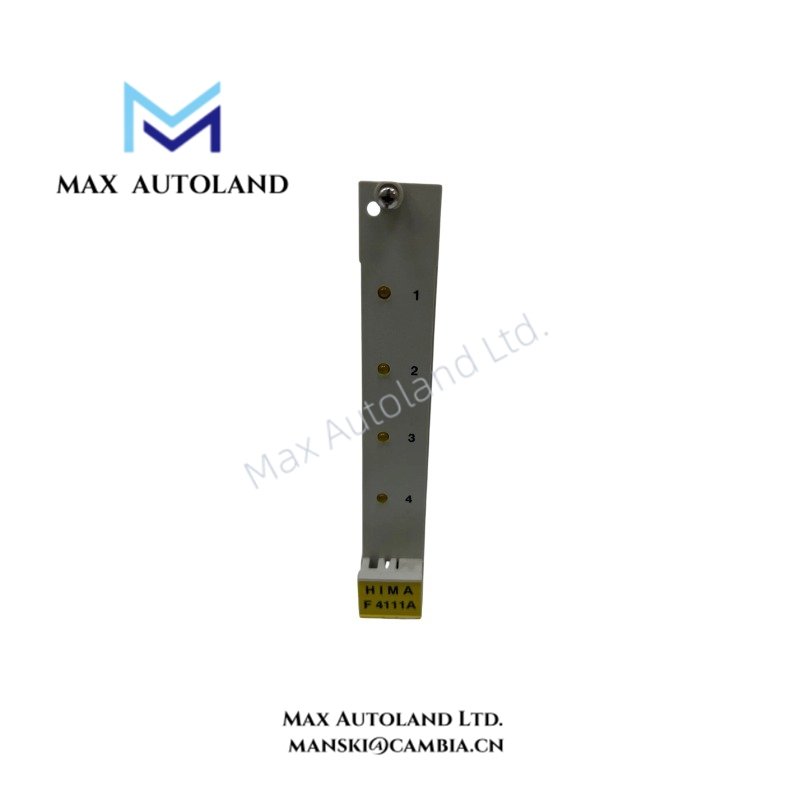

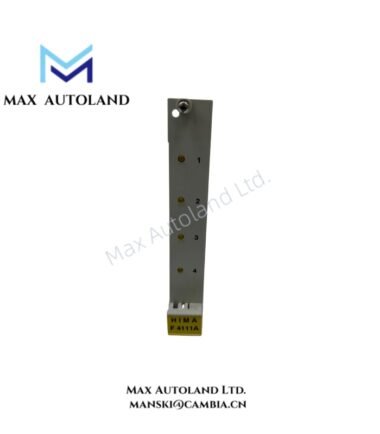

Overview
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | F 4111A |
| Brand | HIMA |
| Part Number | 98 4411160 |
| Product Series | Planar-F Safety System |
| Product Type | Safety-Related 4-Channel AND Gate Module |
| Logic Function | Hardware-coded AND logic |
| Channel Configuration | 4-channel |
| Country of Origin | Germany |
| Lifecycle Status | Reported as discontinued |
Functional Description
The F 4111A implements a defined AND logic function. An AND operation produces a true logical result only when all required input conditions are true. In a safety control system, this logic can support permissive conditions and interlock sequences, depending on the configured circuit.
The module uses hardware-coded logic rather than a freely configurable software logic function. Its exact input arrangement, signal characteristics, terminal assignments, and output behavior must be checked against the applicable system documentation.
Safety Characteristics
The supplied description identifies the F 4111A as a fail-safe module intended for safety-related applications. However, the precise response to power loss or an internal fault depends on the circuit design and connected system. Confirm the specified safe state before using the module in a safety function.
No model-specific safety certificate or verified Safety Integrity Level (SIL) rating is available in the supplied material. IEC 61508 compliance and other certification claims should therefore be confirmed before engineering approval or replacement selection.
Configuration and Replacement Considerations
Before ordering a replacement, verify the complete part number 98 4411160, the four-channel logic configuration, and the module’s compatibility with the installed Planar-F hardware. Similar logic functions alone do not establish electrical, mechanical, or functional interchangeability.
The supplied information reports the module as discontinued. For legacy-system maintenance, compare the existing module’s identification label and system configuration with the replacement documentation before installation.
Frequently Asked Questions
Q: What is the primary function of the HIMA F 4111A?
A: It performs hardware-coded, safety-related AND logic across four channels. The precise input and output arrangement depends on the documented module configuration.
Q: Is the F 4111A suitable for direct replacement of an existing module?
A: Confirm the complete part number, terminal assignments, logic configuration, and system compatibility first. A similar functional description does not guarantee direct interchangeability.
Q: Does the F 4111A have a confirmed SIL rating?
A: The supplied information does not establish a specific SIL rating or model-specific certification. Verify the applicable safety documentation before assigning the module to a safety instrumented function.
