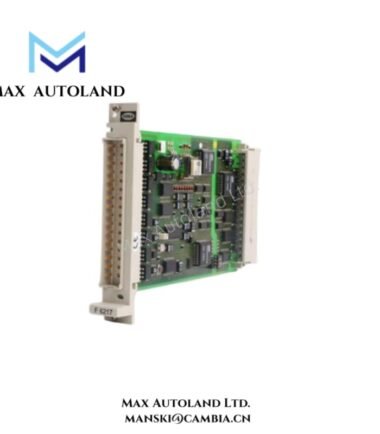

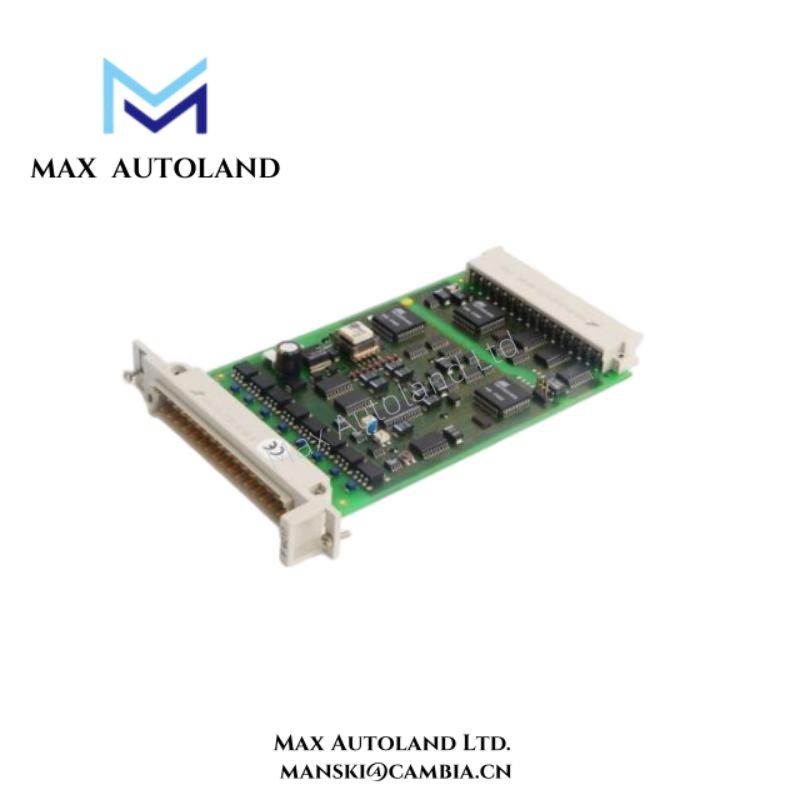

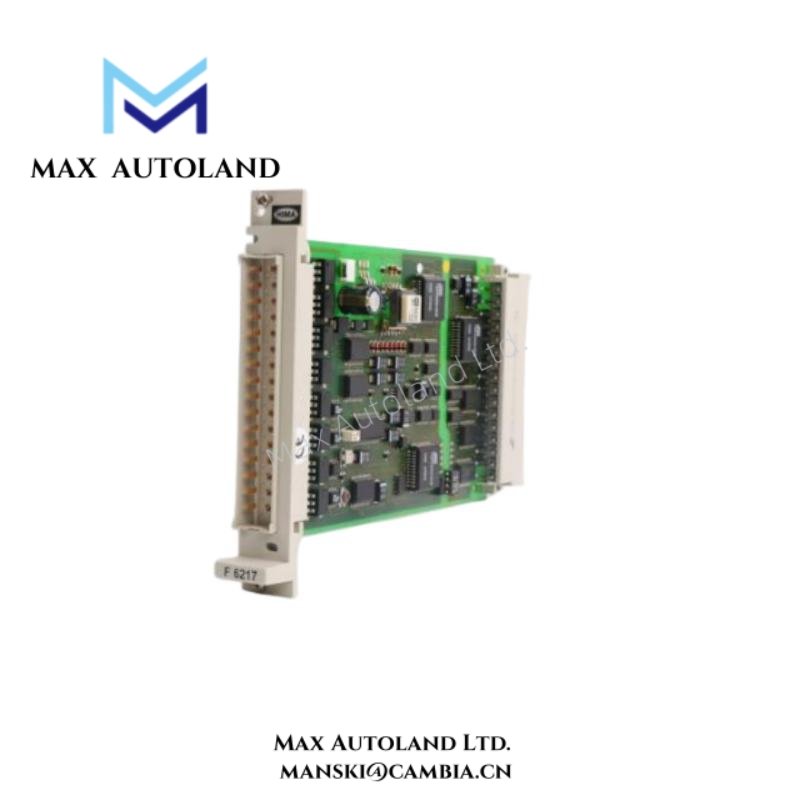

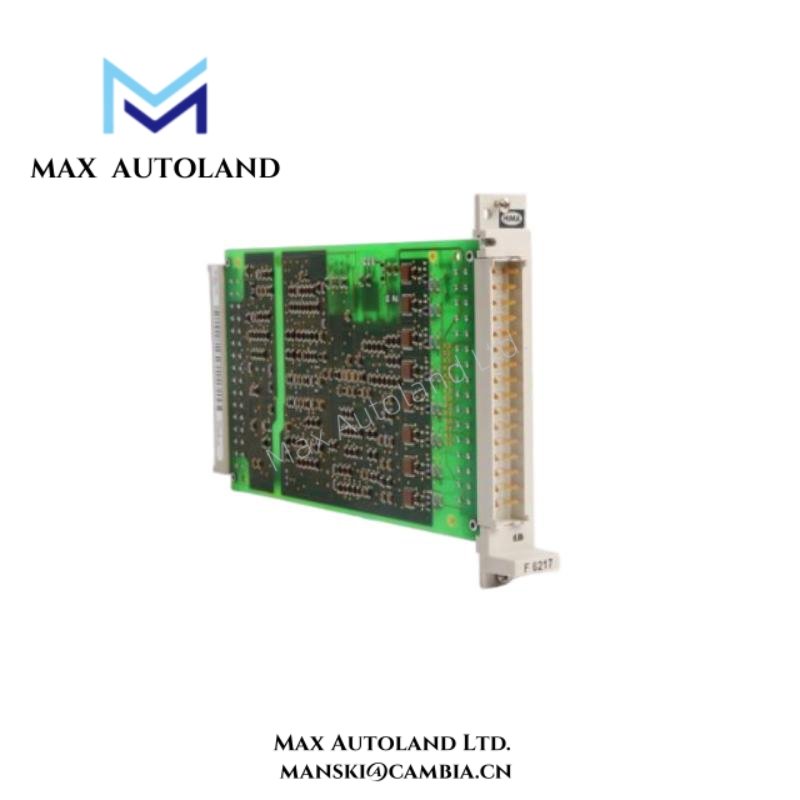

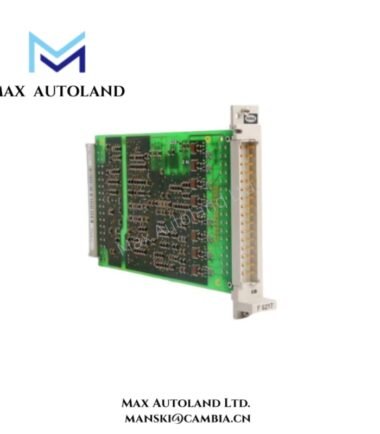

Overview
Specification
| Parameter | Specification |
|---|---|
| Channels | 8 independent analog input channels |
| Input Signal Types | 0–20 mA, 4–20 mA, 0–10 V, ±10 V (configurable per channel) |
| Input Resistance | Current input: 50 Ω typical; Voltage input: >100 kΩ |
| Resolution | 16-bit ADC (analog-to-digital converter) |
| Accuracy | ±0.1% of full scale (typical) |
| Linearity | ±0.05% of full scale |
| Isolation | Channel-to-channel: 500 V DC; Channel-to-system: 1500 V DC |
| Response Time | ≤50 ms per channel (for standard input signals) |
| Signal Filtering | Programmable digital filtering to reduce noise |
| Power Supply | 24 V DC nominal (18–32 V DC operating range) |
| Power Consumption | ≤4 W per module |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | –20°C to 70°C |
| Humidity | 5–95% RH, non-condensing |
| Shock & Vibration | IEC 60068-2-6 vibration, IEC 60068-2-27 shock |
| Mounting | DIN rail or standard HIMatrix rack mount |
| Status Indicators | LED for module status, channel fault, and power supply |
| Communication / Interface | HIMatrix backplane interface for data transfer |
| Safety / Compliance | SIL 3 according to IEC 61508 and IEC 61511; CE certified |
| Diagnostics | Continuous channel monitoring, open-circuit detection, overload warning |
| Cable Connection | Screw terminal or pluggable terminal block |
| Dimensions (W×H×D) | Approx. 30 mm × 120 mm × 120 mm |
| Weight | ~0.25 kg per module |
FAQ
A1: The module supports 0/4–20 mA and 0–10 V analog signals, selectable per channel.
Q2: Can the module be used in SIL 3 applications?
A2: Yes, the F6217 is certified for SIL 3 compliance under IEC 61508 and IEC 61511 standards.
Q3: How many channels are available per module?
A3: Each F6217 module provides eight independent analog input channels.
Q4: What is the module’s operating temperature range?
A4: The F6217 operates reliably between 0°C and 60°C.
Q5: Is diagnostics available for troubleshooting?
A5: Yes, the module provides built-in diagnostics to detect errors or faults early.
