Overview
Specification
| Parameter | Specification |
|---|---|

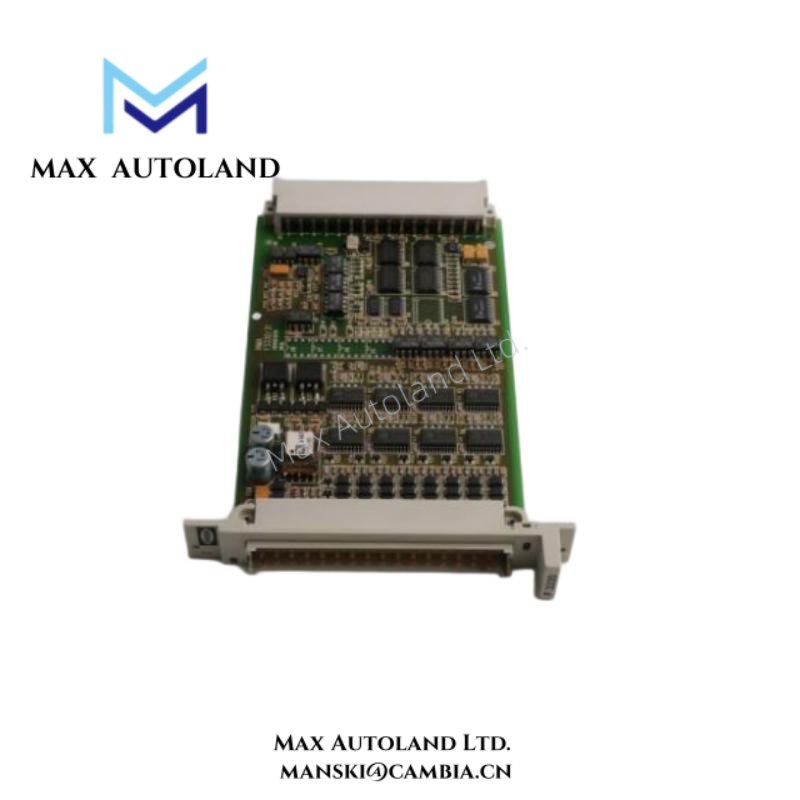

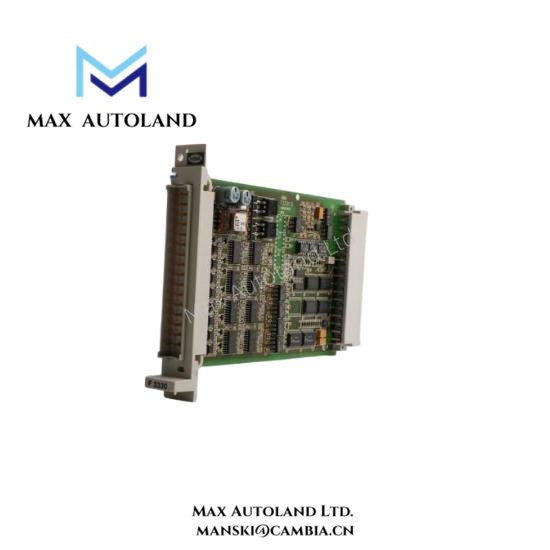

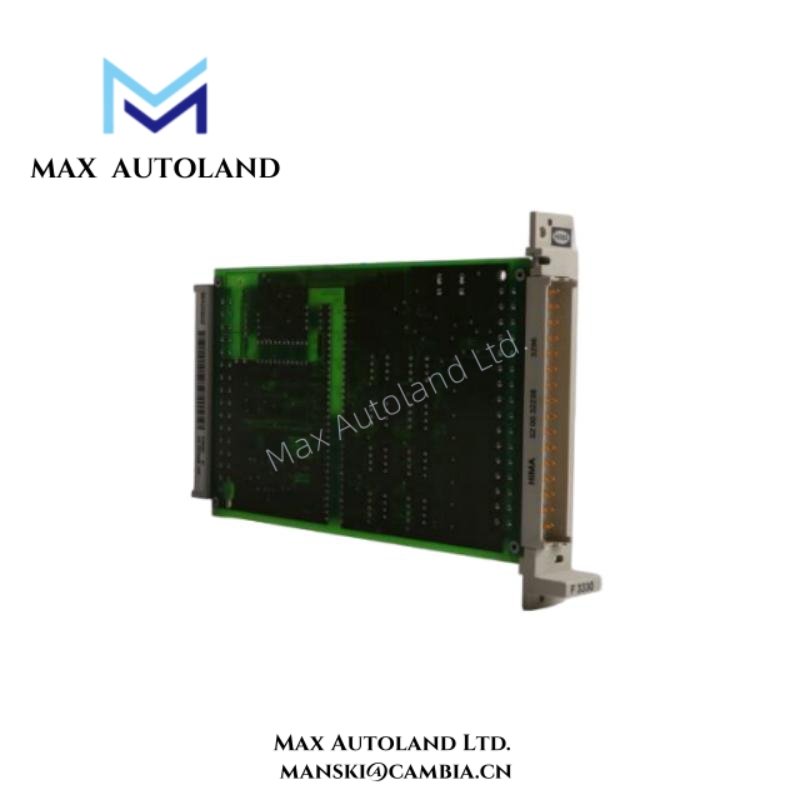

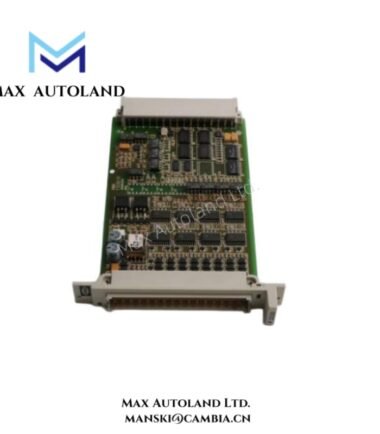

| Product Type | 8-Fold Output Module (Safety-Related) |
| Manufacturer | HIMA |
| Model Number | F3330 |
| Channels | 8 independent digital outputs |
| Output Type | Relay or transistor (depending on configuration) |
| Switching Voltage | Up to 250 V AC / 30 V DC |
| Switching Current | 2 A per channel (typical) |
| Response Time | ≤10 ms per channel |
| Isolation | Channel-to-channel and channel-to-system galvanic isolation |
| Input Voltage | 24 V DC nominal |
| Power Consumption | ≤4 W |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | –20°C to 70°C |
| Mounting | DIN rail or HIMatrix rack mount |
| Status Indicators | LED per channel and module status |
| Safety Certification | SIL 3 according to IEC 61508 / IEC 61511 |
| Diagnostics | Continuous self-test, open circuit and short circuit detection |
| Dimensions (W×H×D) | Approx. 30 mm × 120 mm × 120 mm |
| Weight | ~0.28 kg |
FAQ
A1: The module supports eight independent safety-related output channels.
Q2: What is the switching capacity of each channel?
A2: Each channel can switch up to 250 V AC or 30 V DC with 2 A typical current.
Q3: Is this module suitable for SIL 3 applications?
A3: Yes, the F3330 is certified SIL 3 according to IEC 61508 and IEC 61511 standards.
Q4: What is the module’s response time?
A4: The response time is ≤10 ms per channel, supporting deterministic operations.
Q5: How is the module mounted?
A5: It supports DIN rail or HIMatrix rack mounting for flexible installation.
