Overview

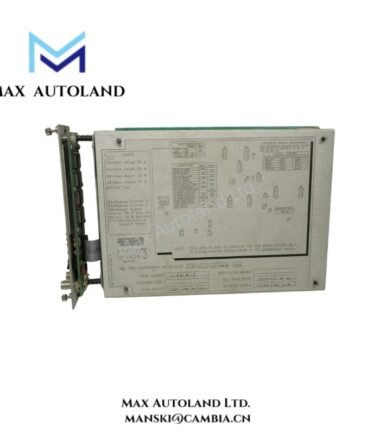

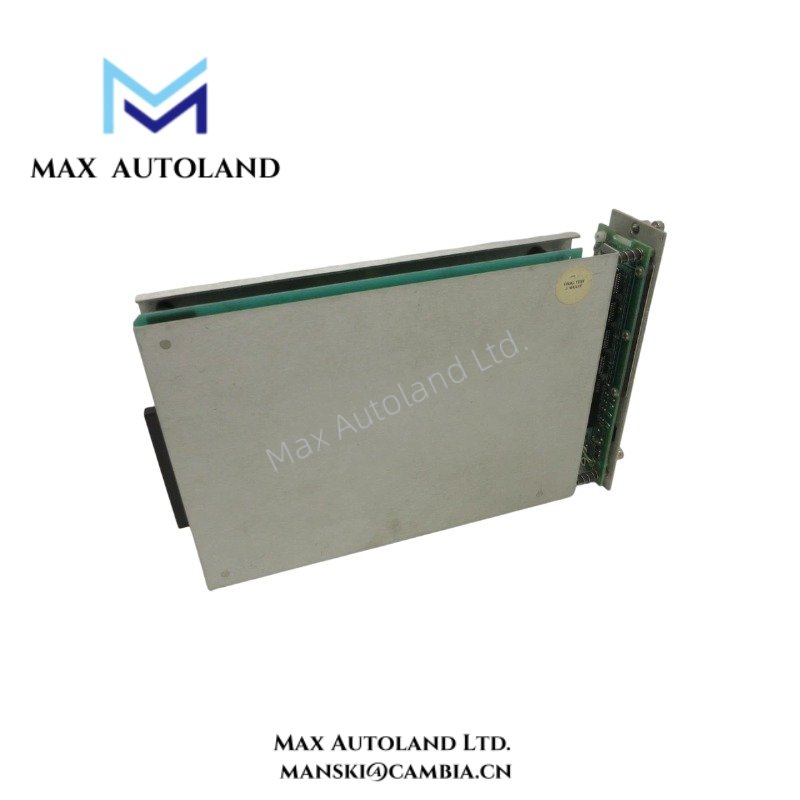

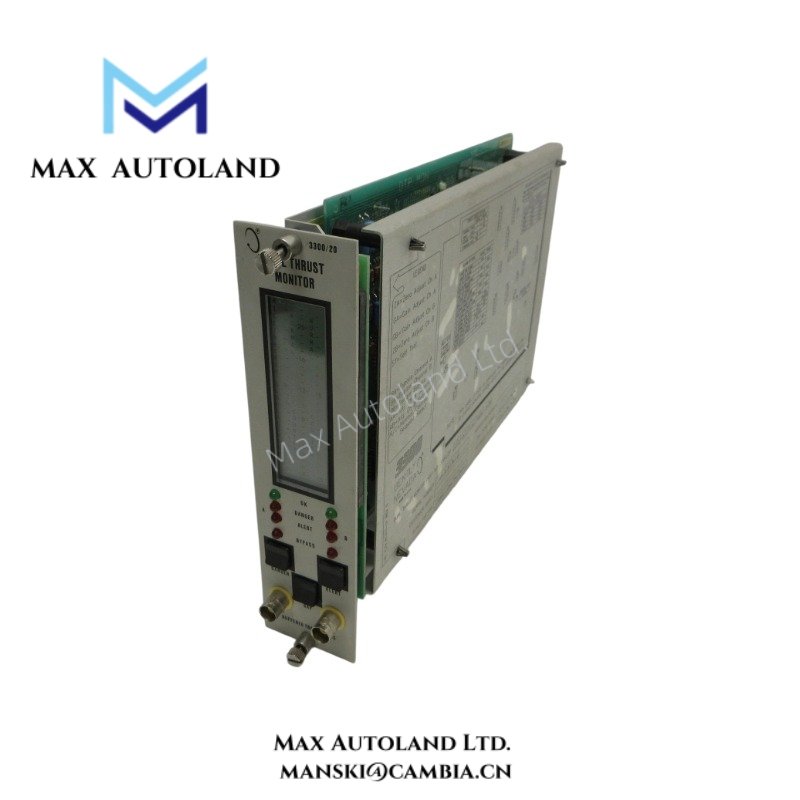

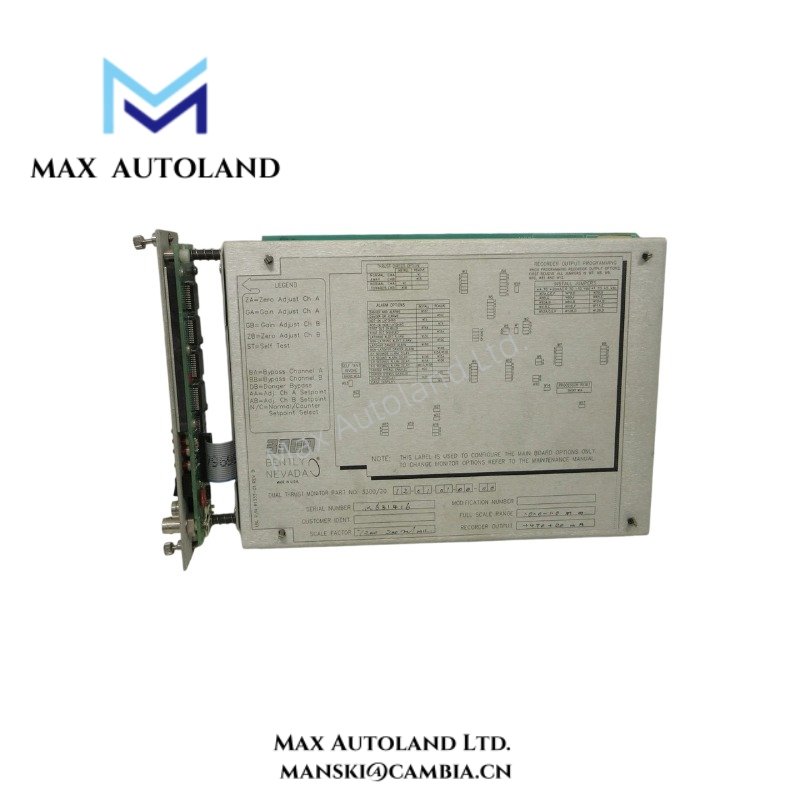

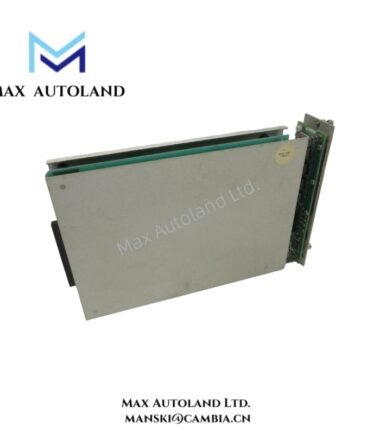

The Bently Nevada 3300/20-12-01-01-00-00 Dual Thrust Monitor provides continuous axial position monitoring for critical rotating machinery protection applications. Maintenance engineers frequently deploy this monitor on turbines, compressors, pumps, and generators requiring accurate thrust position supervision and machinery protection performance.
This industrial monitoring module continuously measures shaft axial displacement while providing alarm and protection functions for rotating equipment systems. Moreover, the dual-channel monitoring design improves operational reliability by supporting simultaneous thrust position measurement and independent alarm processing.
The 3300 series thrust monitor helps maintenance teams identify abnormal shaft movement before severe mechanical damage affects critical production equipment. Therefore, industrial facilities can reduce unexpected downtime, improve machinery reliability, and strengthen predictive maintenance planning strategies.
Bently Nevada designed the 3300/20 monitor for demanding industrial environments requiring stable monitoring accuracy and dependable continuous operating performance. In addition, the module integrates effectively with existing 3300 machinery protection racks and industrial automation infrastructures.
Functional Highlights
- Provides continuous dual-channel thrust position monitoring
- Supports machinery protection for critical rotating equipment systems
- Delivers accurate axial shaft displacement measurement performance
- Supports independent alarm and shutdown protection functions
- Compatible with Bently Nevada 3300 machinery protection systems
- Improves predictive maintenance and machinery reliability strategies
- Supports integration with PLC, DCS, and SCADA platforms
- Designed for continuous industrial operation within demanding environments
Specification
| Parameter | Specification |
|---|---|
| Product Name | Bently Nevada Dual Thrust Monitor |
| Model Number | 3300/20-12-01-01-00-00 |
| Manufacturer | Bently Nevada |
| Product Type | Dual Thrust Monitoring Module |
| Series | Bently Nevada 3300 Machinery Protection System |
| Monitoring Function | Continuous axial shaft position monitoring |
| Channel Configuration | Dual-channel monitoring architecture |
| Measurement Type | Axial displacement and thrust position monitoring |
| Application Purpose | Machinery protection and condition monitoring |
| Sensor Compatibility | Compatible with Bently Nevada proximity probe systems |
| Alarm Capability | Independent alarm and protection functions |
| Rack Compatibility | Compatible with 3300 protection racks |
| Signal Processing | Continuous real-time thrust monitoring |
| System Integration | PLC, DCS, SCADA, turbine control systems |
| Supported Equipment | Turbines, compressors, pumps, generators |
| Environmental Capability | Suitable for harsh industrial environments |
| Housing Format | Modular rack-mounted monitoring module |
| Industrial Applications | Power generation, oil and gas, petrochemical, manufacturing |
| Diagnostic Capability | Detects abnormal shaft thrust movement |
| Maintenance Function | Supports predictive maintenance planning |
| Reliability Feature | Designed for continuous industrial operation |
| Operational Advantage | Improves machinery protection and operational reliability |
FAQ
Q1: What is the primary function of the Bently Nevada 3300/20 Dual Thrust Monitor?
A1: The module continuously monitors axial shaft displacement and provides machinery protection for rotating industrial equipment.
Q2: Which equipment commonly uses the 3300/20 thrust monitor?
A2: Engineers frequently install the monitor on turbines, compressors, pumps, and industrial generator systems.
Q3: What advantage does dual-channel monitoring provide?
A3: Dual-channel monitoring improves operational reliability through simultaneous thrust measurement and independent alarm processing functions.
Q4: Can the monitor integrate with industrial automation systems?
A4: Yes, the module integrates with PLC, DCS, SCADA, and turbine control systems used in industrial facilities.
Q5: Why is thrust position monitoring important for rotating machinery?
A5: Thrust monitoring helps prevent severe shaft movement damage and improves overall machinery operational reliability.
Q6: Is the module suitable for harsh industrial environments?
A6: Yes, the industrial-grade design supports reliable long-term operation within demanding process and manufacturing facilities.
