Overview

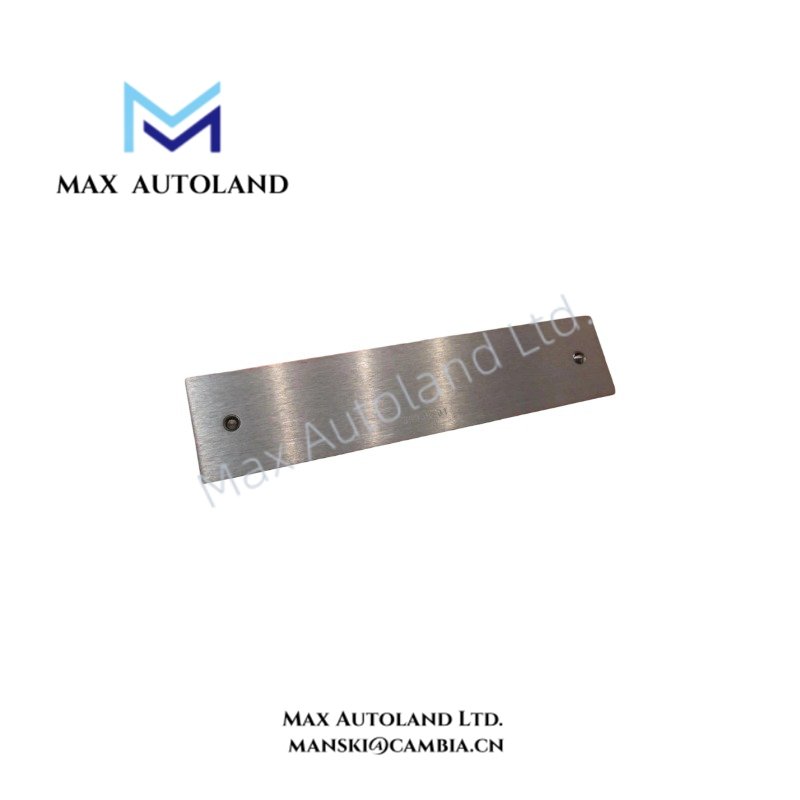

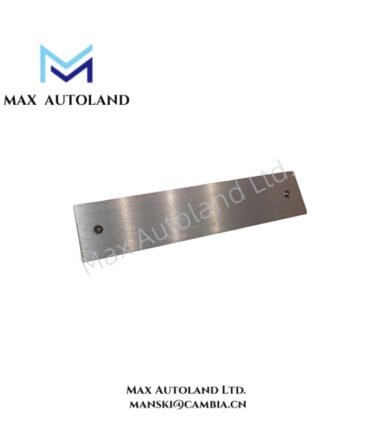

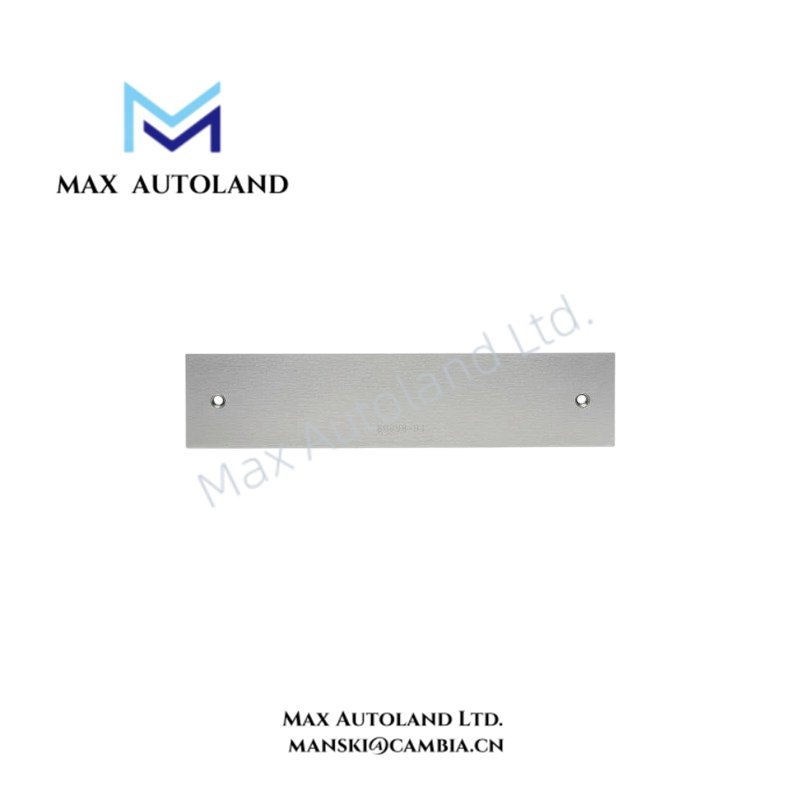

Configured for filling an unused rack position in the Bently Nevada 3300 Monitoring System, the Bently Nevada 80098-01 (80098 Single-Slot Blank Filler Panel) provides a physical closure for an unoccupied monitor position. It contains no active signal-processing or measurement circuitry. Instead, it maintains the mechanical enclosure of the rack and covers the open slot.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 80098-01 |
| Brand | Bently Nevada |
| Product Type | Single-Slot Blank Filler Panel |
| Compatible System | Bently Nevada 3300 Monitoring System |
| Rack Application | 3300 monitoring rack, including 3300/05 rack configurations |
| Slot Occupancy | Single rack monitor position |
| Primary Function | Covers an unused rack slot |
| Material | Conductive anti-static material |
| Mounting | Rack-mounted front panel |
| Signal Processing | None |
| Data Communication | None |
| Power Consumption | None |
Mechanical Rack and ESD Interface
The Bently Nevada 80098-01 operates as a passive mechanical component rather than a TSI signal-processing module. It closes an unused position in the 3300 rack and prevents the rack opening from remaining exposed.
The conductive anti-static construction supports electrostatic charge dissipation at the rack interface. Therefore, the panel should remain mechanically secured and correctly seated within the designated rack position.
The filler panel does not receive proximity probe signals, seismic signals, temperature inputs, or relay outputs. It also does not perform eddy-current probe scaling, gap voltage validation, rotor-dynamics calculations, or cross-talk suppression. Those functions belong to active Bently Nevada monitor modules installed in the rack.
Frequently Asked Questions
Q: Does the 80098-01 process vibration or machinery signals?
A: No. The 80098-01 is a passive blank filler panel and contains no signal-processing function.
Q: Does the 80098-01 require electrical power?
A: No. The panel has no powered electronics and does not connect to an active measurement circuit.
Q: Where should the 80098-01 be installed?
A: Install it in an unused compatible position of the Bently Nevada 3300 monitoring rack. Verify the rack position and mechanical fit before securing the panel.
Field Installation Guidelines
- Confirm that the selected rack position is an unused monitor position.
- Inspect the panel and rack opening for mechanical damage or contamination.
- Align the 80098-01 with the rack slot before applying mounting force.
- Secure the panel using the rack’s specified mechanical fastening method.
- Keep the panel surface and rack interface free from conductive debris and contamination.
- Do not connect signal, power, or communication wiring to the filler panel.
- Verify that adjacent monitor modules remain correctly seated after installation.
- Follow the rack manufacturer’s grounding and ESD handling procedures when installing or removing the panel.
