Overview

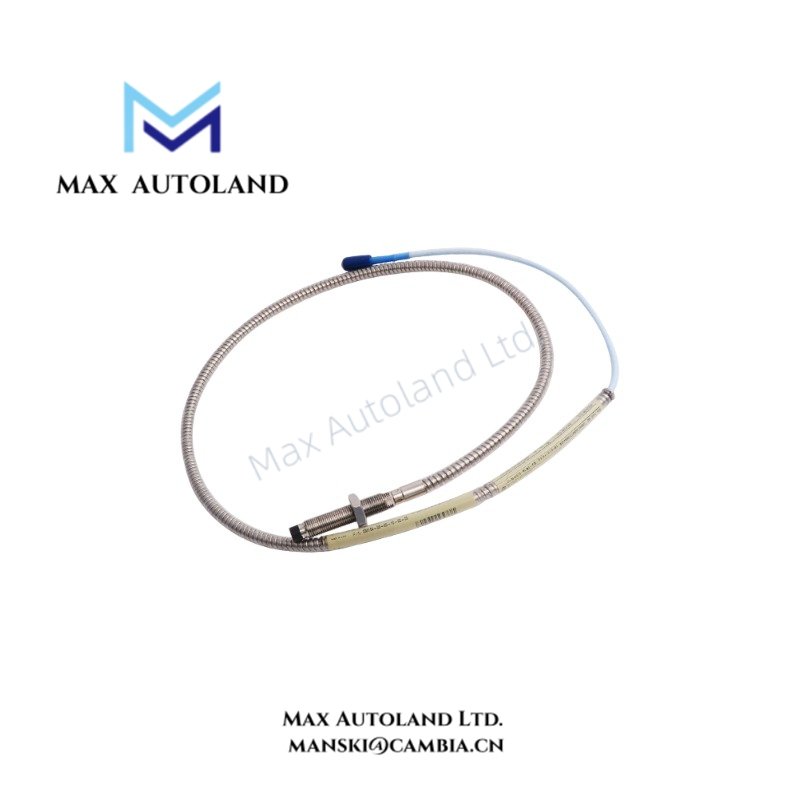

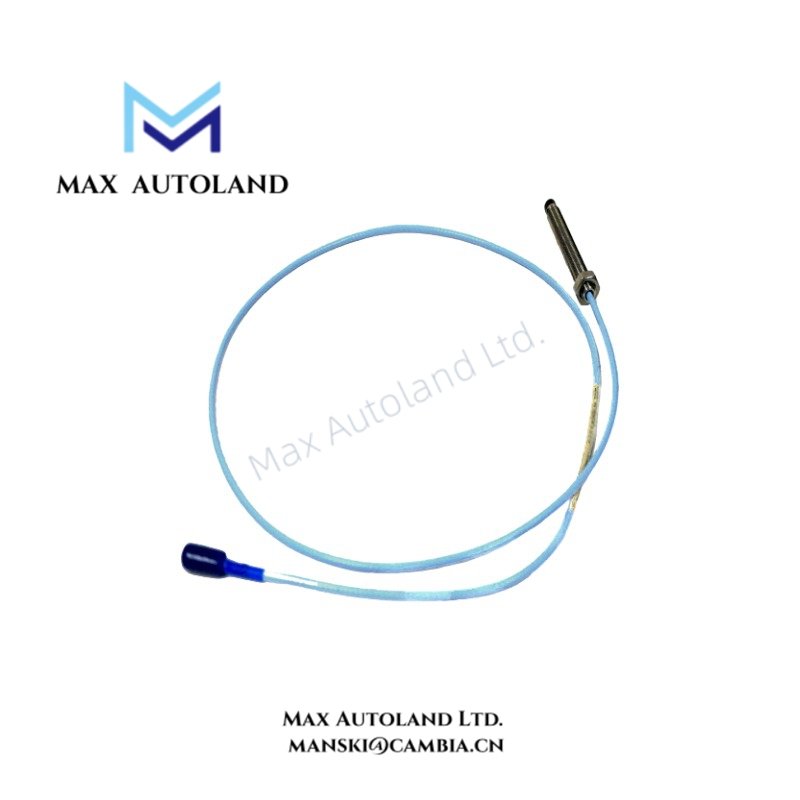

Configured for non-contact shaft position and vibration measurement in a 3300 XL 8 mm proximity transducer system, the Bently Nevada 330104-00-18-10-02-05 (330104 Proximity Probe) converts probe-to-target gap changes into an electrical signal for machinery monitoring. The probe uses eddy-current measurement and supports radial vibration, shaft position, and related rotating-machinery measurements when paired with the specified Proximitor Sensor and extension cable.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 330104-00-18-10-02-05 |
| Brand | Bently Nevada |
| Product Series | 3300 XL 8 mm Proximity Probe |
| Dimensions | Total case length: 1.8 in; other dimensions not specified |
| Operating Temp | -51 deg C to +177 deg C |
| Power Consumption | Not specified; probe operates as part of the compatible Proximitor Sensor system |
| Measurement Principle | Eddy-current non-contact measurement |
| Linear Measurement Range | 2.0 mm (80 mils) |
| Approximate Measurement Span | 0.25 mm to 2.3 mm |
| Incremental Scale Factor (ISF) | 7.87 V/mm (200 mV/mil), +/- 6.5% |
| Frequency Response | DC to 10 kHz; 0 to 6.5 kHz, +0/-3 dB with standard field wiring |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Probe Case Material | AISI 304 stainless steel |
| Connector | Miniature coaxial connector with connector protector |
| Connector Material | Corrosion-resistant, gold-plated brass ClickLoc connector |
Eddy-Current Measurement and Gap Scaling
The probe senses the electrical interaction between its tip and a conductive target. As the target moves relative to the probe tip, the system changes the resulting electrical output. The compatible Proximitor Sensor converts this gap-dependent response into a voltage signal used for shaft position and vibration measurement.
For installation and verification, technicians should validate the complete probe, extension cable, and Proximitor Sensor combination as a matched transducer system. The stated 7.87 V/mm ISF defines the nominal incremental output scaling within the specified measurement range.
The 3300 XL construction uses a PPS probe tip and AISI 304 stainless steel case. The supplied connector configuration includes a miniature coaxial connector and connector protector.
Frequently Asked Questions
Q: What measurement range does the 330104-00-18-10-02-05 provide?
A: The specified linear measurement range is 2.0 mm (80 mils), with an approximate span from 0.25 mm to 2.3 mm.
Q: What signal scaling does the probe use?
A: The specified incremental scale factor is 7.87 V/mm (200 mV/mil), with a tolerance of +/- 6.5%.
Q: What operating temperature can the probe withstand?
A: The specified operating temperature range is -51 deg C to +177 deg C.
Field Installation Guidelines
Install the probe so that its sensing axis follows the intended shaft or target measurement direction. Maintain the specified mechanical gap required by the complete 3300 XL transducer system.
Route the probe cable away from high-current power conductors, switching devices, and other sources of electrical interference. Avoid unnecessary cable loops and mechanical strain at the connector.
Use the specified miniature coaxial connector and connector protector. Keep mating surfaces clean and dry during installation, and secure the cable against vibration without applying excessive force to the connector.
For machinery vibration measurements, verify probe orientation, target condition, mechanical clearance, cable continuity, and the complete transducer-chain calibration before placing the monitoring channel into service.
