Overview

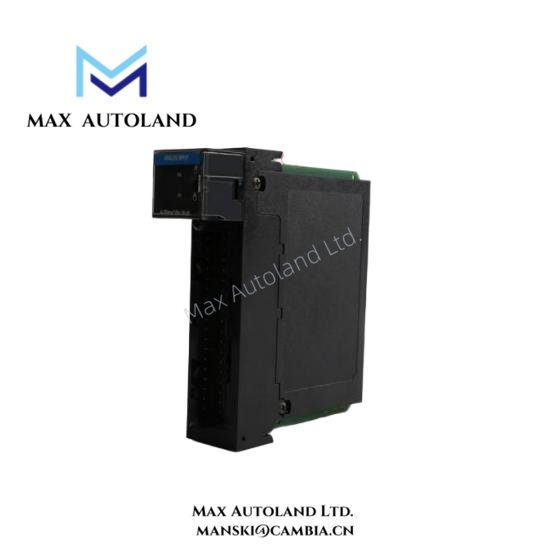

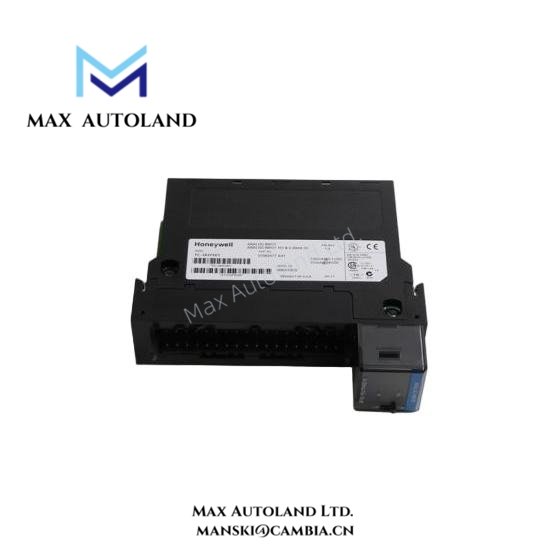

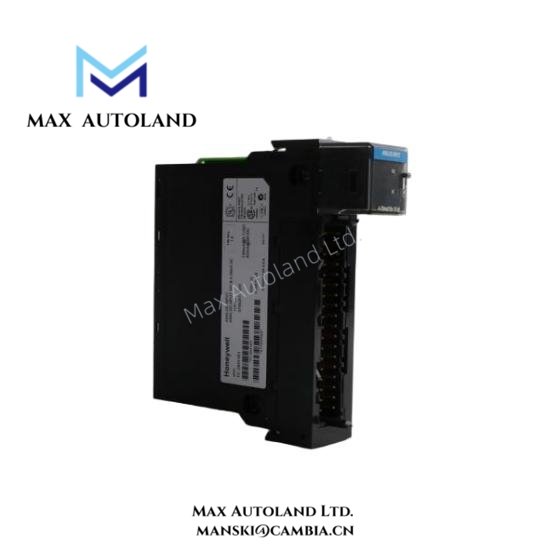

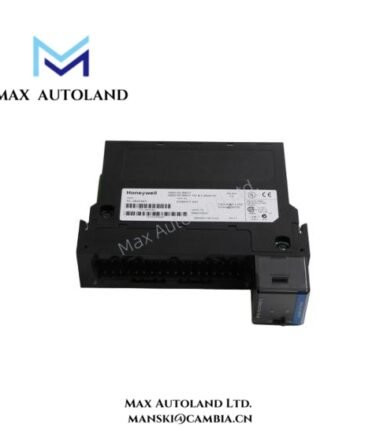

The TC-IAH161, part of Honeywell’s Experion PKS C200 series, is a high-level analog module designed for precise process control. It continuously monitors and converts analog signals into digital data, enabling accurate measurement and reliable automation. Moreover, the TC-IAH161 integrates seamlessly with other C200 modules, providing a cohesive control environment across complex industrial operations.
In addition, this module operates effectively under extreme temperatures and electrical conditions, ensuring stable performance in chemical, power, and manufacturing plants. Therefore, it is ideal for facilities that require responsive, high-precision analog signal management.
Specification
| Parameter | Specification |
| Number of Points | 16 channels |
| Input Voltage Range (Voltage) Input Current Range (Current) | ±10.25 volts,0 to 10.25volts,0 to 5.125 volts 0 to 20.5mA(internal 2500 resistor) |
| Voltage Resolution ±10.5 volt range 0 to 10.5 wolt range 0 to 5 volt range Current Resolution | 16 bits across each range shown below 320 μV 160 μV 80μV 320 nA |
| Module Publish Rate | 250 msec |
| Input Impedance(Voltage) (Current) | Greater than 1.0 megΩ 249 ohms Q nominal |
| Open Circuit Detection Typical OC Deteclion Time | Voltage Even channels-Positive Full scale reading Odd channels-Negative Fulscale reading Current-Negative Full scale reading less than 5 seconds |
| Normal Mode Noise Rejection Common Mode Rejection | Greater than 33dB@50 Hz Greater than 60 dB@60 Hz 100 dB@50/60 Hz |
| Channel Bandwidth | 20 Hz-3dB) |
| Calibrated Accuracy @25℃ | Better than 0.05%of range(Voltage) Better than 0.15%of range including sense resistor (Current) |
| RFI Immunity | Error of less than 2.0%of range at 10 V/m, 27 to 1000 MHz |
| Overvoltage Capability | Continuous at room temperature (both) 30 VDC(Voltage) 8 VDC(Current) |
| Input Offset Drift with Temperature | <90μVrC(Voltage) ≤360 nAC typical (Current) |
| Gain Drift with Temperature | 15 ppm/C(Voltage);20 ppmC(Current) |
| Module Eror Over Full Temp.Range | 0.1%of range(Voltage) 0.3%of range(current) |
| Power Dissipation | 4.1W max |
| Backplane Current | See Module Power Consumption Data,page 46. |
| lsolation Voltage User to system | 100%Tested at 2550VDC for 1s |
| Connection Terminal Blocks | TC-TBCH,36-posilion terminal block |
FAQ
Q1: Is the TC-IAH161 brand new and original?
A1: Yes, it is 100% brand new and factory original.
Q2: How quickly can it be shipped?
A2: Orders are shipped within 3 days to 2 weeks depending on quantity, using DHL or similar couriers.
Q3: What is the return policy if there’s a defect?
A3: We support returns within 30 days for any quality issues.
Q4: Which signals does the TC-IAH161 support?
A4: It supports high-level analog signals, including 4–20 mA and 0–10 V ranges.
Q5: Can it integrate with existing C200 systems?
A5: Yes, it integrates seamlessly with other Honeywell Experion PKS C200 modules.
