Overview

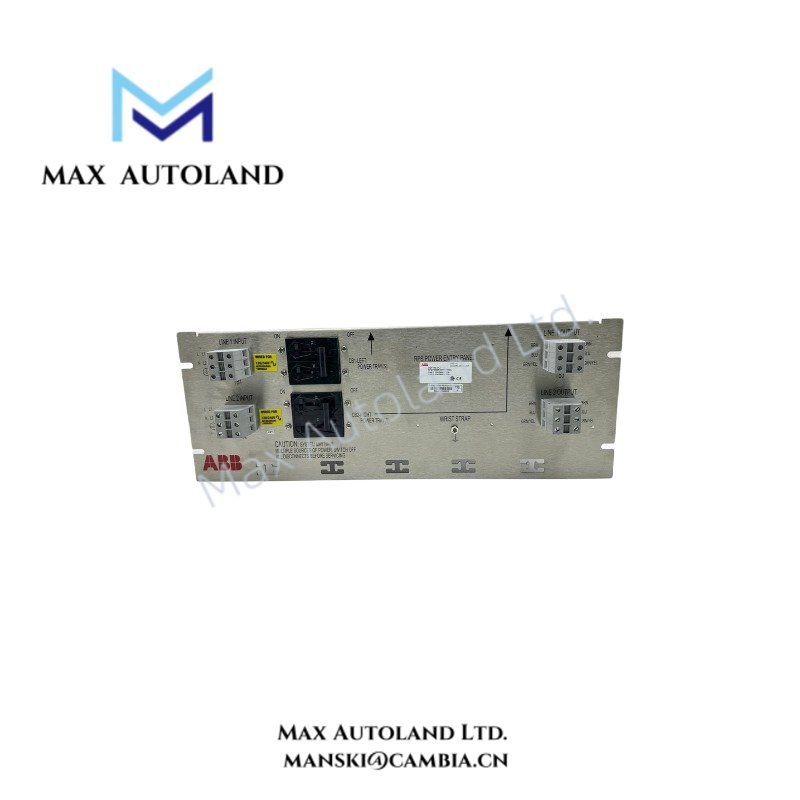

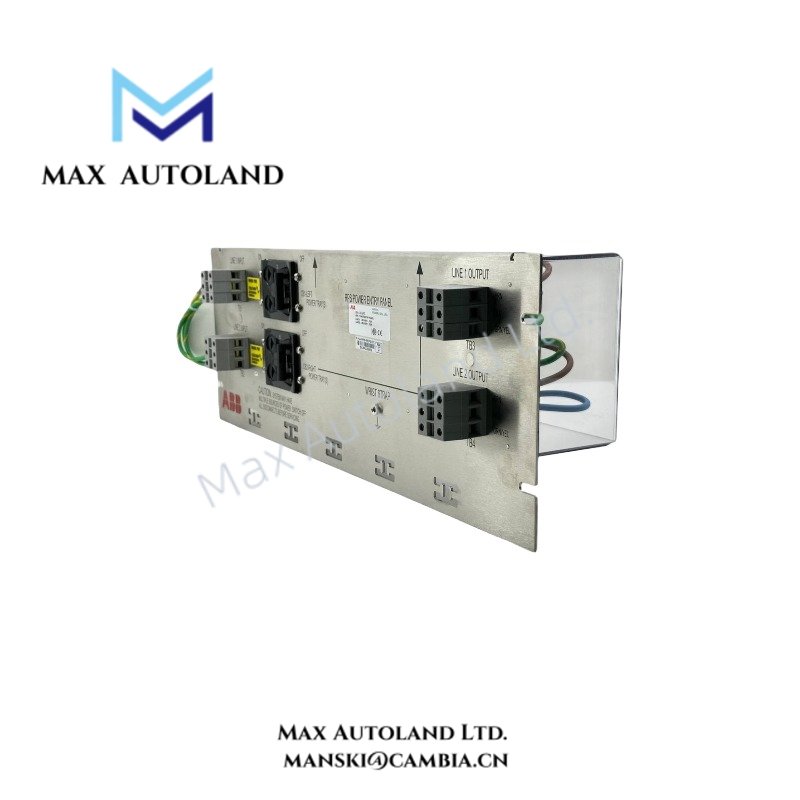

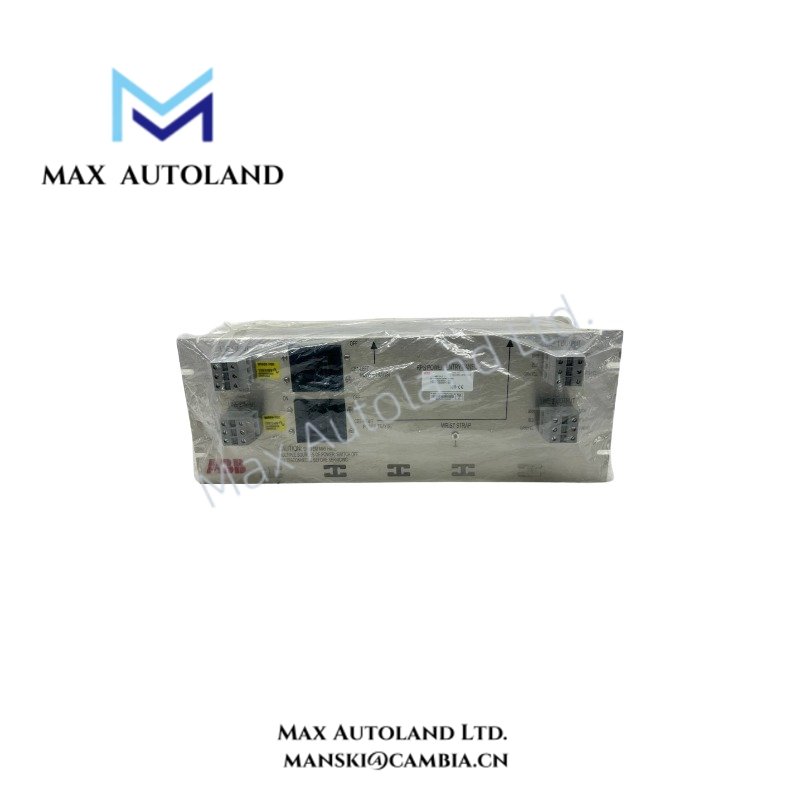

The ABB PHARPSPEP21013, also cataloged as the 6644463A2 Power Entry Panel, operates as a dedicated hardware component for receiving and conditioning incoming electrical power within a dual-chassis industrial control architecture. The panel accepts specified AC input power, provides a 24 V DC output, and supports load supply requirements up to the stated maximum current rating.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | PHARPSPEP21013 |
| Spare Model | 6644463A2 |
| Product Type | Power Entry Panel |
| Configuration | Dual Chassis |
| Brand | ABB |
| Origin | Sweden |
| Weight | 4.5 kg |
| Dimensions | 17.8 cm x 17.8 cm x 48.3 cm |
| Input Voltage | 100-240 VAC (+/-10%), 50/60 Hz |
| Output Voltage | 24 VDC |
| Maximum Current | 20 A |
| Surge Protection | 40 kA |
| Efficiency | >= 90% |
| Isolation | 1500 VAC |
| Tariff Code | 8537101190 |
| Place of Shipment | Xiamen, China |
ABB Power Distribution Characteristics
The ABB PHARPSPEP21013 manages the physical entry of supply power into a dual-chassis arrangement. Its specified input range supports operation from 100-240 VAC at 50/60 Hz, while the output section provides 24 VDC for connected loads.
The panel supports a maximum output current of 20 A. In addition, the specified 40 kA surge protection rating addresses transient energy at the power entry interface. Electrical isolation is specified at 1500 VAC between applicable circuits.
The stated efficiency of >= 90% indicates the power conversion performance under applicable operating conditions. Actual connected load requirements must remain within the specified output voltage and current limits.
Frequently Asked Questions
Q: What input supply does the ABB PHARPSPEP21013 accept?
A: The specified input range is 100-240 VAC with a tolerance of +/-10%, operating at 50/60 Hz.
Q: What DC output is provided by the PHARPSPEP21013?
A: The panel provides a specified output voltage of 24 VDC with a maximum current rating of 20 A.
Q: Can the output load exceed 20 A?
A: No specific overload operating information was provided. Connected loads should therefore be evaluated to remain within the stated maximum current rating of 20 A.
Field Installation Guidelines
Install the ABB PHARPSPEP21013 in accordance with the applicable chassis and enclosure arrangement. Verify that the incoming supply matches the specified 100-240 VAC, 50/60 Hz input range before energizing the unit.
Disconnect and isolate external power before wiring or servicing the panel. Use conductors sized for the connected load and applicable installation standards. Maintain separation between AC input wiring and low-voltage DC output circuits where required by the enclosure design.
Connect protective earth according to the applicable system grounding arrangement. Route power conductors to minimize unnecessary coupling with signal and communication wiring. Verify output polarity and connected load requirements before applying power.
Inspect all terminal connections and mounting hardware before commissioning. Do not exceed the specified 24 VDC output and 20 A maximum current rating.
