ABB CI854K01 Profibus-DP/V1 Interface Kit

Overview

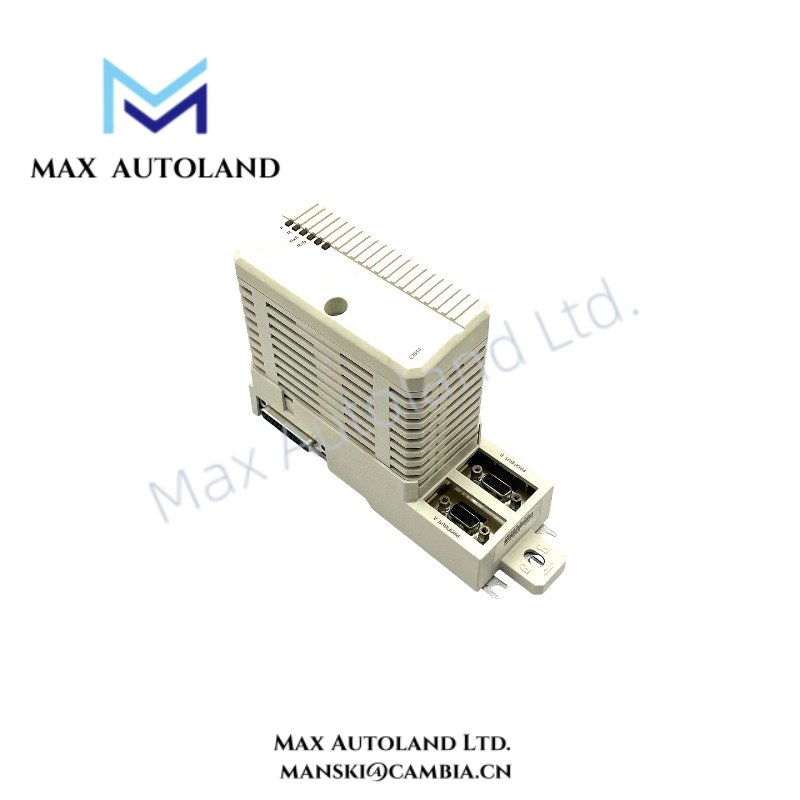

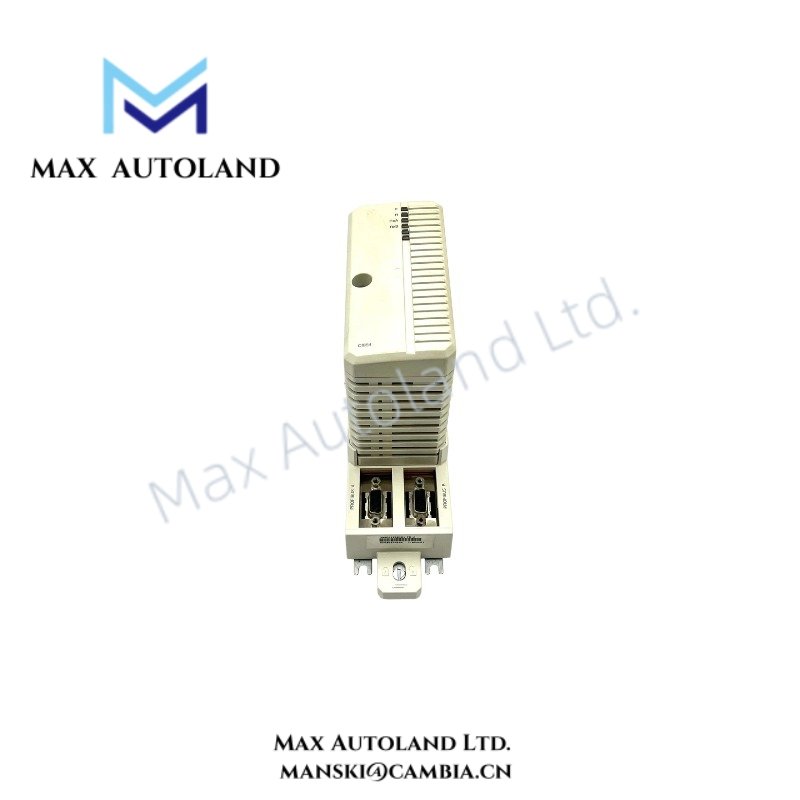

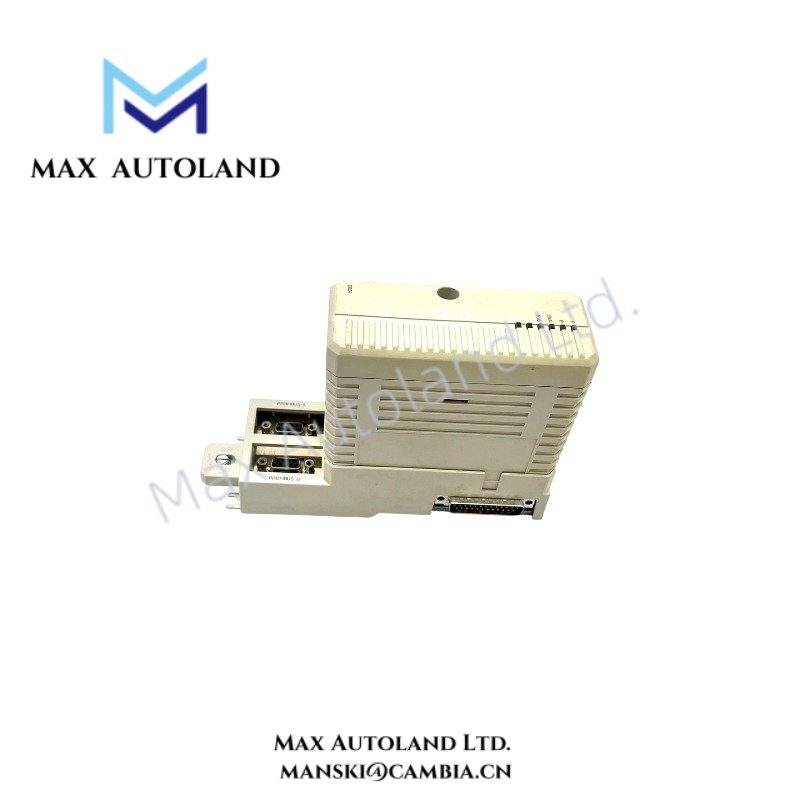

The ABB CI854K01, also cataloged as the CI854 Profibus-DP/V1 Interface, provides PROFIBUS-DP/V1 communication through the CI854 communication interface and TP854 baseplate within ABB control systems. The package contains one CI854 communication interface and one TP854 baseplate with a 60 mm width.

Hardware Specifications

PROFIBUS-DP/V1 Communication Characteristics

The CI854 provides the communication interface required for PROFIBUS-DP/V1 networks. It operates as the communication hardware between the ABB control system and connected PROFIBUS devices.

The supplied package combines the CI854 communication interface with the TP854 baseplate. Therefore, installation requires both components rather than the communication unit alone.

Because ABB specifies the CI854K01 as a spare-parts package, users should verify system compatibility before replacement. The supplied documentation identifies CI845AK01, product ID 3BSE030220R1, as the replacement unit and specifies Control Software version 3.2/1 or later for that replacement.

Frequently Asked Questions (FAQ)

Q: What components are included with ABB CI854K01?
A: The CI854K01 package includes one CI854 Communication Interface and one TP854 Baseplate with a 60 mm width.

Q: Which communication protocol does the CI854K01 support?
A: The CI854K01 is specified as a PROFIBUS-DP/V1 Interface Kit and provides PROFIBUS-DP/V1 communication functionality.

Q: Is CI854K01 the current replacement for CI854?
A: The supplied ABB data identifies CI845AK01, product ID 3BSE030220R1, as the replacement. ABB specifies Control Software version 3.2/1 or later for the replacement.

Field Installation Guidelines

• Install the TP854 baseplate securely and maintain adequate mechanical clearance around the assembly.
• Mount the CI854 communication interface on the specified TP854 baseplate before connecting the communication network.
• Use PROFIBUS-compatible cabling and connectors suitable for the installed network topology.
• Route PROFIBUS communication cables separately from high-voltage power and high-current switching conductors where practical.
• Maintain the PROFIBUS cable shield and grounding arrangement according to the system installation standard.
• Inspect connectors and cable terminations before energizing the control system.
• Confirm the installed control-system software version before replacing CI854K01 with CI845AK01.
• Do not infer operating temperature, power consumption, or electrical load values from the package dimensions; these values require the applicable ABB technical documentation.
