Overview

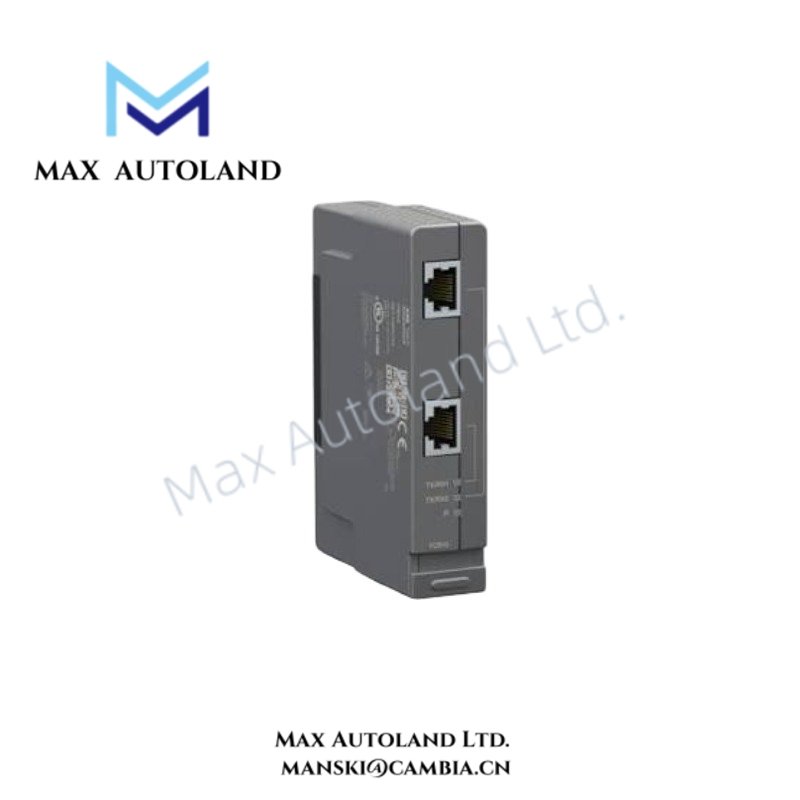

Configured for Ethernet data communication in Select I/O systems, the ABB TC810 3BSE076220R1 (TC810 Ethernet Adapter) provides direct physical and electrical execution for copper media network connections through 100 Base-TX interfaces.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | TC810 3BSE076220R1 |
| Brand | ABB |
| Product Type | Ethernet Adapter for copper media |
| Communication Protocol | Ethernet |
| Ethernet Interface | 100 Base-TX with RJ45 (8P8C) connector |
| Number of External Ports | 2 |
| Cable Type | CAT 5, WG 22 or better |
| Maximum Cable Length | 100 m |
| Origin | Sweden |
| Weight | 0.16 kg |
| Dimensions | 4.5 x 7.4 x 10 cm |
| Operating Temp | -40 deg C to +70 deg C |
| Storage Temp | -40 deg C to +85 deg C |
| Power Consumption | 0.8 W |
| 24 VDC Consumption | 60 mA typical |
| Mechanical Design | Select I/O |
ABB Industrial Control Network Characteristics
The TC810 operates as an Ethernet interface component within ABB Select I/O architectures. It provides copper-based Ethernet connectivity through dual RJ45 ports and supports 100 Base-TX communication using standard industrial Ethernet cabling practices.
The module integrates into ABB control system architectures where Ethernet communication performance, I/O density scaling, and firmware flash compatibility must be maintained across connected automation hardware. The adapter transfers network data between Select I/O components and Ethernet infrastructure while maintaining the specified electrical consumption profile.
Frequently Asked Questions
Q: Does the TC810 support fiber optic Ethernet connections directly?
A: No. The TC810 is specified as an Ethernet adapter for copper media and provides 100 Base-TX communication through RJ45 (8P8C) connectors.
Q: What cable requirements apply when installing the TC810?
A: The module requires CAT 5 cable or better, with WG 22 or equivalent conductor specification. The maximum cable length is 100 m.
Q: What environmental conditions are specified for TC810 operation?
A: The module operates from -40 deg C to +70 deg C and supports storage conditions from -40 deg C to +85 deg C.
Field Installation Guidelines
- Install the TC810 in the designated ABB Select I/O mounting position according to the system hardware configuration.
- Verify that the Ethernet cable meets CAT 5 or higher requirements before connection.
- Maintain proper cable routing separation from high-voltage power conductors and sources of electromagnetic interference.
- Ensure RJ45 connectors are fully seated and mechanically secured before system startup.
- Apply standard industrial grounding and shielding practices for Ethernet cable installation where required by the control system design.
- Confirm network addressing, communication configuration, and system firmware compatibility before integrating the module into an operational automation network.
