Overview

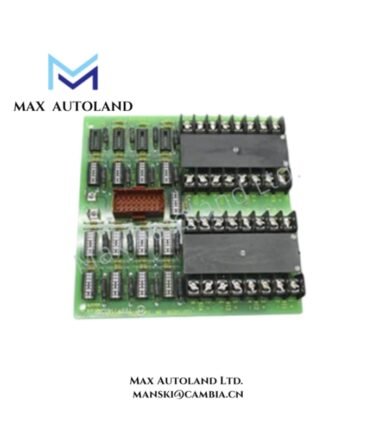

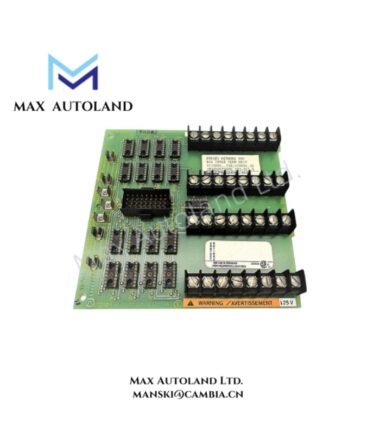

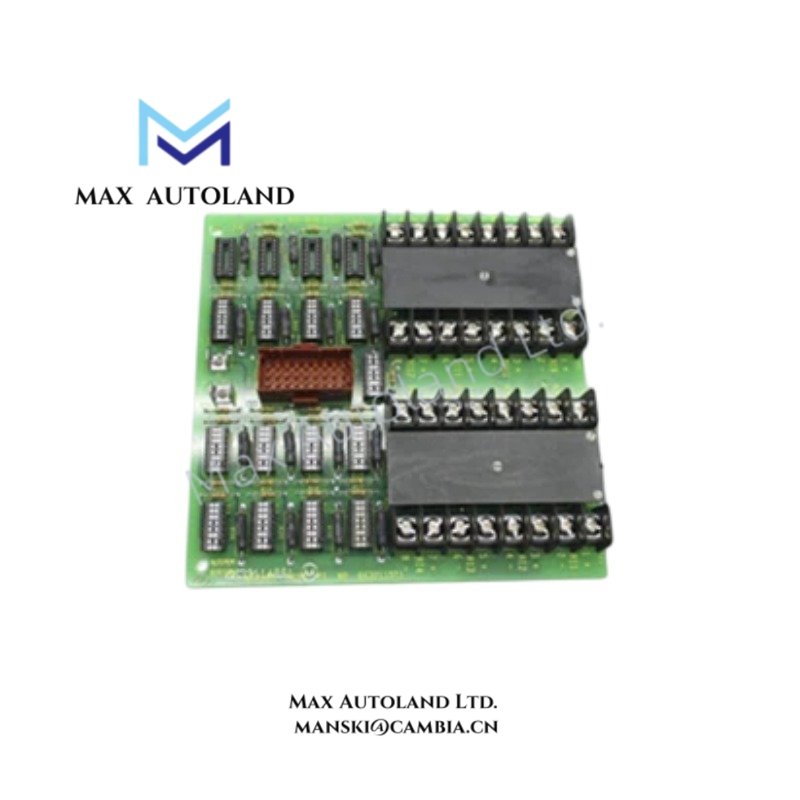

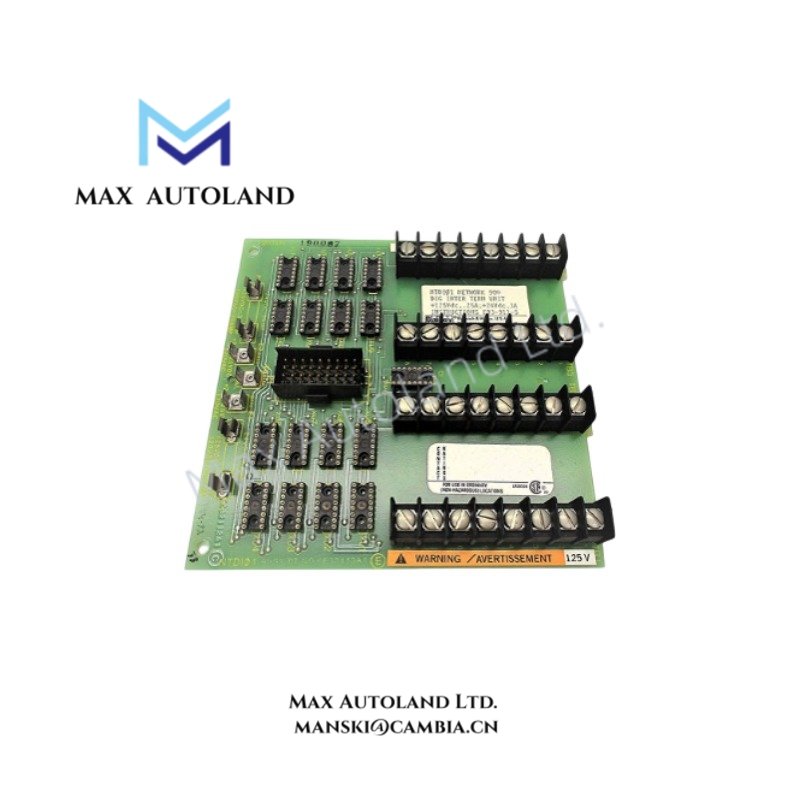

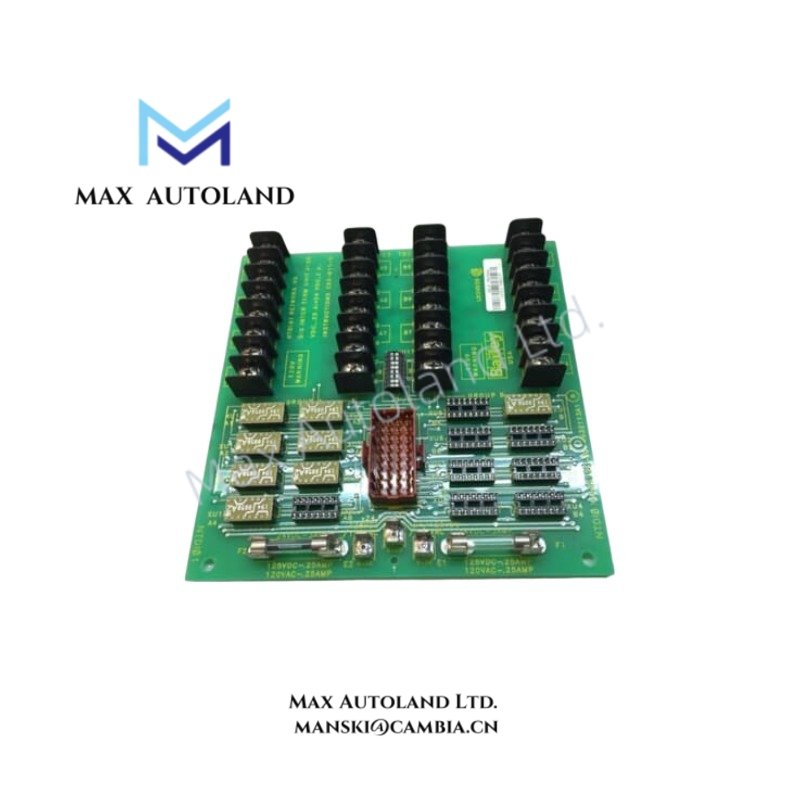

Configured for digital field signal termination in ABB Symphony Plus and INFI 90 I/O architectures, the ABB NTDI01-V5 (NTDI01-V5 Digital Input Termination Unit) provides direct physical/electrical execution of 16-channel discrete input routing between field contacts and compatible ABB digital input modules.
The unit performs passive termination, channel breakout, and field-side protection functions without embedded processing, relying on system-side DI modules for signal interpretation.
Suffix Breakdown & Model Matrix
No validated manufacturer-published suffix decomposition for NTDI01-V5 is available in this dataset. The designation is treated as a single-order hardware identifier within ABB termination unit families.
Hardware Specifications
| Parameter | Specification |
|---|---|
| ModelBrand | ABB NTDI01-V5 |
| Origin | Switzerland / ABB Global Manufacturing Network |
| OperatingTemp | 0 degC to 55 degC |
| PowerConsumption | Passive device (no internal power consumption) |
| Channels | 16 digital input channels |
| Input Types | 24 VDC / 48 VDC / 125 VDC / 120 VAC (system dependent) |
| Isolation | Galvanic isolation via system architecture |
| Mounting | DIN rail or ABB module base |
| Termination | Screw terminal blocks |
Backplane Bus Communication Velocity & I/O Density Scaling (ABB PLC/DCS Architecture)
Within ABB distributed control environments, NTDI01-V5 operates as a termination interface aligned to backplane-driven I/O scanning cycles. Signal throughput is governed by the associated digital input module and controller scan rate rather than the termination unit itself. Channel density is optimized for cabinet-level I/O scaling, reducing field wiring congestion while maintaining deterministic signal mapping into ABB Symphony Plus or INFI 90 backplane communication structures. Firmware-level interaction is not present at the termination layer, ensuring hardware-level signal pass-through consistency.
Frequently Asked Questions
Q: Does NTDI01-V5 support signal processing or filtering?
A: No. It performs only physical termination and routing. Signal conditioning is handled by the connected DI module.
Q: Can the unit operate with hot-swapping of field wiring?
A: Field wiring is not intended for hot disconnection under energized conditions unless system safety procedures isolate the circuit.
Q: Is the NTDI01-V5 dependent on firmware compatibility?
A: No embedded firmware exists. Compatibility is defined by the associated ABB I/O module and system backplane.
Field Installation Guidelines
- Ensure all field circuits are de-energized prior to termination work.
- Maintain shield continuity and ground shields at a single-point grounding scheme where applicable.
- Observe correct polarity for DC input channels when interfacing with 24 VDC or higher-rated field devices.
- Tighten screw terminals to manufacturer-specified torque limits for stable contact resistance.
- Route field wiring separately from high-voltage or high-noise conductors to minimize induced coupling.
- Verify channel mapping against the ABB I/O module addressing scheme before system commissioning.
