Overview

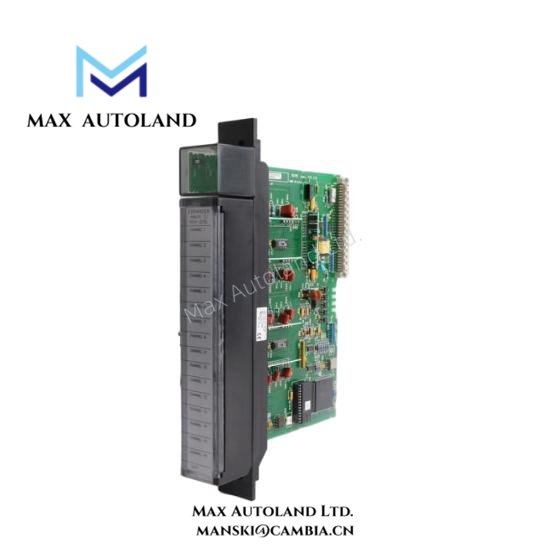

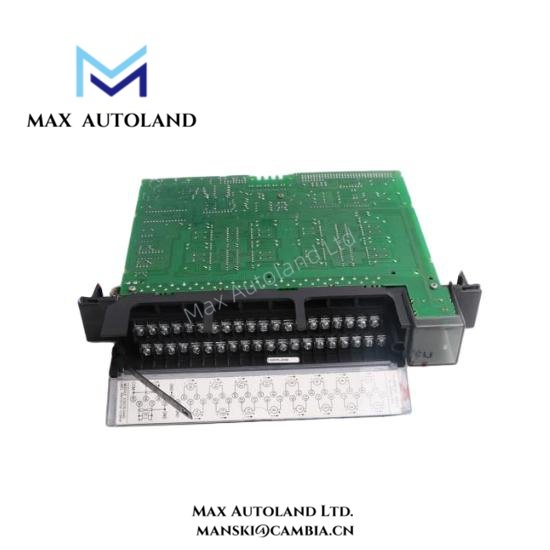

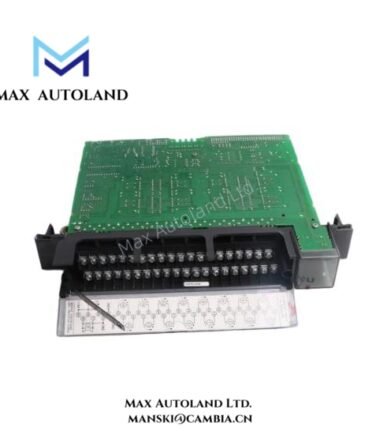

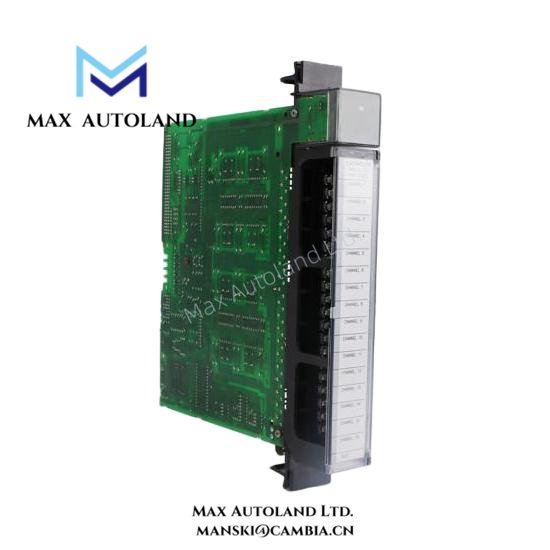

The IC697ALG440 from GE Series 90-70 expands analog input capacity efficiently for modern industrial automation systems. Moreover, it actively supports precise signal acquisition from multiple process sensors, enhancing overall system accuracy. In addition, its modular design enables engineers to integrate the module seamlessly into existing GE Series 90-70 PLC racks. Furthermore, the module delivers consistent performance and reliability under demanding manufacturing and process control conditions. Therefore, operators can maintain high productivity while reducing downtime and maintenance efforts.
Specification
| Parameter | Specification |
|---|---|
| Model | IC697ALG440 |
| Series | GE Series 90-70 |
| Module Type | Analog Input Expander Module |
| Number of Channels | 8 differential analog input channels |
| Input Types | Voltage (±10 V), Current (0–20 mA, 4–20 mA) |
| Input Impedance | Voltage: 10 MΩ, Current: 250 Ω |
| Resolution | 12-bit A/D conversion |
| Accuracy | ±0.1% of full scale at 25°C |
| Sampling/Update Rate | 10 ms per channel |
| Signal Isolation | Optically isolated from backplane and other modules |
| Common Mode Rejection Ratio (CMRR) | > 90 dB |
| Backplane Communication | Proprietary GE Series 90-70 bus interface |
| Operating Voltage | 5 V DC (supplied by PLC rack) |
| Power Consumption | 2.5 W typical, 3 W maximum |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -20°C to 85°C (-4°F to 185°F) |
| Humidity | 5% to 95% non-condensing |
| Mounting | DIN-rail compatible, fits GE Series 90-70 PLC rack |
| Dimensions (HxWxD) | 12.7 cm × 3.8 cm × 15.2 cm (5 in × 1.5 in × 6 in) |
| Weight | 0.45 kg (0.99 lbs) |
| Compliance / Standards | CE, UL, IEC 61131-2, RoHS |
| Environmental Rating | Industrial-grade, vibration and shock resistant |
| Typical Applications | Process monitoring, analog sensor expansion, batch control, predictive maintenance, factory automation |
FAQ
Q1: Is the IC697ALG440 module brand new and original?
A1: Yes, the IC697ALG440 is fully original from GE and comes factory-sealed.
Q2: How quickly can the module be shipped?
A2: Typical shipping ranges from 3 days to 2 weeks, depending on order size.
Q3: Which PLC racks is this module compatible with?
A3: The module integrates with GE Series 90-70 PLC racks and compatible control systems.
Q4: How many analog inputs does the module support?
A4: It provides 8 differential analog input channels supporting multiple signal types.
Q5: Can this module handle harsh industrial environments?
A5: Yes, it is designed for stable operation in complex manufacturing and process control conditions.
Q6: What is the return policy if there is a quality issue?
A6: Returns are supported within 30 days for any verified quality or manufacturing defect.
Reviews
There are no reviews yet.
