Overview

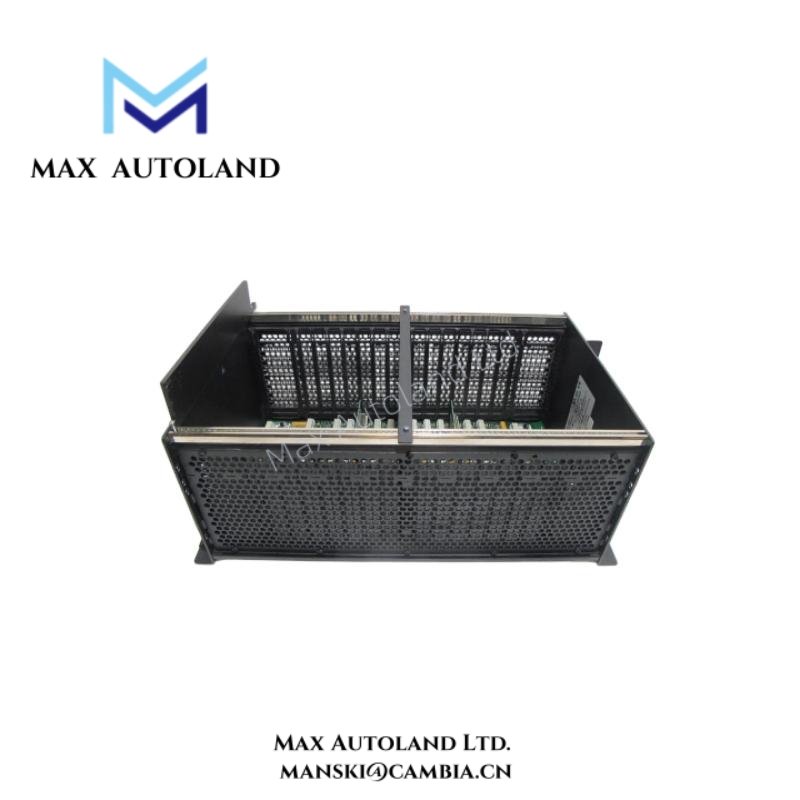

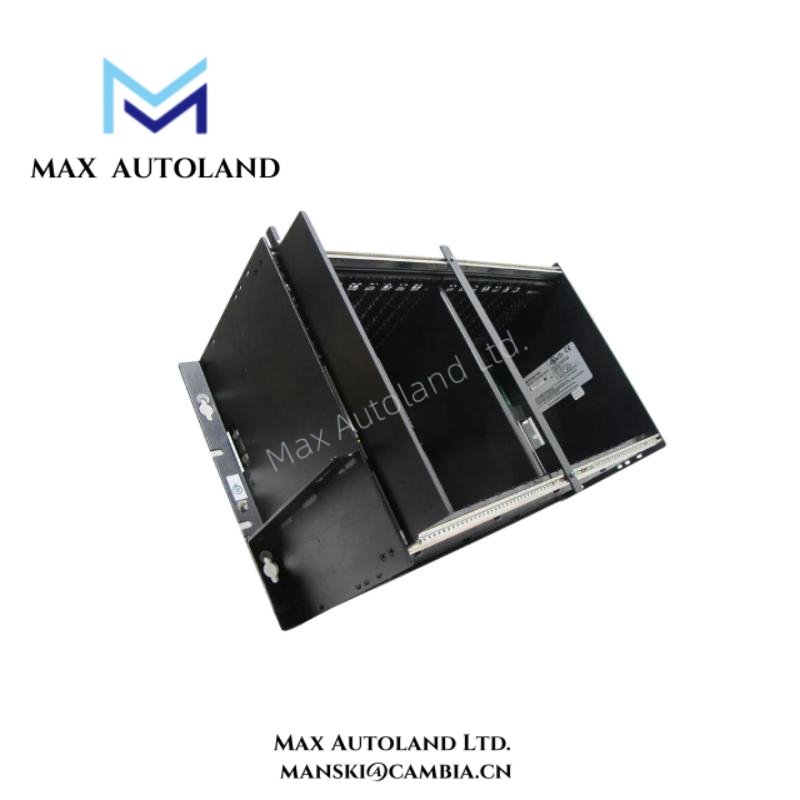

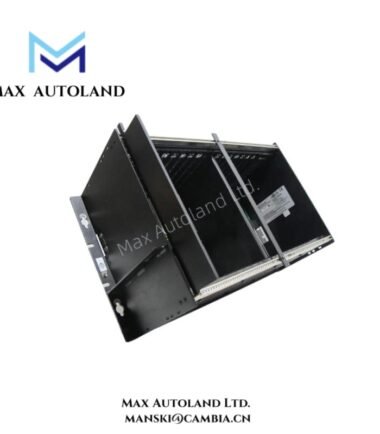

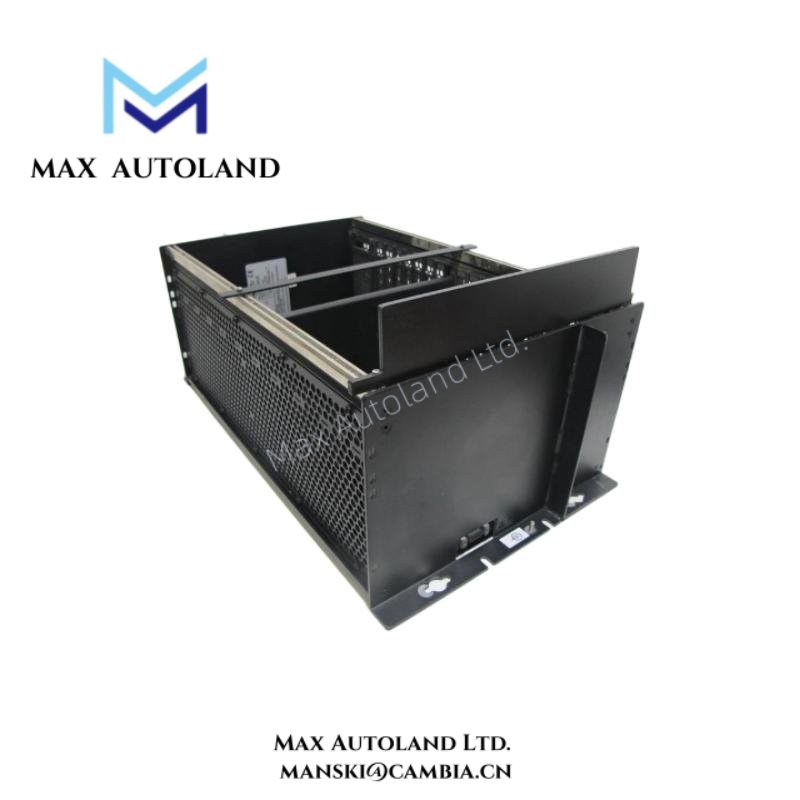

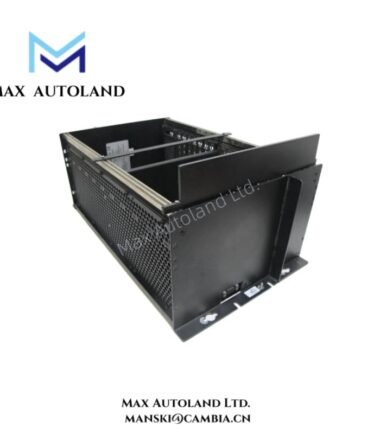

The IC697CHS770 from GE Series 90-30 provides dual redundant rear-mount rack capabilities for industrial automation systems. Moreover, it ensures uninterrupted PLC operation by allowing hot-swappable redundancy. In addition, this module supports seamless integration into existing GE Series 90-30 control systems, enhancing overall process reliability. Engineers can rely on it to maintain continuous plant operations while simplifying maintenance and expansion efforts.
Specification
| Parameter | Specification | Notes / Details |
|---|---|---|
| Model | IC697CHS770 | GE Series 90-30 Dual Redundant Rear Mount Rack |
| Series | GE 90-30 | Compatible with standard 90-30 PLC modules |
| Rack Type | Redundant Dual Rear-Mount | Ensures high availability and system uptime |
| Module Slots | Supports standard 90-30 discrete and analog modules | Up to 16 modules per redundant rack side |
| Redundancy | Dual, hot-swappable configuration | Maintains continuous PLC operation during maintenance |
| Mounting | Rear-mount installation | Fits standard GE 90-30 PLC cabinets |
| Dimensions (H × W × D) | 213 mm × 330 mm × 102 mm | Approximate; allows compact installation |
| Weight | 4.5 kg | Suitable for industrial control panels |
| Power Supply | 5 VDC / 24 VDC input options | Redundant power feed supported |
| Operating Temperature | 0°C to 60°C | Suitable for industrial environments |
| Storage Temperature | -40°C to 85°C | Withstands shipping and storage conditions |
| Relative Humidity | 5–95% (non-condensing) | Standard industrial humidity tolerance |
| Module Compatibility | IC697 series discrete and analog modules | Supports I/O expanders, input/output, and communication modules |
| Indicators | LED status indicators | Shows module activity, fault, and communication status |
| Communication Interface | Backplane bus | High-speed communication between redundant racks |
| Safety & Compliance | CE, UL listed | Meets industrial safety and EMC standards |
| Shock & Vibration | IEC 60068-2 standards | Withstands standard industrial shock and vibration |
| MTBF | >100,000 hours | Long-term reliability in continuous operations |
| Mounting Orientation | Vertical or horizontal rear mount | Flexible installation in PLC cabinets |
| Cooling | Convection-cooled | No additional fan required under normal conditions |
FAQ
Q1: Is the IC697CHS770 compatible with standard GE Series 90-30 racks?
A1: Yes, it supports all standard GE 90-30 discrete and analog modules with rear-mount installation.
Q2: Can the redundant modules be replaced without shutting down the system?
A2: Absolutely, the dual redundancy design allows hot-swappable replacement without downtime.
Q3: What is the operating temperature range for this module?
A3: The module operates safely between 0°C and 60°C in typical industrial environments.
Q4: How quickly can I receive this module after ordering?
A4: We ship within 3–14 days depending on stock availability and order size.
Q5: Does the module support integration with new and existing PLC racks?
A5: Yes, it seamlessly integrates with both new and existing GE Series 90-30 PLC systems.
Reviews
There are no reviews yet.
