Overview

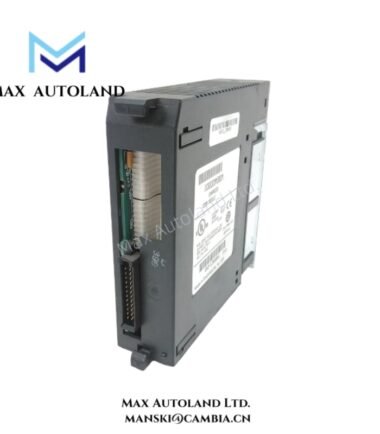

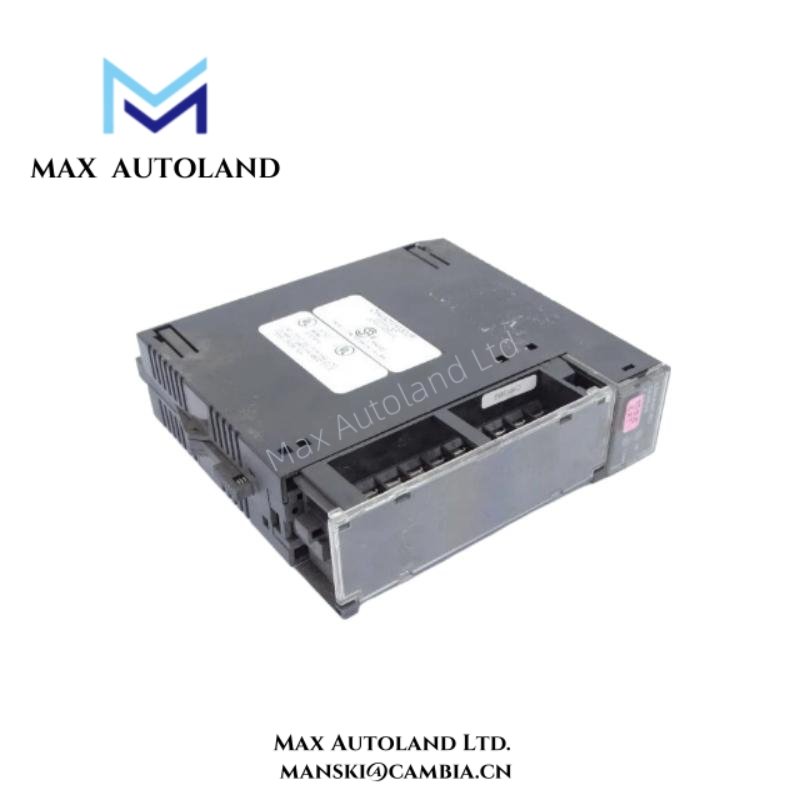

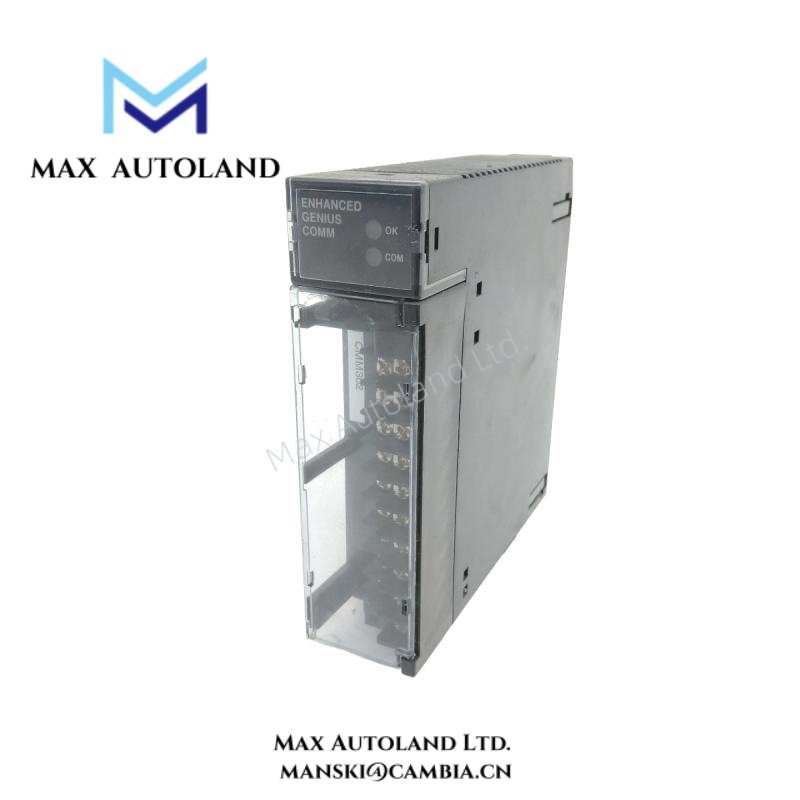

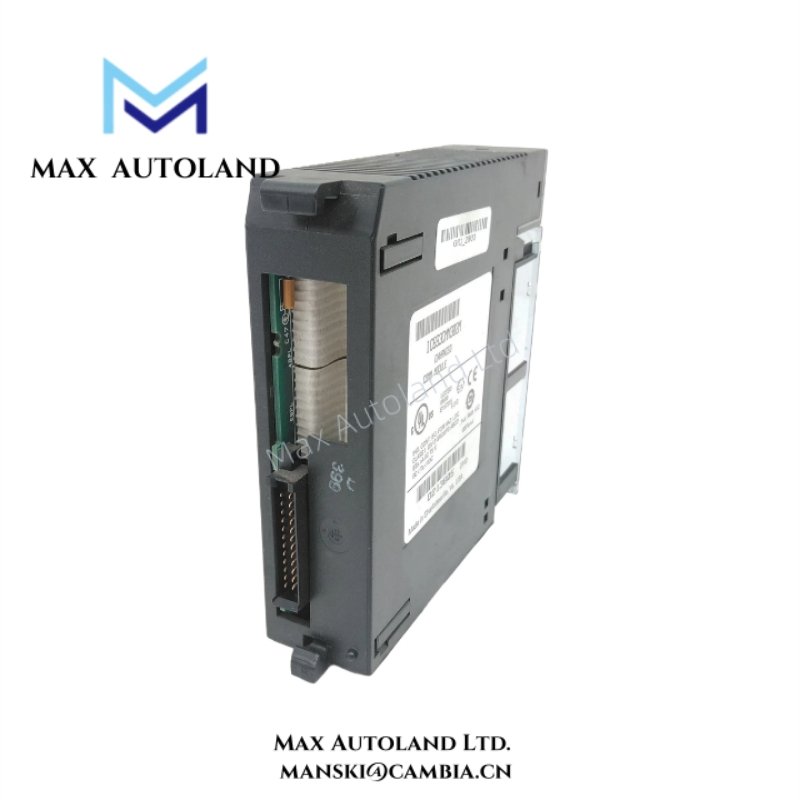

The GE IC693CMM302 Enhanced Genius Communications Module enables high-speed network connectivity for Series 90-30 PLC systems.
It allows seamless communication between Genius processors and peripheral devices while maintaining system reliability.
Moreover, the module supports both standard and extended Genius protocols, ensuring broad compatibility with automation equipment.
In addition, IC693CMM302 provides integrated diagnostic functions, simplifying network troubleshooting and reducing system downtime.
Therefore, engineers rely on this module to enhance data throughput, system monitoring, and process control efficiency.
Specification
| Category | Parameter | Specification |
|---|---|---|
| Manufacturer | Brand | GE Automation |
| Model | Product Number | IC693CMM302 |
| Module Type | Function | Enhanced Genius Communications Module |
| System Compatibility | Controller | Series 90-30 PLC |
| Network Type | Protocol | Genius protocol, backward-compatible |
| Network Ports | Maximum Devices | Up to 32 Genius devices per segment |
| Data Rate | Maximum | 57.6 kbps per channel |
| Isolation | Electrical | Optically isolated, 1500 V rms |
| Diagnostics | Indicators | Status LEDs for network traffic, fault, and power |
| Backplane | Connection | Series 90-30 backplane interface |
| Power Requirements | Voltage | 5 Vdc from backplane |
| Power Requirements | Consumption | 2 W typical |
| Mechanical | Mounting | Rack-mounted, Series 90-30 backplane |
| Mechanical | Dimensions | 12.7 cm × 3.8 cm × 14.6 cm |
| Mechanical | Weight | 0.45 kg (approx. 1 lb) |
| Environmental | Operating Temperature | 0–60 °C |
| Environmental | Storage Temperature | –40–85 °C |
| Environmental | Humidity | 5–95% non-condensing |
| Certifications | Standards | UL, CE, CSA approved |
| Reliability | MTBF | >100,000 hours at rated load |
FAQ
A1: It supports up to 32 Genius devices on a single network segment.
Q2: Is the module compatible with older Series 90-30 controllers?
A2: Yes, it maintains backward compatibility with older Series 90-30 Genius systems.
Q3: What diagnostic features are included?
A3: The module provides LEDs indicating network traffic, faults, and power status.
Q4: Can it operate in harsh industrial environments?
A4: Yes, it supports 0–60 °C operating temperature and 5–95% non-condensing humidity.
Q5: What is the data transfer rate of the module?
A5: The maximum data rate is 57.6 kbps per communication channel.
