Overview

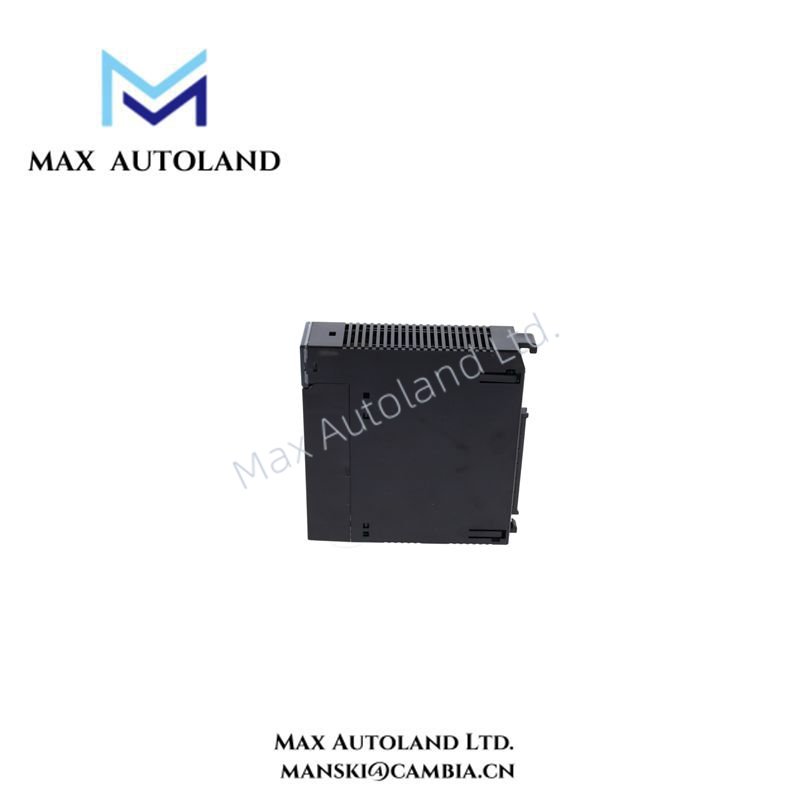

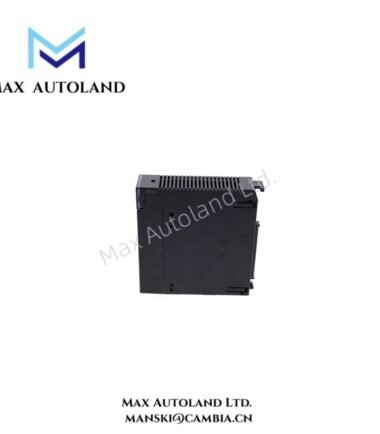

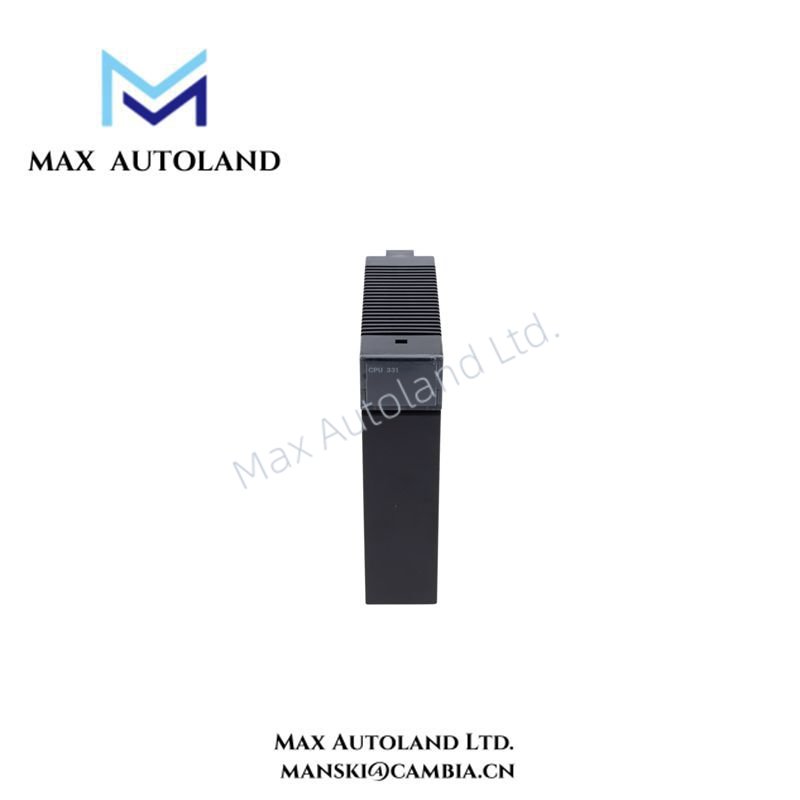

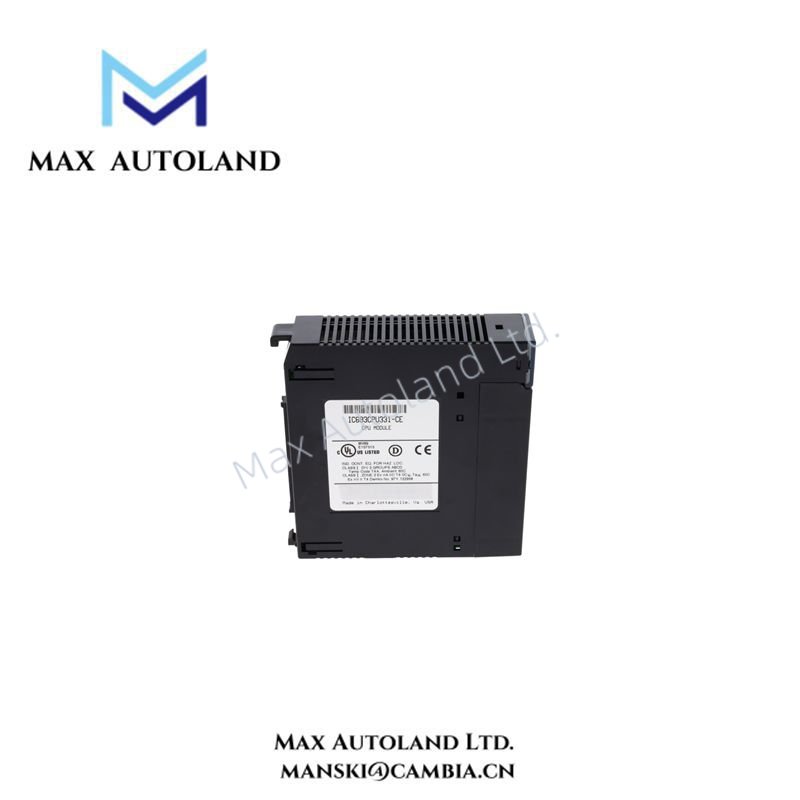

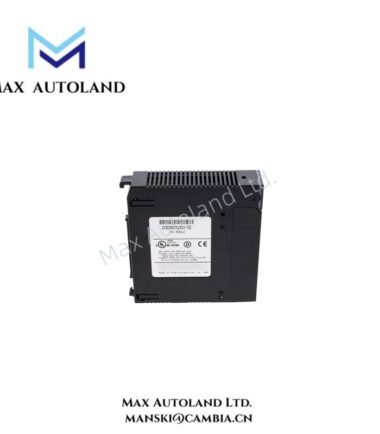

Engineers appreciate the flexibility of the IC693CPU331, since it integrates memory, communications, and discrete I/O into one module. Moreover, the module’s reliable design reduces wiring requirements and streamlines installation within automation cabinets.
Specification
| CPU Type | Single slot CPU module |
| Total Baseplates per System | 5(1 CPU haseplate+4 expansion and/or remote) |
| Laad Required from Power Supply | 350 millamps from+5VDC supply |
| Processor Speed | 10 MegaHertz |
| Processor Type | 80188 |
| Operating Temperature | 0 to 60 degrees C(32 to 140 degrees F)ambien |
| Typical Scan Rate | 0.4 milliseconds per IK oflogic (boolean contacts) |
| User Program Memory(maximum) | 16K Bytes |
| Discrete Input Poins-%L | 512 |
| Discrete Output Points-%Q | 512 |
| Discrete Global Memory-%G | 1280 bits |
| Internal Coils-%M | 1024 bits |
| Output (Temporary)Coils-%T | 256 bits |
| System Status References-%S | 128 bits (%S,%SA,%SB,%SC-32 bits each) |
| Register Memory-%R | 2048 words |
| Analog Inputs-%AI | 128words |
| Analog Outputs-%AQ | 64 words |
| System Registers fLur refeene nable viening cnly canst b rnfrenedl in uscr lagie prognm) | 16 words(%SR) |
| Timers/Counlers | 680 |
| Shift Registers | yes |
| Built-in Ports | 1(uses connctor on PLC power supply).Supports SNP/SNP-Xslave protocolsRequires CMM module for SNP/SNP-Xmaster,CCM,or RTU slave suppot; PCM module for RTU master support. |
| Communications | LAN-Supports mmultidrop.Also supports Ethermet, FIP,Profibus,GBC,GCM,GCM+option modules. |
FAQ
A: Yes, all our modules are 100% brand-new and original from the manufacturer.
Q: Do you have stock of the IC693CPU331?
A: Yes, we keep this model in stock and can ship within 3 days to 2 weeks depending on order size.
Q: What shipping methods are available?
A: We commonly use DHL, FedEx, or UPS to ensure fast and safe delivery worldwide.
Q: Does the IC693CPU331 include battery backup?
A: Yes, it comes with a lithium backup battery to protect stored programs and data.
Q: What is the maximum I/O capacity supported by this CPU module?
A: It supports up to 1,280 I/O points when expanded with additional Series 90-30 modules.
