Overview
Specification
| Parameter | Specification | Notes |
|---|---|---|

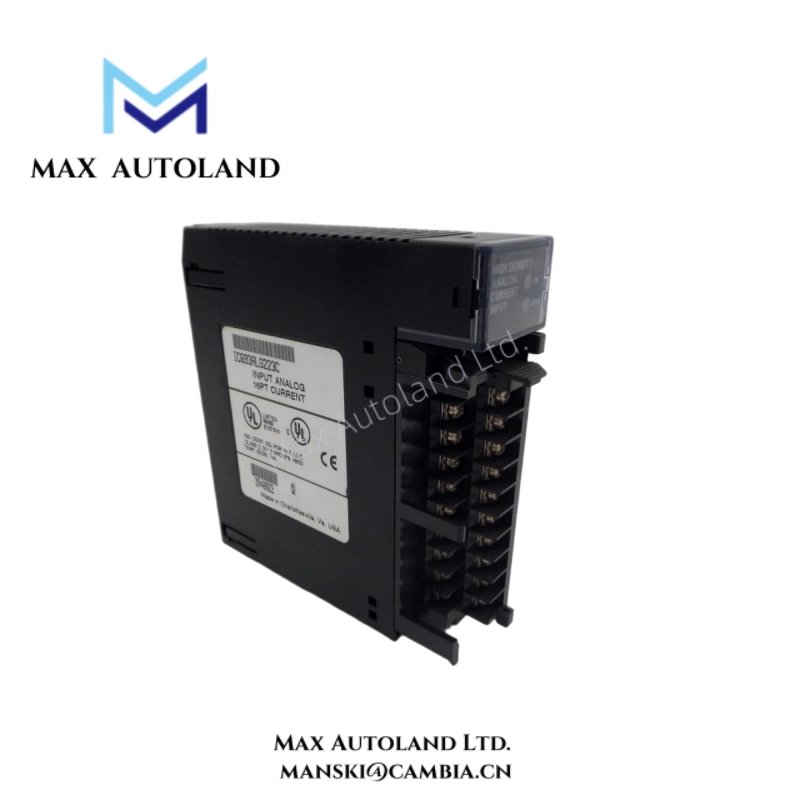

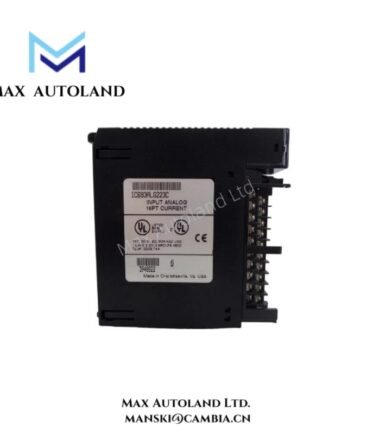

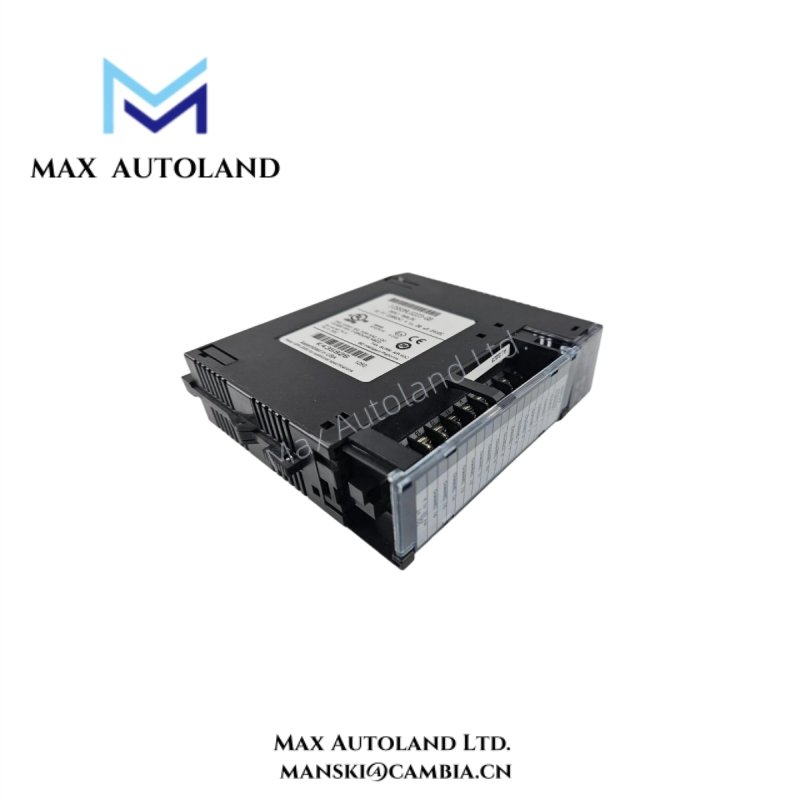

| Model | IC693ALG223 | GE Series 90-30 Analog Input Module |
| Manufacturer | GE | General Electric |
| Series | Series 90-30 | Legacy PLC automation series |
| Module Type | Analog Input | 16-channel current input module |
| Input Channels | 16 | Independent channels, current input |
| Input Range | 0–20 mA, 4–20 mA | Industry standard signals |
| Resolution | 12-bit | High-precision analog conversion |
| Accuracy | ±0.25% of full scale | Ensures precise measurement |
| Input Impedance | 50 Ω | Standard for current input modules |
| Power Requirements | 5 VDC @ 250 mA | Typical operation |
| Energy Storage | Internal capacitor | Maintains configuration during power loss |
| Dimensions (HxWxD) | 130 mm × 30 mm × 95 mm | Fits standard Series 90-30 racks |
| Weight | 0.36 kg | Lightweight for easy mounting |
| Mounting | DIN rail / Rack slot | Compatible with Series 90-30 backplane |
| Operating Temperature | 0–60 °C | Industrial operating range |
| Storage Temperature | -20–70 °C | For transportation or spare storage |
| Humidity | 5–95% RH non-condensing | Suitable for industrial environments |
| LED Indicators | 2 LEDs | Status, Fault |
| Isolation Voltage | 500 VDC | Between input channels and internal electronics |
| Compliance | CE, UL | Meets international safety standards |
| Diagnostics | Online diagnostics | Channel faults, signal verification |
| Warranty | 1 year | Manufacturer standard warranty |
FAQ
Q1: Is the GE IC693ALG223 brand new?
A1: Yes, the IC693ALG223 is fully new, factory-sealed, and original.
Q2: How long will shipping take?
A2: Shipping typically ranges from 3 days to 2 weeks depending on order size, using DHL or similar carriers.
Q3: What if the module has quality issues?
A3: We support returns within 30 days for any genuine quality problem.
Q4: How many channels does this analog input module support?
A4: The IC693ALG223 supports 16 independent current input channels.
Q5: What are the module dimensions and weight?
A5: The IC693ALG223 measures 130 mm × 30 mm × 95 mm and weighs 0.36 kg, ideal for standard Series 90-30 racks.
Reviews
There are no reviews yet.
