Overview

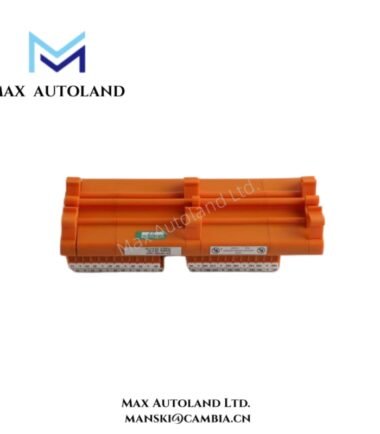

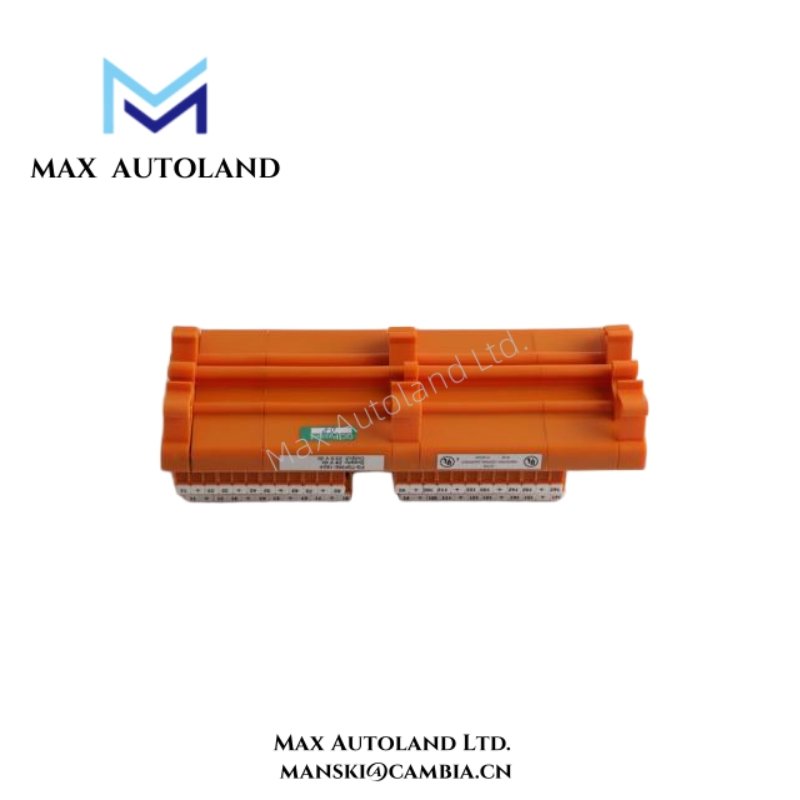

The Honeywell FS-TSFIRE-1624 is a highly reliable field termination assembly that directly interfaces digital fire detectors with Safety Manager and industrial fire-safety control systems. It actively supports up to 16 fire-detector inputs, converting field signals into a format fully compatible with central fire or safety controllers. Moreover, its rugged construction withstands harsh industrial environments, including hazardous areas and fluctuating temperatures, ensuring continuous performance.
In addition, the FS-TSFIRE-1624 facilitates quick installation and simplified maintenance thanks to its clearly labeled terminals and modular design. Therefore, system integrators can confidently deploy it across fire protection, detection, and alarm systems in various facilities, enhancing both safety and operational reliability. Furthermore, its durable design reduces potential downtime, providing long-term service confidence for critical safety applications.
Specification
| Parameter | Specification |
|---|---|
| Model | FS-TSFIRE-1624 |
| Brand | Honeywell |
| Series | FSC Series |
| Module Type | Field Termination Assembly |
| Input Channels | 16 digital fire-detector inputs |
| Input Voltage Range | 24 VDC nominal (compatible with standard fire detectors) |
| Current Rating per Channel | Max. 0.5 A per input channel |
| Connection Type | Screw terminals for field wiring |
| Wire Size Range | 0.5–2.5 mm² (20–14 AWG) |
| Signal Compatibility | Converts field detector signals to Safety Manager format |
| Operating Temperature | -20°C to +60°C (-4°F to 140°F) |
| Storage Temperature | -40°C to +85°C (-40°F to 185°F) |
| Relative Humidity | 5–95% non-condensing |
| Mounting Options | DIN rail or panel mounting |
| Housing Material | Industrial-grade flame-retardant polymer |
| Ingress Protection | IP20 |
| Vibration Resistance | 5–9 Hz, 0.5 mm amplitude; 9–150 Hz, 1 g acceleration |
| Shock Resistance | 15 g, 11 ms duration |
| Certifications | UL, CE, FM (dependent on region) |
| Weight | Approx. 0.8 kg |
| Dimensions | 160 mm × 100 mm × 50 mm (L×W×H) |
| Safety Compliance | Meets NFPA and IEC standards for fire detection systems |
| Service Life | 10+ years typical under industrial operating conditions |
FAQ
Q1: How many detector channels does FS-TSFIRE-1624 support?
A1: It supports up to 16 fire-detector input channels.
Q2: Can it be installed in hazardous industrial areas?
A2: Yes, it has a rugged design suitable for harsh and hazardous environments.
Q3: What mounting options are available?
A3: It supports both DIN rail and panel mounting.
Q4: Does it require special tools for installation?
A4: No, standard screwdrivers can be used for its terminal connections.
Q5: Is it compatible with Honeywell Safety Manager systems?
A5: Yes, it converts detector signals into formats fully compatible with Safety Manager systems.
