Overview

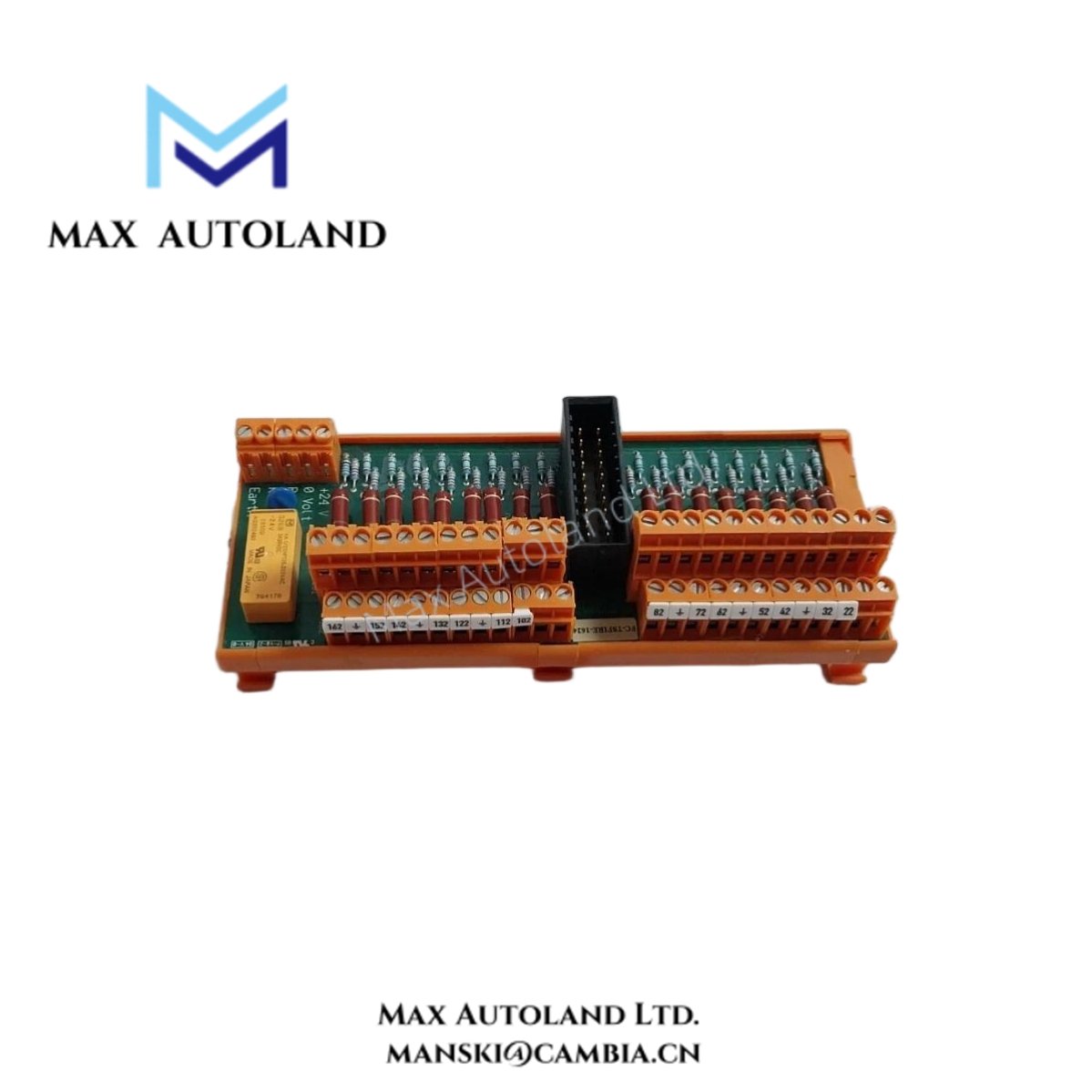

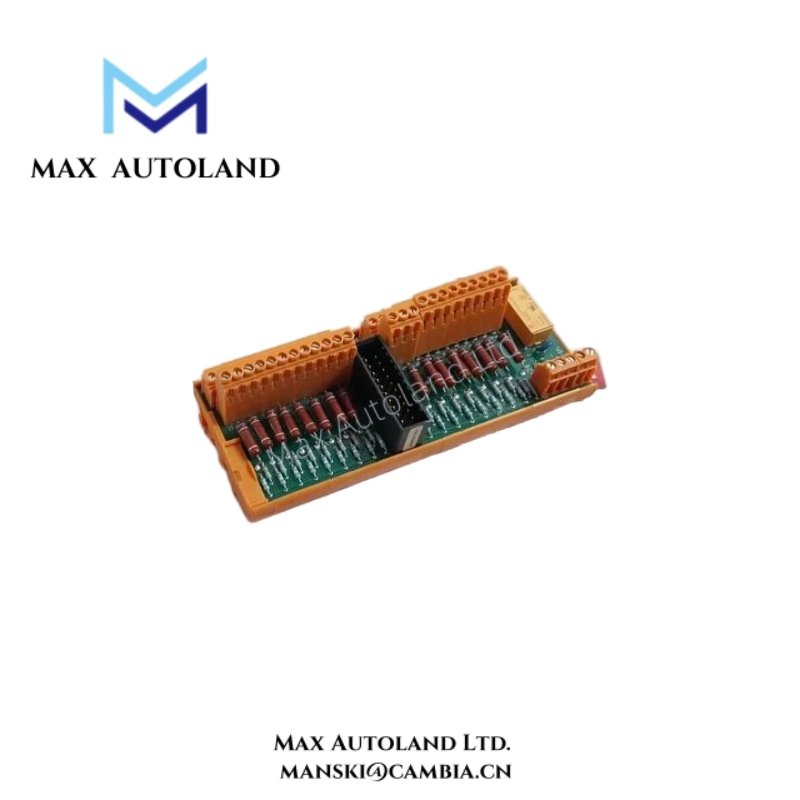

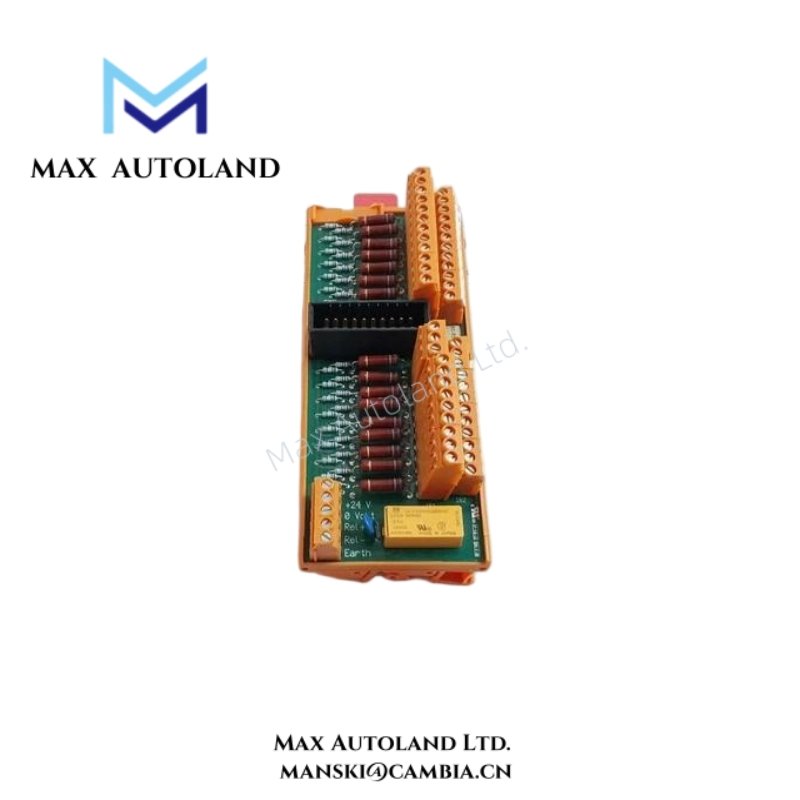

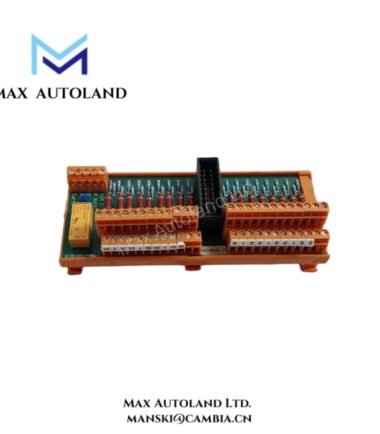

The Honeywell FC‑TSFIRE‑1624 is a field termination assembly module that interfaces digital fire detectors directly with a Safety Manager or industrial fire‑safety control system. In addition, it provides a reliable and safe connection for up to 16 fire‑detector inputs, converting field signals efficiently into a format compatible with central fire or safety controllers. Moreover, its rugged construction and certified design enhance performance in demanding industrial environments, including hazardous areas. Therefore, system integrators can confidently deploy the FC‑TSFIRE‑1624, ensuring dependable fire protection, detection, and alarm functionality across a wide range of facilities.
Specification
| Specification / Parameter | Details |
|---|---|
| Model / Part Number | FC‑TSFIRE‑1624 |
| Manufacturer | Honeywell |
| Module Type | Fire Detector Field Termination Assembly (FTA) |
| Number of Input Channels | 16 digital detector inputs |
| Input (Supply) Voltage | 24 V DC nominal |
| Typical Detector Voltage (with EOL resistor) | ≈ 20.5 V DC (at 24 V DC supply) |
| Short‑Circuit / Loop Current | ~35 mA (at 24 V DC supply) |
| Relay Output Voltage Range | 17–39 V DC (for global reset function) |
| Relay Output Current | Typically 8.5 mA at 24 V DC |
| Wire Termination | Screw terminals, max wire diameter 2.5 mm², strip length 7 mm, torque 0.5 Nm |
| Field Wiring Resistance Limits | Field wire resistance < 100 Ω |
| Supported Environments | Class I, Division 2 hazardous locations compliant |
| Mounting | DIN‑rail (TS32 / TS35 × 7.5 mm) snap‑in mounting |
| Operating Temperature | –40 °C to +70 °C |
| Module Dimensions (L×W×H) | 170 × 70 × 64 mm (approximately) |
| Typical Load Current (24 V ext) | Up to 570 mA (external supply) |
| No‑Load Current Draw | Approx. 11 mA at 24 V DC ext. |
FAQ
Q1: What is the main function of the FC‑TSFIRE‑1624?
A1: It interfaces up to 16 fire detectors to a fire-safety control system, converting field signals safely and reliably.
Q2: What voltage does the module require?
A2: It requires a 24 V DC supply for detector power and field signal transmission.
Q3: Can it be used in hazardous locations?
A3: Yes, the module complies with Class I, Division 2 requirements, enabling safe use in hazardous zones.
Q4: How are detectors connected to the module?
A4: Detectors connect via screw terminals with up to 2.5 mm² wire; wiring is simplified with DIN‑rail mounting.
Q5: Does the module support global reset for all detectors?
A5: Yes, a built-in relay allows global reset of all connected detectors via external control input.
