Overview

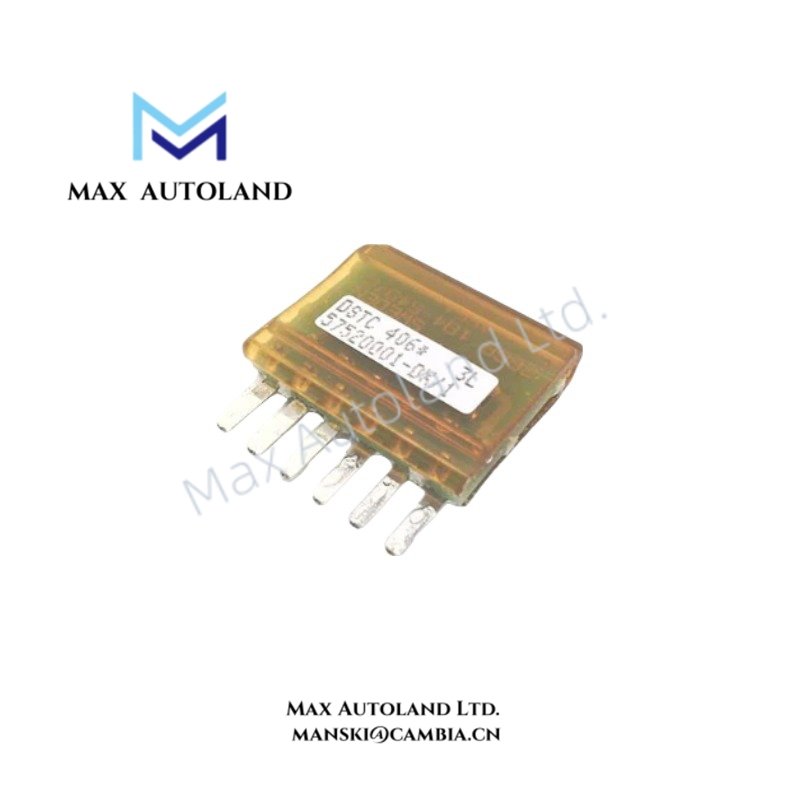

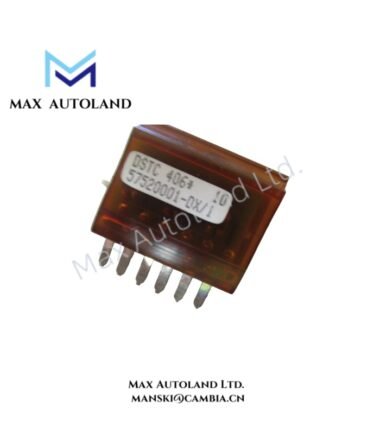

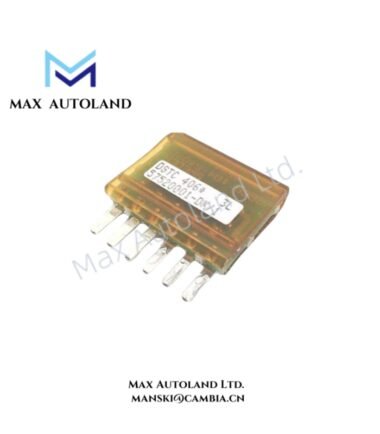

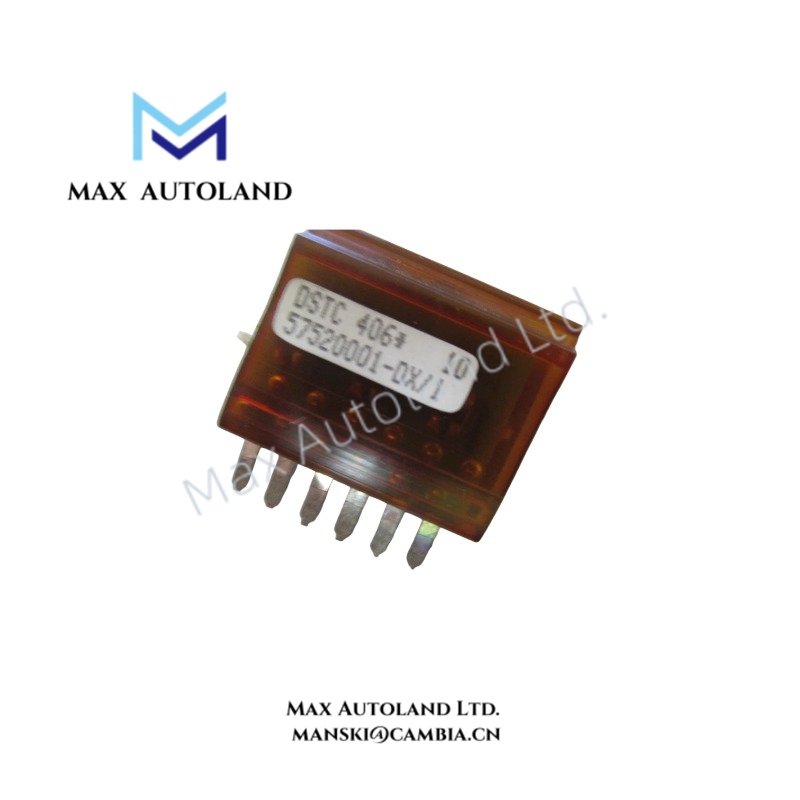

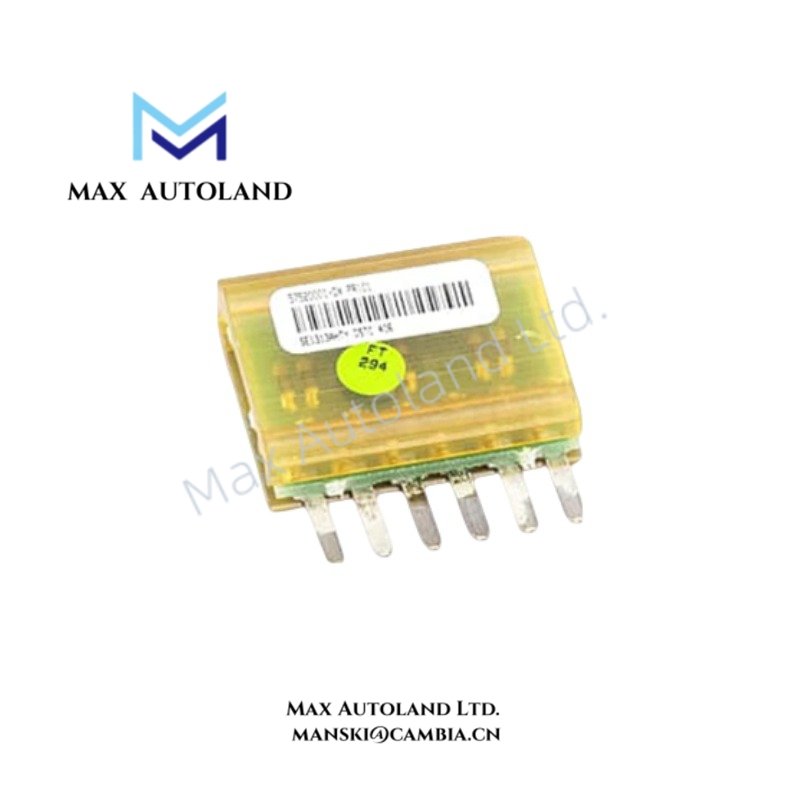

ABB DSTC 406 Terminating Unit
Configured for signal line termination in the SDB to LDB modem communication path, the ABB 57520001-DX (DSTC 406 Terminating Unit) provides passive electrical termination for the DSTC 452 modem connection within ABB Advant Master Process Control System platforms.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | DSTC 406 |
| Ordering Number | 57520001-DX |
| Brand | ABB |
| Product Type | Module Termination Unit |
| Origin | Sweden |
| Weight | 0.025 kg |
| Dimensions | 272 mm depth x 35 mm height x 60 mm width |
| Power Consumption | Passive device, no external power consumption |
| Application | Passive termination for DSTC 452 modem communication |
| Communication Interface | SDB to LDB modem connection termination |
| Mounting Type | Industrial control system module termination component |
| RoHS Status | Exempted according to EU Directive 2011/65/EU Article 2(4)(c), (e), (f), and (j) |
Industrial Control Network Termination Function
The ABB DSTC 406 performs passive termination on the SDB side of the modem communication link. It operates together with the DSTC 452 modem, where the modem transfers communication between the SDB and LDB sections of the system.
Moreover, the termination unit maintains the required electrical characteristics at the end point of the communication line. The system requires one DSTC 406 unit for each modem configured as a final communication node.
The DSTC 406 does not process signals or require external power. Instead, it provides a fixed passive termination path that supports stable communication behavior within ABB Advant Master Process Control System installations.
Frequently Asked Questions
Q: What is the main function of the ABB DSTC 406?
A: The DSTC 406 provides passive termination on the SDB side of a DSTC 452 modem communication connection. It terminates the communication line when the modem operates as the final node.
Q: Does the DSTC 406 require an external power supply?
A: No. The DSTC 406 is a passive termination unit and does not consume electrical power from the control system.
Q: Can one DSTC 406 support multiple DSTC 452 modems?
A: No. The installation requires one DSTC 406 termination unit per final DSTC 452 modem communication connection.
Field Installation Guidelines
- Install the DSTC 406 on the SDB side of the DSTC 452 modem connection according to the ABB Advant Master system configuration requirements.
- Verify that the unit is installed at the final modem position where communication line termination is required.
- Maintain correct cable routing between SDB and LDB communication interfaces to reduce unwanted electrical interference.
- Ensure that communication cable shielding and grounding follow the control system installation standards.
- Inspect mechanical mounting and terminal connections before system commissioning.
- Confirm the modem configuration identifies the connected DSTC 406 as the final termination point.
